No. 313,694 – Joiner’s Plane (William Tidgewell) (1885)

[paiddownloads id=”387″]313694

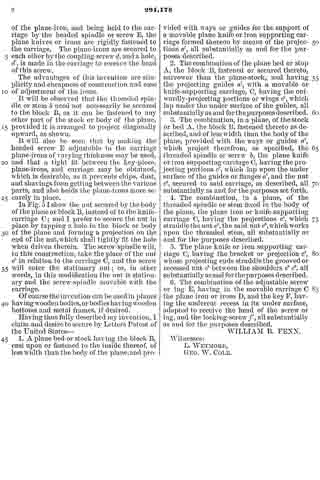

UNITED STATES PATENT OFFICE.

_________________

WILLIAM TIDGEWELL, OF MIDDLETOWN, ASSIGNOR TO THE MERIDEN MALLEABLE IRON COMPANY, OF MERIDEN, CONNECTICUT.

JOINER’S PLANE.

_________________

SPECIFICATION forming part of Letters Patent No. 313,694, dated March 10, 1885.
Application filed February 2, 1885. (No model.)

_________________

To all whom it may concern:

Be it known that I, WILLIAM TIDGEWELL, of Middletown, in the county ot’ Midellesex and State of Connecticut, have invented a new Improvement in Joiners’ Planes; and I do hereby declare the following, when taken in connection with accompanying drawings and the letters of reference marked thereon, to be a full, clear, and exact description of the same, and which said drawings constitute part of this specification, and represent, in —

Figure 1, a longitudinal vertical section; Fig. 2, an underside view of the stock; Fig. 3, a transverse section through the stock, looking on the face ofthe bearing D.

This invention relates to an improvement in that class of joiners’ planes in which the stock is made from cast metal, and in which the cutter is made adjustable by mechanical appliances. In the usual construction of these planes the cutter takes a bearing upon the stock at the mouth, the bearing extending up a considerable distance on the back of the cutter.

This bearing-surface is usually smooth and the cutter fits close upon it. The result of this bearing is to create a very great friction between it and the cutter, owing to the pressure which is brought upon the cutter at the bearing in the clamping operation, so that when the cutter is so clamped a very considerable force is necessary to be applied to the adjusting device to move the cutter.

The object of my invention is to diminish this friction while still retaining practically the same extent of bearing; and it consists in grooving the face of the bearing so as to form a series of ribs upon which the cutter will rest, the bearing-surface being reduced to the extent of the area of the spaces between the ribs, as more fully hereinafter described.

A represents the stock, made from cast-iron, and provided with the usual handle, B. C is the mouth; D, the bearing directly in rear and above the month, upon which the lower portion of the cutter E rests; F, the clamp applied in the usual manner for binding the cutter upon its seat D; G, the movable bed to which the cutter is also clamped; H, the adjusting device applied to the bed or slide G, and by which said slide and cutter are moved to adjust the cutter.

The clamping device, bed, and adjusting device may be any of the known constructions.

The face of the bearing D, instead of being made flat, is corrugated, as seen in Fig. 3, so as to form a series of ribs, a a, more or less in number, these ribs forming a series of narrow bearings, upon which the cutter will rest and its proper position be insured, yet over which it will easily move under the action of the adjusting devices.

As here represented, the area of all the ribs amounts to about one-third of the area of the bearing. The friction therefore is reduced accordingly; but still the same firm support is given to the cutter. These grooves should terminate near the bottom surface of the stock, or at about where the bevel at the edge ofthe cutter begins, as seen in Figs. 1 and 3. These grooves may be formed in casting, the ribs subsequently dressed to finish the bearing for the cutter.

In the illustration I have shown a construction of plane which permits of but a short bearing for the lower end of the cutter; but in other well-known constructions the extent of bearing is very much greater, even to forming the entire support for the cutter. The advantages of my invention increase as the extent of the bearing increases.

I claim —

In a joiner’s plane in which the stock is of cast metal, and in which the cutter is made adjustable, the bearing, D in the rear of the mouth, and which supports the cutter, constructed to form a series of ribs upon its face, and upon which ribs the cutter will rest, substantially as described.

WILLIAM TIDGEWELL.

Witnesses:
GEO. W. SMITH,
ELI I. MERRIMAN.

No. 312,229 – Plane (William Tidgewell) (1885)

[paiddownloads id=”383″]312229

UNITED STATES PATENT OFFICE.

_________________

WILLIAM TIDGETWELL, OF MIDDLETOWN, ASSIGNOR TO THE MERIDEN MALLEABLE IRON COMPANY, OF MERIDEN, CONNECTICUT.

PLANE.

_________________

SPECIFICATION forming part of Letters Patent No. 312,229, dated February 10, 1885.
Application filed December 26, 1884. (No model.)

_________________

To all whom it may concern:

Be it known that I, WILLIAM TIDGEWELL, of Middletown, in the county of Middlesex and State of Connecticut, have invented a new Improvement in Planes; and I do hereby declare the following, when taken in connection with accompanying drawings and the letters of reference marked thereon, to be a full, clear, and exact description of the same, and which said drawings constitute part of this specification, and represent, in —

Figure 1, a top view with the cutter and its clamp removed; Fig. 2, a longitudinal central section showing the cutter in place; Fig.
3, a transverse section on line x x of Fig. 2; Fig. 4, a transverse section on line y y of Fig. 2; Fig.
5, a transverse section on line z z of Fig. 2; Fig. 6, a side view of the screw and nut detached from the stock.

This invention relates to an improvement in that class of planes for joiners’ use in which the stock is made from metal, and to which an adjusting-screw is applied to set the cutter, the object of the invention being such a construction of the stock and arrangement of the adjusting-screw that the stock may be cast complete and avoid the mechanical labor usually required in fitting the stock for the adjusting-screw, and it consists in a cast-metal stock constructed with a bearing for the cutter in rear of the mouth, the said bearing constructed with a central recess opening upward to form one seat for the screw, the second seat for the point of the screw being between said bearing and the mouth, with vertical guides for the nut between the two seats of the screw, combined with the screw and nut arranged in said seats, as more fully hereinafter described.

A represents the stock, which in general out line may be of common or usual construction; B, the bolt, through which the edge of the cutter C extends in the usual manner. At the rear a bearing, D, is arranged, upon which the cutter will rest at that point, the cutter resting at the month and upon the bearing D. This bearing D should extend across the stock between the sides, as indicated in Figs.1 and 3. Near the mouth, upon the inside and centrally between the two sides, a lug or upward projection, E, is formed, having a recess, a, from its upper edge downward. In the same central line a recess, b, is made in the bearing D.

F is the screw, its lower or point end, d, constructed to fit into the recess a in the lug E. At a point on the body of the screw corresponding to the recess b in the bearing D an annular groove, e, is formed, and so that the screw may be set, its point into the recess a and the annular groove e into the recess b, the sides of the groove taking a bearing upon the rear and front side of the bearing D, the said bearing D standing inclined at right angles to the plane of the cutter, and the axis of the screw is parallel with the plane of the cutter, as seen in Fig. 2. Midway between the bearing D and the lug E a pair of guides, f f, are arranged, one each side the screw, leaving a space, g, between them, as seen in Fig. 4.

H is the nut, threaded corresponding to the screw, and in width so as to stand between the two guides f f, as seen in Figs. 1 and 4. These guides prevent the nut from turning as the screw is turned; hence, as the screw is turned, it being fixed as to longitudinal movement, a corresponding advance or retreating movement will be imparted to the nut, and in such movement the nut is controlled by the guides f f. The screw is provided with a convenient head, I, by which it may be turned. The nut has a stud, h, projecting from its upper end, to enter a corresponding hole in the cutter, and so that the cutter will partake of the movement of the nut. As here represented, the cutter is held by a clamp, L, taking a bearing at its lower end upon the cutter, with an adjusting-screw, M, at its upper end to bear upon the cutter, the stock being provided with a fulcrum consisting of a cross-bar, N, over the cutter. Other clamps, however, may be applied to secure the cutter in place. By this construction the stock may be cast complete. The recess a for the point and the recess b in the bearing D for the screw are all formed in the process of casting, and so that, a pattern being made like the finished stock, no coring is necessary, as all the parts readily draw from the mold, leaving the cores fort he respective cavities. The screw with its nut is simply dropped into its seats before the cutter is applied. The construction is therefore of the simplest character, and greatly reduces the cost of the article over many of the complicated constructions, but having all the advantages of ready adjustment and firm hold of the cutter.

The bar N may be a piece of wire of suitable size and strength introduced into the mold, so that in the process of casting it will becorne a permanent and fixed part of the stock.

I claim —

1. A joiner’s-plane stock having the bearing D in rear ofthe mouth. a lug, E, between said bearing and mouth, the bearing D constructed with a recess, b, opening upward, and the lug E with a recess. a, also opening upward, the said two recesses forming seats for the screw, the guides f f between said bearing and lug, the said bearing, lug, and guides cast as an integral part of the stock, combined with the screw F, constructed with an annular groove, e, corresponding to the recess b in the bearing D, its point arranged in the open recess in the lug E, and the nut on said screw between said guides f f, the nut constructed to engage the cutter, substantially as described.

2. A joiner’s-plane stock having the bearing D in rear of the mouth, a lug, E, between said bearing and mouth, the bearing D constructed with a recess, b, opening upward, and the lug E with a recess, a, also opening upward, the said two recesses forming seats for the screw, the guides f f between said bearing and lug, the said bearing, lug, and guides cast as an integral part of the stock, and the cross-bar N made as a fixed part of the stock, with the screw F, constructed with an annular groove, e, corresponding to the recess b in the bearing D, its point arranged in the open recess in the lug E, the nut H on said screw between said guides f f, the nut constructed to engage the cutter, with the clamp L arranged beneath the bar N, to take a bearing upon the cutter below said bar, and an adjusting-screw above said bar, substantially as described.

WlLLlAM TIDGEWELL.

Witnesses:
ELI J. MERRIMAN,
H. W. HUDSON.

No. 291,178 – Plane (William B. Fenn) (1884)

[paiddownloads id=”350″]291178

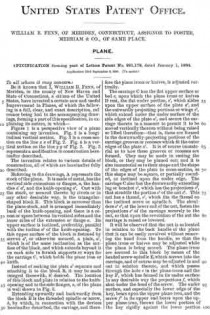

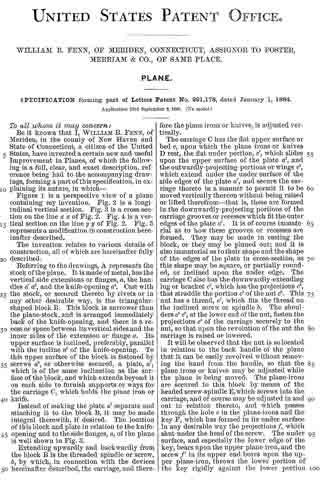

UNITED STATES PATENT OFFICE.

_________________

WILLIAM B. FENN, OF MERIDEN, CONNECTICUT, ASSIGNOR TO FOSTER, MERRIAM & CO., OF SAME PLACE.

PLANE.

_________________

SPECIFICATION forming part of Letters Patent No. 291,178, dated January 1, 1884.
Application filed September 3, 1883. (No model.)

_________________

To all whom it may concern:

Be it known that I, WILLIAM B. FENN, of Meriden, in the county of New Haven and State of Connecticut, a citizen of the United States, have invented a certain new and useful Improvement in Planes, of which the following is a full, clear, and exact description, reference being had to the accompanying drawings, forming a part of this specification, in explaining its nature, in which —

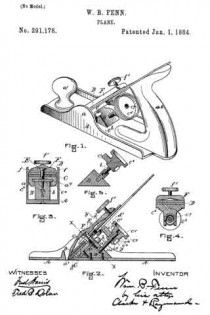

Figure 1 is a perspective view of a plane containing my invention. Fig. 2 is a longitudinal vertical section. Fig. 3 is a cross-section on the line x x of Fig. 2. Fig. 4 is a vertical section on the line y y of Fig. 2. Fig. 5 represents a modification in construction hereinafter described.

The invention relates to various details of construction, all of which are hereinafter fully described.

Referring to the drawings, A represents the stock of the plane. It is made of metal, has the vertical side extensions or flanges, a, the handles a1 a2, and the knife-opening a3. Cast with the stock, or secured thereto by rivets or in any other desirable way, is the triangular-shaped block B. This block is narrower than the plane-stock, and is arranged immediately back of the knife-opening, and there is a recess or space between its vertical sides and the inner sides of the extension or flange a. Its upper surface is inclined, preferably, parallel with the incline a5 of the knife-opening. To this upper surface of the block is fastened by screws a6, or otherwise secured, a plate, a7, which is of the same inclination as the surface of the block, and which extends beyond it on each side to furnish supports or ways for the carriage C, which holds the plane iron or knife.

Instead of making the plate a7 separate and attaching it to the block B, it may be made integral therewith, if desired. The location of this block and plate in relation to the knife-opening and to the side flanges, a, of the plane is well shown in Fig. 3.

Extending upwardly and backwardly from the block B is the threaded spindle or screw, b, by which, in connection with the devices hereinafter described, the carriage, and there-fore the plane irons or knives, is adjusted vertically.

The carriage C has the flat upper surface or bed c, upon which the plane irons or knives D rest, the flat under portion, c1, which slides upon the upper surface ef the plate a7, and the outwardly-projecting portions or wings c2, which extend under the under surface of the side edges of the plate a7, and secure the carriage thereto in a manner to permit it to be moved vertically thereon without being raised or lifted therefrom — that is, these are formed in the downwardly-projecting portions of the carriage grooves or recesses which fit the outer edges of the plate a7. It is of course immaterial as to how these grooves or recesses are formed. They may be made in casting the block, or they may be planed out; and it is also immaterial as to their shape and the shape of the edges of the plate in cross-section, as this shape may be square, or partially rounded, or inclined upon the under edge. The carriage C also has the downwardly-extending lug or bracket c3, which has the projections c4, that straddle the portion c5 of the nut c6. This nut has a thread, c7, which fits the thread on the inclined screw or spindle b. The shoulders c8 c9, at the lower end of the nut, fasten the projections c4 of the carriage securely to the nut, so that upon the revolution of the nut the carriage is raised or lowered.

It will be observed that the nut is so located in relation to the back handle of the plane that it can be easily revolved without removing the hand from the handle, so that the plane irons or knives may be adjusted while the plane is being moved. The plane-irons are secured to this block; by means of the headed screw-spindle E, which screws into the carriage, and of course may be adjusted in and out in relation thereto, and which passes through the hole e in the plane-irons and the key F, which has formed in its under surface in any desirable way the projections f, which shut under the head cf the screw. The under surface, and especially the lower edge of the key, bears upon the upper plane-iron, and the screw f1 in its upper end bears upon the upper plane-iron, throws the lower portion of the key rigidly against the lower portion of the plane-iron, and being held to the carriage by the headed spindle or screw E, the plane knives or irons are rigidly fastened to the carriage. The plane-irons are secured to each other by the coupling-screw d, and a hole, d1, is made in the carriage to receive the head of this screw.

The advantages of this invention are simplicity and cheapness of construction and ease of adjustment of the irons.

It will be observed that the threaded spindle or stem b need not necessarily be secured to the block B, as it can be fastened to any other part of the stock or body of the plane, provided it is arranged to project diagonally upward, as shown.

It will also be seen that by making the headed screw E adjustable in the carriage plane-irons of varying thickness may be used, and that a tight fit between the key-piece, plane-irons, and carriage may be obtained, which is desirable, as it prevents chips, dust, and shavings from getting between the various parts, and also holds the plane-irons more securely in place.

In Fig. 5 I show the nut secured by the body of the plane or block B, instead of to the knife-carriage C; and I prefer to secure the nut in place by tapping a hole in the block or body of the plane and forming a projection on the end of the nut, which shall tightly fit the hole when driven therein. The screw-spindle will, in this construction, take the place of the nut c6 in relation to the carriage C, and the screw will enter the stationary nut; or, in other words, in this modification the nut is stationary and the screw-spindle movable with the carriage.

Of course the invention can be used in planes having wooden bodies, or bodies having wooden bottoms and metal frames, if desired.

Having thus fully described my invention, I claim and desire to secure by Letters Patent of the United States —

1. A plane bed or stock having the block B, cast upon or fastened to the inside thereof, of less width than the body of the plane,and provided with ways or guides for the support of a movable plane knife or iron supporting carriage formed thereon by means of the projections a7, all substantially as and for the purposes described.

2. The combination of the plane bed or stop A, the block B, fastened or secured thereto, narrower than the plane-stock, and having the projecting guides a7, with a movable or knife-supporting carriage, G, having the outwardly-projecting portions or wings c2, which lap under the under surface of the guides, all substantially as and for the purposes described.

3. The combination, in a plane, of the stock or bed A, the block B, fastened thereto as described, and of less width than the body of the plane, provided with the ways or guides a7, which project therefrom, as specified, the threaded spindle or screw b, the plane knife or iron supporting carriage C, having the projecting portions c2, which lap upon the under surface of the guides or fianges a7, and the nut c5, secured to said carriage, as described, all substantially as and for the purposes set forth.

4. The combination, in a plane, of the threaded spindle or stem fixed in the body of the plane, the plane iron or knife supporting carriage C, having the projections c4, which straddle the nut c5, the said nut c6, which works upon the threaded stem, all substantially as and for the purposes described.

5. The plane knife or iron supporting carriage C, having the bracket or projection c3, whose projecting ends straddle the grooved or recessed nut c6 between the shoulders c8 c9. all substantially as and for the purposes described.

6. The combination of the adjustable screw or lug E, having in the movable carriage C the plane iron or irons D, and the key F, having the undercut recess in its under surface, adapted to receive the head of the screw or lug, and the locking-screw f1, all substantially as and for the purposes described.

WILLIAM B. FENN.

Witnesses:
L. WETMORE,
GEO. W. COLE.

No. 289,332 – Joiner’s Plane (Henry B. Beach) (1883)

[paiddownloads id=”348″]289332

UNITED STATES PATENT OFFICE.

_________________

HENRY B. BEACH, OF MERIDEN, CONNECTICUT, ASSIGNOR TO
THE MERIDEN MALLEABLE IRON COMPANY, OF SAME PLACE.

JOINER’S PLANE.

_________________

SPECIFICATION forming part of Letters Patent No. 289,332, dated November 27, 1883.
Application filed September 10, 1883. (No model.)

_________________

To all whom it may concern:

Be it known that I, HENRY B. BEACH, of Meriden, in the county of New Haven and State of Connecticut, have invented a new Improvement in Joiners’ Planes; and I do hereby declare the following, when taken in connection with accompanying drawings and the letters of reference marked thereon, to be a full, clear, and exact description of the same, and which said drawings constitute part of this specification, and represent, in —

Figure 1, a sectional side view; Fig. 2, a top view; Fig. 3, a transverse section on line x x; Fig. 4, a transverse section on line y y; Fig. 5, a transverse section on line z z; Fig. 6, a transverse section through the clamping-bar h; Fig. 7, an edge view of the cap.

This invention relates to an improvement in that class of planes for joiners’ use in which the stock is made from cast metal, the object of the invention being a simple, ready, and positive adjustment and firmness of the plane-iron when once it is set in the required position; and the invention consists in the construction, as more fully hereinafter described, and particularly recited in the claims.

A represents the stock, made from cast-iron, fitted with the usual handle, B. Upon the inner surface of each side of the stock is a ledge, a, inclined in a line from the mouth, according to the pitch required for the plane-iron. These ledges form supports for the bed C, and on the upper surface of which the bed rests — that is to say, the bed lies upon these inclines. Below these inclined bearings a, and centrally between the two sides, a screw-stud, D. is set in a plane parallel with the inclines both vertically and horizontally, as seen in Fig. 1. From the under side of the bed a lug, E, extends downward, with an opening through it corresponding to the screw-stud D, and so as to pass freely over the stud.

F is a nut fitted to the screw-stud, and carrying a collar, b. The lug is recessed transversely to form a slot, d, to receive the collar b of the nut, and so that in placing the bed in its position the nut is first set into engagement with the slot d, then the bed moved down to carry the lug over the screw-stud, and so as to permit the nut to engage the screw; then turning the screw in one direction will move the bed downward, and in the reverse will draw it upward.

On the bed C the plane-iron G is placed, and over this the clamp H, and then upon that the clamp I, which is secured by a set-screw, K. The arrangement of the clamp whereby the plane-iron is secured to the bed may be any of the usual constructions.

As here represented, a headed stud, L, attached to the clamp I, passes through beneath the cap and iron and engages a slot in the bed below, so as to form a fulcrum for the clamp. Then the point of the clarnp bears upon the iron, the power being applied through the screw K to force the point into its clamping position — a usual and well-known construction. The bed is held down at its lower end by an L-shaped lug, e, engaging a corresponding L-shaped flange, f, on the stock. (See Figs. 1 and 5.)

In the usual construction of this class of clamps the screw is inade to bear at a central point and over a comparatively small surface. Unless the corresponding surfaces of the bed and plane-iron make a perfect fit between the two, the iron is easily thrown out of adjustment. To increase this bearing-surface of the adjusting-screw, I arrange a bar, h, in a slot transversely across on the under side of the head of the clamp, and it should be in length nearly the width of the plane-iron. This is engaged with the set-screw by upsetting the screw upon the under side of the bar, as seen in Figs. 1 and 6, but so as to leave the screw free to turn in the bar; hence by turning the screw in one direction the bar will be drawn into the slot, and turned in the opposite direction will be forced downward. This transverse bar affords a long surface of bearing upon the plane-iron, and so that the force of the screw is applied to that entire surface; hence so broad or extended a bearing upon the plane-iron is attained as to prevent the possibility of accidental displacement. In this class of planes in which a cap is employed in connection with the plane-iron a ditliculty is experienced in properly fitting the edge of the cap to the surface of the plane-iron, or to bring it into a firm and close bearing entirely across the face of the plane-iron, and if it be not thus perfectly fitted shavings will work between the two and inconvenience the workman. In the usual construction of cap the edge is drawn down thin and turned toward the plane-iron, so as to raise that portion of the cap back of its edge from the iron; then the set-screw i applied is relied upon to draw the cap properly onto the iron; but this set-screw is necessarily so far from the foot that unless both the iron and the cap are perfect in their construction the requisite fit cannot be attained. To overcome this difficulty I reduce the cap in thickness a little above the foot, as at l, Figs. 1 and 7 , so as to weaken the cap at that point. Then the screw is applied in the usual manner. The clamp bears upon the cap at this reduced point, as seen at Fig. 1, and applies a pressure which, because of the reduction in thickness of the cap, will cause the foot of the cap to spring into the shape to fit closely and entirely across the face of the plane-iron. This construction permits the cap to be drawn into close contact with the iron around the set-screw, as shown, thus making a firm connection between the cap and iron, so that dis-
placement of the cap is impossible, and the clamp serves to bring the foot of the cap into its proper relation to the face of the iron; and this construction also enables me to make the cap of thicker material than can be done where there is no such reduction in thickness, for without the reduction there must be sufficient spring in the cap to permit the screw which holds it in place to draw the cap down to the iron; but this reduction in thickness requires less power upon the screw, and also enables the clamp to properly hold the cap in place.

In adjustable mouth planes — that is, planes which have the bottom fore end adjustable, so as to take the forward edge of the mouth nearer to or farther from the iron, as occasion may require – a difliculty is experienced from the fact that the adjustable portion is liable to be forced against or into contact with the cutting-edge of the iron, consequently drilling the plane. To obviate this difficulty I construct the adjustable part M so as to be moved toward or from the mouth in the usual manner, and upon its upper surface form a socket, N, fitted with a female screw, the socket arranged to work in a longitudinal recess, O, in the stock, the recess being constructed with relation to the socket N so that the rear side of the socket will strike the rear end of the slot O just before the adjustable piece M will reach the edge of the iron, and through a slot, P, into the recess a set-screw, R, passes into the socket N to bind the adjustable part in any position to which it may be set.

The set-screw itself may form the stop, instead of the socket — that is, the slot P, through which the set-screw passes, may be of such length that the body of the screw will strike the forward end of the slot just before the adjustable piece M will reach the edge of the iron, it only being essential to this part of my invention that there shall be a stop to thus arrest the adjustable piece M.

I claim —

1. In a metal plane, the combination of the stock, constructed with inclined lugs a upon its two sides to support the bed, the bed C, arranged to ride upon said lugs, the screw-stud D, fixed in the stock and parallel with the plane of the bed, a lug, E, extending from the bed and arranged to work over said screw-stud, said lug constructed with a transverse recess, d, the nut F, constructed with the collar b, corresponding to the said recess d, and mechanism, substantially such as described, to clamp the iron upon the bed, all substantially as specified.

2. In a metal plane substantially such as described, the clamp I, by which the plane-iron is secured to the bed, combined with a transverse bar, h, and adjusting-screw K, substantially as specified.

3. In a joiner’s plane substantially such as described, the cap H, having its thickness reduced transversely near its foot, substantially as and for the purpose described.

4. In a joiner’s plane, the combination of a bed made adjustable, a plane-iron upon said bed, a clamp in connection with said bed, the cap H, reduced in thickness transversely near its foot, said clamp arranged to bear upon said cap near its reduced thickness, and mechanism, substantially such as described, to force said clamp to thus bear upon the cap, substantially as specified.

HENRY B. BEACH.

Witnesses:
E. A. MERRIMAN,
CHAS. WM. MANN.

No. 287,371 – Joiner’s Plane (William B. Fenn) (1883)

[paiddownloads id=”344″]287371

UNITED STATES PATENT OFFICE.

_________________

WILLIAM B. FENN, OF MERIDEN, CONNECTICUT,
ASSIGNOR TO FOSTER MERRIAM & CO., OF SAME PLACE.

JOINER’S PLANE.

_________________

SPECIFICATION forming part of Letters Patent No. 287,371, dated October 23, 1883.
Application filed June 30, 1883. (No model.)

_________________

To all whom it may concern:

Be it known that I, WILLIAM B. FENN, of Meriden, in the county of New Haven and State of Connecticut, have invented a new Improvement in Joiners’ Planes; and I do hereby declare the following, when taken in connection with accompanying drawings and the letters of reference marked thereon, to be a full, clear, and exact description of the same, and which said drawings constitute part of this specification , and represent, in —

Figure 1, a sectional side view; Fig. 2, a top view, with the plane-iron and clamp removed; Fig. 3, a rear view, the bed removed, showing the inclined guiding-sides and screw. Fig. 4, a perspective view of the bed removed, looking toward the under side; Fig. 5, a longitudinal section of the clamp through the T-shaped slot; Fig. 6, an under side view of the clamp; Fig. 7, a transverse section of the clamp on line x x of Fig. 5; Fig. 8, a transverse section of the bed, showing the T-shaped stud.

This invention relates to an improvement in that class of joiners’ or bench planes in which mechanism is employed to adjust the cutter with relation to the thickness of the shaving to be cut. In the more general construction of this class of planes the bed is fitted to work upon ways in the stock. These ways, as well as the bed, require to be shaped or fitted in the planing-machine, and this fitting of the bed and ways is an expensive part of the manufacture of the plane.

The principal object of my invention is to avoid this expensive part of the work; and the invention consists in the construction of plane as hereinafter described, and more particularly recited in the claims.

A represents the stock, which is of substantially the usual form; B, the bed upon which the plane-iron or cutter C is supported; D, the clamp by which the iron is secured upon the bed. E is the rest or support for the lower part of the plane-iron, and which terminates at the throat a.

The surface of the bed and the surface of the rest E must be in substantially the same inclined plane. In the rear end of the rest E, I introduce studs F F, projecting therefrom, and upwardly inclined in a plane parallel with the plane of the bed and rest. These studs are best made from round rods cut to the required length, and driven into corresponding holes in the rest.

The bed B is constructed with downwardly-projecting cars G, through which holes b are made corresponding to the studs F F, and so that the bed set upon the studs F will move freely thereon as guides, and the bed be retained in its proper relative position to the rest. The employment of these studs as guides is very much cheaper than the planed seat hitherto generally employed, as the holes for the studs as well as the corresponding holes in the bed are readily drilled by a pair of drills arranged for the purpose, so that the relative position of the two parts is assured.

To adjust the bed, a third stud, H, is arranged in the rest between the studs F F. This stud is screw-threaded, and in a lug, I, which extends down from the bed, a nut, L, is arranged. This nut is free for rotation, but prevented from longitudinal movement (here represented as so prevented) by a screw, d, through the lug into a corresponding annular groove in the body of the nut. The nut is fitted at its outer end with a head, M, by which it may be conveniently turned. The nut is internally threaded, corresponding to the stud H, and so that by turning the nut the bed will be moved accordingly.

Instead of two studs a single stud may be employed and accomplish a good result. I do not limit this part of my invention, therefore, to the employment of the two studs F F.

To engage the clamp with the bed, I construct the bed with an upwardly-projecting T-shaped stud, N, which will pass through the central slot in the plane-iron, so that the iron may be placed upon the bed and rest. The clamp D is constructed with a longitudinal slot, P, T- shaped in transverse section, as seen in Fig. 7. This slot is inclined from the lower end backward and upward from the plane of the under side of the plate, the opening of the slot being upon the under side.

The head of the stud N enters the lower end, R, of the slot, and then, as the clamp is forced downward, the inclined T part of the slot engages the shoulder of the stud N, as seen in Figs. 5 and 7, the incline acting as a wedge to draw the clamp down upon the plane-iron, and thereby serve to clamp the iron to the bed, and so that a quite firm engagement may be made by simply thus forcing the clamp downward; but to make a firm engagement a set-screw, S, through the clamp is provided, to bear upon the iron above the point where the stud N engages, and so that the stud forms a fulcrum upon which the clamp will act as a lever, its forward or lower end bearing upon the iron below the stud and the screw above.

Instead of making the inclined slot in the clamp and fixing the stud to the bed, this order may be reversed, and the inclined slot made in the bed and the stud fixed to the clamp. In such construction, it will be understood the incline will be reversed — that is, so as to draw the clamp toward the bed by the downward movement of the clamp.

Considerable difficulty is experienced in the use of this class of planes, from the fact that the great resistance offered to the working of the plane — as, for instance, in striking a knot — tends to turn the iron out of its proper position, the natural friction between the clamp and bed not being sufficient to hold the iron. To overcome this difiiculty, I apply to the clamp a facing, T, of non-metallic material, preferably of india-rubber. This is best made by the introduction of a strip of rubber across the lower end of the clamp, as seen in Fig. 1; but it may be applied at other positions, and advantageously so, at about the point where the screw bears — that is, an india-rubber or other non-metallic shoe may be applied to the lower end of the screw to bear upon the surface of the plane-iron — or this non-metallic bearing-surface may be arranged upon the bed, or upon the rest beneath the plane-iron; or it may be applied both to the clamp and to the bed, it only being essential to this part of my invention that there shall be a non-metallic bearing-surface for the plane-iron.

I claim —

1. In a plane substantially such as described, the combination of one or more inclined guiding-studs, F, fixed in the stock, the bed B, constructed to ride upon said inclined stud, mechanism, substantially such as described, to hold the plane-iron upon the bed, an inclined adjusting-screw and nut whereby said bed and the iron which it carries are made adjustable upon said stud, substantially as described.

2. In a plane substantially such as described, the combination of one or more inclined guiding-studs, F, the correspondingly-inclined screw-stud H, the bed B, constructed to ride upon said inclined stud, and the nut L, arranged in said bed, fixed as to longitudinal movement but free for rotation, substantially as described.

WILLIAM B. FENN.

Witnesses:
JOS. C. EARLE,
J. H. SHUMWAY.

No. 279,885 – Bench-Plane (Solon R. Rust And Arthur E. Rust) (1883)

[paiddownloads id=”336″]279885

UNITED STATES PATENT OFFICE.

_________________

SOLON R. RUST AND ARTHUR E. RUST, OF PINE MEADOWS, ASSIGNORS TO THE MERIDEN PATENT NOVELTY COMPANY, OF MERIDEN, CONN.

BENCH-PLANE.

_________________

SPECIFICATION forming part of Letters Patent No. 279,885, dated June 19, 1883.
Application filed February 24, 1883. (No model.)

_________________

To all whom it may concern:

Be it known that we, SOLON R. RUST and ARTHUR, E. RUST, citizens of the United States, residing at Pine Meadow, in the county of Litchfield and State of Connecticut, have invented certain new and useful Improvements in Bench-Planes; and we do hereby declare the following to be a full, clear, and exact description of the invention, such as will enable others skilled in the art to which it appertains to make and use the same.

Our invention relates to improvements in what are termed “block-planes;” and the object is to produce a plane in which the bottom or face of the plane can be easily adjusted to the iron by means of a hinge motion in back part of plane, and to produce a clamping-bar with central point bearing against a central bearing, cast solid with the frame without a core, and to form a check-nut and knob on the adjusting-screw, and also to simplify the general construction and operation.

Our invention consists in constructing a block-plane so that the plane bit or iron which projects through the mouth or opening can be adjusted, as desired, to form an open or close mouth, and to suit the nature of the work to be performed in an expeditious manner. The bottom or face of the plane is hinged to the rear part of the skeleton frame or stock, and is adjusted by means of a flat wheel on an adjusting screw or stud, and fitting with one side under lugs cast on the frame at its front end, and with the other side against two cross-bars, also cast on said frame. A check-nut and knob on said adjusting-screw secures and locks the wheel in place.

It also consists in holding the bit or plane-iron in place by a screw in the clamping-bar against said iron, while said clamping-bar bears with its upper side against a central point east solid in the frame, and which forms a fulcrum for it. The lower side of the plane-iron rests against two cross-bars, also cast solid with the frame.

It also consists in adjusting the open and close mouth without a movable front piece; and it also consists in the construction and arrangement of certain parts of a plane, as will be more fully described hereinafter, and specifically pointed out in the claims, reference being had to the accompanying drawings and the letters of reference marked thereon.

Like letters indicate like parts in the different figures of the drawings, in which —

Figure 1 represents a side elevation of the plane. Fig. 2 is a top view of the same. Fig. 3 is a longitudinal section of the same. Fig. 4 is a top view of the bottom of the plane. Fig. 5 is a longitudinal section of the same. Fig. 6 is a longitudinal section of the frame. Fig. 7 is a top view of the same. Fig. 8 is an end view of the same.

In the drawings, A represents the skeleton frame or stock, consisting of the side pieces, a a, connected by a series of cross pieces or bars, one of which, b’, forming the hinge-pin for the bottom B, and another one, c, being the central bearing for the clamping-bar C. The bottom is provided with a lug, b, into which the bar b’ fits, and is held in place by a clamping-plate, b”, and screw b”’. At the forward end of the plane is arranged a screw, D, upon which a flat milled wheel, E, is screwed, fitting with its upper surface under lugs d, cast on each side or wall of the frame, and with its lower surface bearing on two bars, e and f. A milled clamping-screw or check-nut, F, secures the wheel in its locked position. By this arrangement the bottom or face of the plane can be adjusted, to a nicety to the plane iron or bit. The bars e and f are provided with raised parts e’ and f’, to form a more perfect adjustment for the wheel. The clamping-bar C secures the plane iron or bit G in position by means of a screw, g, which forces the bar G against a central bearing, h, on the bar c, cast solid with the frame and without the use of a core. The lower side of the plane iron or bit rests on two cross-bars, i k, also cast on the frame. The bottom is provided with two curved ears, l, which it closely into corresponding recesses formed in the frame, and they serve to hold the bottom in position and prevent any lateral movement. It will be readily seen that by screwing the face or bottom close down or tight, and setting the iron or bit, an open mouth is formed; and by letting the face or bottom down and then setting the iron or bit a very close mouth is obtained. A much greater pitch is also obtained by having the adjustment at the front end of the plane than if on the back under the cutting-iron, which is a great advantage, as it makes a much smoother cut. The bit can be adjusted nicely to coarse or fine work.

Having thus described our invention, what we claim, and desire to secure by Letters Patent, is —

1. In a plane, a flat wheel, E, for adjusting the size of the throat of the plane, and having its bearings on the bars e f and under lugs d, as shown, in combination with ascrew, D, secured to the hinged bottom B, substantially as specified.

2. The adjustable bottom B, hinged at the rear end of the frame A by means of a bar, b’, having bearings in a lug, b, and held by a clamping-plate, b”, and adjusted at the front end by a screw, D, and wheel E, in the manner shown and set forth.

3. The frame A, provided with a bar, c, having a central bearing, h, for forming a fulcrum for the clamping-bar C, provided with a screw, g, by which the bit G is held in place in the plane, substantially as specified.

4. The skeleton frame A, provided with bars e f and lugs d d, forming bearings for the wheel E, a bar, c, having central bearing, h, against which the clamping-bar G bears, and the pivot-bar b’, forming the hinge-bar for the adjustable bottom, and all cast in one piece, as set forth.

5. The method of and means herein described for adjusting the bottom B to form an open and close mouth — that is to say, connecting the bottom to the frame by a hinge-joint, b b’ b”, and adjusting it by a screw, D, and wheel E, substantially in the manner shown and specified.

6. In a plane, a wheel, E, for adjusting the size of the throat, having bearings on bars e f, and under lugs d, and a lock-nut, F, for securing said wheel, in combination with the screw D, secured to the hinged bottom B, as shown and described.

7. The combination of a hinged bottom, B, provided with curved ears l, fitting into corresponding recesses in the sides of the skeleton frame A, with a bit, G, held in place by a clamping-bar, C, and thumb-screw g, the stationary screw D, and wheel E, for adjusting the bottom, substantially as described, and for the purpose set forth.

8. The plane herein described, consisting of the skeleton frame A, to which the bottom B is hinged adjustably, in combination with a screw, D, clamping-wheel E, check-nut F, bit G, clamping-bar C, with screw g, and central bearing-point, all constructed and arranged substantially as specified.

In testimony whereof we hereby affix our signatures in presence of two witnesses.

SOLON R. RUST.
ARTHUR E. RUST.

Witnesses:
E. M. CHAPIN,
E. E. KELLOGG.
