UNITED STATES PATENT OFFICE.
_________________
BENJN. TOLMAN, OF PEMBROKE, MASSACHUSETTS, ASSIGNOR TO HIMSELF AND A. T. RAMSDELL, OF SAME PLACE.
SPOKE-SHAVE.
_________________
Specification of Letters Patent No. 23,927, dated May 10, 1859.
_________________
To all whom it may concern:
Be it known that I, BENJAMIN TOLMAN, of Pembroke, in the county of Plymouth and State of Massachusetts, have invented an Improved Spoke-Shave or Heel-Shave; and I do hereby declare that the same is fully described and represented in the following specification and the accompanying drawings, of which —

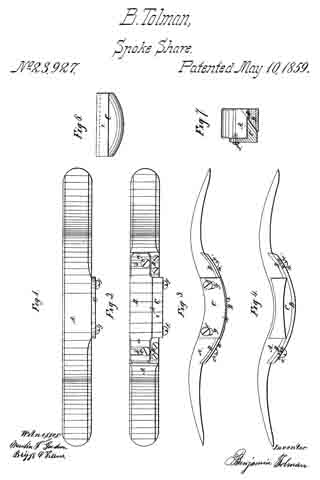

Figure 1, denotes a top view of it. Fig. 2, an underside view of it. Fig. 3, a front side view of it. Fig. 4, a rear side view of it. Fig. 5, a transverse and central section of it. Fig. 6, an underside view of its adjustable throat gage to be hereinafter described.
In the drawings, A, exhibits the stock or handle of the shave; B, the curved knife, while C, is the throat gage, the said knife and throat gage being constructed of metal. In spoke shaves or heel shaves as ordinarily constructed, the knife is furnished with “starts” or adjusting contrivances, which extend transversely through the handle, and cause the knife during the process of adjusting it, to be moved either toward or away from the stock. In consequence of this mode of arranging the adjustments, the knife, while the shave is being used, is very apt to be moved toward the stock or get out of place, for the great pressure employed to keep the tool in contact with the article to be shaved is borne mostly and directly by the knife and in such manner as to render the knife liable to be forced up to or toward the handle. In the construction of my improved shave I have avoided this liability of derangement of the knife. The two ears, a, a, of the knife, are not provided with starts to extend through the handle, but are formed so as to rest with broad bearings or surfaces upon flat surfaces or plates of metal, D, D, screwed or fastened lirmly to the stock, each of the said ears being provided with a slot, b, arranged transversely in it, and for the reception of one of two clamp screws, c, c, which is passed through it and screwed into the bearing plate, such clamp screw having its head projecting over the opposite sides of the slot in order that when screwed down firmly it shall confine the ear in place on the bearing piece. In connection with the said movabllie and adjustable knife, I employ an adjustable throat gage, C, which is formed as shown in the drawings, is fastened by screws f, f, to the front side of the stock. It also extends in front of the knife and between the latter and the stock, as shown in Fig. 5. The screws, f, f, pass respectively through elogated slots g, g, made in the adjustable gage C, the same being so arranged as to enable the gage C, to be moved in a direction at a right angle to that in which the knife is capable of being moved.
The object of adjusting the knife as described is to enable the cutting edge h, to be brought into a suitable position with respect to the rear edge of the bearing part, i, of the throat gage, for it will be observed that in proportion as the knife is worn down by the act of sharpening or grinding it, it will require to be moved forward. Furthermore, the object of making the throat gage adjustable is, to regulate the depth of cut or thickness of shaving to be taken by the knife.
From the above, it will be seen that the knife having been once adjusted and clamped firmly on its bearing plates cannot easily be thrown out of place while in operation, and besides this the adjustment of the distance between the knife and the throat gage can be made without disturbing the knife. As most of the pressure by which the tool is borne against an article while in the act of cutting the same, is borne by the knife, there is little or no danger of derangement of the throat gage.
I do not claim a shave made with a stationary knife and an adjustable gage; nor do I claim a shave as made with an adjustable knife and a stationary mouthpiece disposed in front of the knife, but what I do claim as my invention is —
An improved spoke shave, constructed substantially as herein before described, that is with an adjustable knife and an adjustable throat gage, arranged and applied to the stock, and so as to move with respect to one another as specined.
In testimony whereof I have hereunto set my signature this twenty eighth day of September, A. D. 1857.
BENJAMIN TOLMAN.
Witnesses:
ISAAC JOSLYN,
EVA LAMBERT.
