No. 738,501 – Plane (Alix W. Stanley And Edmund A. Schade) (1903)

[paiddownloads id=”589″]738501

UNITED STATES PATENT OFFICE.

_________________

ALIX W. STANLEY AND EDMUND A. SCHADE, OF NEW BRITAIN, CONNECTICUT,
ASSIGNORS TO STANLEY RULE & LEVEL COMPANY, OF NEW BRITAIN,
CONNECTICUT, A CORPORATION OF CONNECTICUT.

PLANE.

_________________

SPECIFICATION forming part of Letters Patent No. 738,501, dated September 8, 1903.
Application filed February 11, 1903. Serial No. 142,845. (No model.)

_________________

To all whom it may concern:

Be it known that We, ALIX W. STANLEY and EDMUND A. SCHADE, citizens of the United States, residing at New Britain, in the county of Hartford, State of Connecticut, have invented certain new and useful Improvements in Planes, of which the following is a full, clear, and exact description.

This invention relates to planes, and particularly to improvements in the construction of that class of planes adapted to be used on curved surfaces, sometimes called “circular planes.” In planes of this character the base or sole is made flexible, so that it may be bent to any desired curve to cause the plane to fit onto a curved surface, either concave or convex. The sole portion of the plane is usually made of sheet metal, such as spring-steel. It is highly desirable in planes of this character that means be provided whereby the adjustment of the sole to the desired curve may be effected accurately and quickly. To that end, therefore, the main object of this invention is to provide simple and effective mechanism for attaining these results.

In the accompanying drawings, Figure 1 is a side elevation illustrative of a specific embodiment of my invention, the sole of the plane being curved to fit to a concave surface. Fig. 2 is a fragmentary perspective view of detached details of construction.

1 is the main body portion.

2 is the base or sole portion. The sole portion 2 is capable of being curved relatively to the main body portion 1. In the form shown the portion 1 is connected to the middle portion of the sole 2.

3 is the frog, carried by the frame 1 and in turn supporting the plane-iron 4. and the adjustments therefor. It is not necessary to explain in detail the adjustments for the plane-iron, because they are well known and constitute no part of this invention.

5 is a screw-threaded post mounted in a suitable screw-threaded bearing on the forward part of the body 1.

6 is a knob or handle carried by the post 5. When said post is rotated it will move up and down relatively to the body 1.

7 is a telescopic extension of the post 5. The connection between the post 5 and its extension 7 is screw-threaded. The screw-threads on the post which take into the frame 1 are right-hand threads, while the screw-threads on the extension 7 which take into the post are left-hand threads, or vice versa. The post extension 7 is connected to a lever 8 by means of a link 9. The lever 8 is pivotally mounted in the body 1. The link 9 prevents the extension 7 from rotating. The particular screw-threaded adjustment of the post 5 relatively to the frame 1 and the extension 7 relatively to the post 5 produces double the movement of the lower end of the extension 7 that would be produced were the link 7 merely projected into the post 5 without being oppositely screw-threaded. The lever 8 is connected with one end of the sole 2 by means of the link 11. 10 is another lever pivotally mounted in the body 1 and connected to the opposite end of the sole 2 by the link. 12.

15 is a pivot for the lever 8.

16 is a pivot for the lever 10. 13 14 are segmental gears fixed on the pivots 15 16, respectively, so that the movement of one of said levers will be transmitted to the other — for example, the movement of the lever 8 by the aforesaid means will produce a corresponding movement in the lever 10. Hence as the lever 8 is moved upwardly the sole 2 will be curved upwardly. If the lever 8 is moved downwardly, the sole 2 will be curved downwardly, and the position of the levers 8 and 10 and the degree and direction of curvature of the sole 2 are deterininable solely by the handle 6. By means of a suitable indicating device it may be ascertained whether the sole is flat or curved and if curved what degree of curvature exists in the sole. In the particular form shown the indicating device comprises a pointer 17, carried by one of the parts — for example, the body 1 — in such a position as to project into the path of movement of certain graduations carried by another part — for example, the segmental gear 13. Referring to Fig. 1, it will be seen that the pointer 17 projects into a curved slot in the segmental gear 13, adjacent to which curved slot there are certain graduations from zero upward and downward. These graduations indicate degrees of curvature in the sole. When the zero-mark on the graduated scale lies opposite the pointer or line of reading, it indicates that there is no curve in the sole. If any one of the graduations above the zero-mark is brought into line with the pointer, it indicates to the user that the sole is curved upwardly to a certain definite degree. The reverse is true of the graduations below the zero-mark. It might be said that the segmental gear 13 constitutes a movable pointer, which enables the user to accurately set the plane so that the sole will be curved to any desired degree to fit to any particular curved surface, and this adjustment may be accurately and quickly effected without any preliminary trials, such as fitting the plane to the particular curved surface upon which it is desired to operate. When the plane has been set as desired, a set-screw 18 may be operated to clamp the adjusting screw or post 5 and prevent accidental displacement. The set-screw 18 may operate to clamp a split collar on the frame 1, through which the adjusting-post 5 passes.

The subject-matter disclosed and claimed herein is a specific embodiment of the invention broadly claimed in Alix W. Stanley’s application for United States Letters Patent, Serial No. 142,844, filed February 14, 1903.

What is claimed is —

1. A plane for cutting curved surfaces comprising a body portion, a sole portion secured thereto, adjusting-arms pivotally secured to the body portion and connected to the sole portion, segments of gears carried by the pivotal supports, an index or scale carried by one of said segments, and a stationary indicator or pointer carried by the body portion of the plane coacting with the scale or index whereby the degree of curvature of the sole portion may be indicated.

2. A plane comprising a body portion, a flexible sole portion secured thereto, a pair of arms pivoted in said body portion and connected to the ends of the sole portion, an index or scale carried by one of said arms, and a relatively stationary indicating member carried by the body portion of the plane and coacting with the scale or index for indicating the degree of curvature.

3. A plane for cutting curved surfaces comprising a body portion, a sole portion secured thereto, a pair of arms pivoted to the body portion and connected to the sole portion, gear-segments mounted to operate with said arms, one of said segments being slotted and having a scale or index adjacent the slotted portion, and an indicating member carried by the body portion of the plane cooperating with the scale or index for the purpose specified.

Signed at New Britain, Connecticut, this 7th day of February, 1903.

ALIX W. STANLEY.
EDMUND A. SCHADE.

Witnesses:
ROBERT N. PECK,
WILLIAM J. WORAM.

No. 738,500 – Plane (Alix W. Stanley) (1903)

[paiddownloads id=”588″]738500

UNITED STATES PATENT OFFICE.

_________________

ALIX W. STANLEY, OF NEW BRITAIN, CONNECTICUT, ASSIGNOR TO
STANLEY RULE & LEVEL COMPANY, OF NEW BRITAIN,
CONNECTICUT, A CORPORATION OF CONNECTICUT.

PLANE.

_________________

SPECIFICATION forming part of Letters Patent No. 738,500, dated September 8, 1903.
Application filed February 11, 1903. Serial No. 142,844. (No model.)

_________________

To all whom it may concern:

Be it known that I, ALIX W. STANLEY, a citizen of the United States, residing at New Britain, in the county of Hartford, State of Connecticut, have invented certain new and useful Improvements in Planes, of which the following is a full, clear, and exact description.

My invention relates to planes, and particularly to that class of planes adapted to be used on curved surfaces, sometimes termed “circular planes.” In planes of this character the base or sole portion is so arranged that it maybe made to assume different curvatures to cause the plane to properly fit to surfaces of different degrees of curvature upon which it is desired to operate the tool. These curvatures may be either concaved or convex. In the particular form shown the sole or base is made of flexible material, such as sheet metal or spring-steel. When adjusting the sole to the desired curvature, it is most desirable that said adjustment may be effected accurately and quickly.

To that end, therefore, the object of my invention is to provide simple, effective, and durable means whereby the plane may be so adjusted that exactly the proper curvature will be given to the sole without requiring the user to make any preliminary trials to ascertain whether the plane fits the curved surface on which it is to be used.

Figure 1 is a side elevation illustrative of one particular embodiment of my invention, the sole of the plane being curved to operate on a convex surface. Fig. 2 is a fragmentary plan view of the setting and reading mechanism. Fig. 3 is a perspective view of the scale.

A is a frame or main body, perfectly rigid.

B is a base or sole, which may be made of any flexible material, preferably spring sheet-steel.

C D are links located at the ends of the sole and in the particular form shown connected with the ends of the frame A.

E is a frog connected with the sole B and supporting the plane-iron F and the adjustments therefor, which latter need not be explained, because they constitute no part of this invention.

H is a post connected with the frog E. In the particular form shown the post H passes up through a portion of the body A, and on the post is mounted a screw-threaded adjusting device J in the form of a thumb-nut. This thumb-nut is rotatable in the body A, but is held against longitudinal movement. Hence when this thumb-nut is rotated the post H is moved up or down to produce a curvature of the sole B.

K is a screw by the rotation of which the thumb-nut J may set at any desired position to lock the adjusted parts against accidental displacement. In the form shown one side of the post H is flattened and upon said flattened surface is a graduated scale L. The graduations may, however, be formed upon the post itself. This scale runs from zero upward and downward, the graduations being proper to indicate to the user the exact curvature of the sole. These graduations are read on the line of the upper surface of the thumb-nut J, since that member is relatively stationary and its upper surface constitutes a convenient indicating-line. The zero-mark when registering with the indicating line means to the user that the sole is flat and not curved either upwardly or downwardly. If the thumb-nut J is so turned as to raise the post H, the graduation thereon adjacent the indicating-line indicates to the user the curvature of the sole. In Fig. 1 the zero-mark will be seen to be above the indicating-line. Hence the sole is curved upwardly, so that the plane may be used on a convex surface. Were the post depressed, so that some graduation above the zero-mark should lie adjacent to the indicating-line, it would show to the user that the sole is curved downwardly. The particular graduation would indicate to him the exact curvature of the sole.

The construction as a whole is simple and reliable and facilitates the accurate and quick adjustment of the sole to any definite curvature without the necessity of making any preliminary trials.

It is apparent that the plane herein specifically shown and described is capable of modification without departing from the spirit or scope of the invention.

Another specific embodiment of this broad invention is shown in a companion application, Serial No. 142,845, filed February 14, 1903.

What is claimed is —

1. A plane for operating on curved surfaces comprising a relatively stationary frame or body portion, a flexible sole portion secured thereto, an adjusting post or screw coacting with the flexible sole portion, and the relatively stationary body portion, a scale or index carried by the adjusting post or screw and a relatively stationary indicating member coacting with the post for the purpose of determining the change of curvature of the sole portion as indicated by the scale, said indicating member having a rotative movement relatively to said body.

2. A tool for planing curved surfaces comprising a relatively stationary body portion, a flexible sole portion carried thereby and movable relatively to the body portion, an adjustable scale-carrying member movable with the sole portion, and a relatively stationary indicating member carried by the body portion cooperating with the scale portion whereby the relative positions of the body and sole portions of the plane may be measured, said scale having graduations running upward and downward from zero.

3. A plane for curved surfaces comprising a body portion, a relatively movable and flexible sole portion pivotally mounted with respect thereto, an adjusting-screw operating in the body portion and cooperating with the sole portion, a scale or index carried by said screw, an adjusting-nut operating on said screw and in conjunction with the body portion, one edge of the adjusting-nut being adapted to act as a pointer or indicating member in conjunction with the scale for determining the relative positions of the body and sole portions.

Signed at New Britain, Connecticut, this 7th day of February, 1903.

ALIX W. STANLEY.

Witnesses:
ROBERT N. PECK,
WILLIAM J. WORAM.

No. 735,744 – Plane (Charles H. Fox) (1903)

[paiddownloads id=”586″]735744

UNITED STATES PATENT OFFICE.

_________________

CHARLES H. FOX, OF NEW BRITAIN, CONNECTICUT, ASSIGNOR TO
STANLEY RULE & LEVEL COMPANY, OF NEW BRITAIN,
CONNECTICUT, A CORPORATION OF CONNECTICUT.

PLANE.

_________________

SPECIFICATION forming part of Letters Patent No. 735,744, dated August 11, 1903.
Application filed November 15, 1902. Serial No. 131,485. (No model.)

_________________

To all whom it may concern:

Be it known that I, CHARLES H. FOX, a citizen of the United States, residing at New Britain, Hartford county, Connecticut, have invented certain new and useful Improvements in Planes, of which the following is a full, clear, and exact description.

My invention relates to improvements in planes, and particularly to a construction for improving the efficiency and general usefulness of the device in its operation.

The object of my invention is to construct a plane for use in matching boards and the like, which may be adjusted to various widths of cutting-irons. The clogging of shavings which are produced when the plane is in use is avoided. It is also possible to use a beading-iron with the same plane-body when desired.

The invention consists in the improvements to be hereinafter described and shown in the accompanying drawings. The invention is particularly applicable to that class called “matching-planes,” in which a cutter is provided to form the edges of boards in order that they may be matched together. The plane is so constructed as to effect the smooth and certain turning aside of the shavings when theplane is cutting. In the form herein shown the tonguing-iron may be replaced by a beading-iron when the proper adjustments have been made.

Figure 1 is a side elevation of a plane embodying the improvements of my invention. Fig. 2 is a projection showing the under side of the plane. Fig. 3 is a front view of the plane, parts being shown in section on the line X X of Fig. 2. Fig. 4 is a detail of a shaving-deflector. Fig. 5 is an elevation of the inside face of the main stock, parts being shown in section. Fig. 6 is a detail of a gage for limiting the cutting depth when a beading cutter or iron, as shown in Fig. 7, is used.

1 is a main stock portion having a handle 10.

2 2 are rods screwed into the stock portion and upon which slides the part 3, which may be conveniently termed a “fence”.

4 is a sliding section which is mounted upon the rods 2 2 and adapted to be moved toward or away from the stock portion 1.

5 is a tonguing-iron adapted to form the edge of a board into a tongue portion. For this purpose it will be seen that the blade is bifurcated at the lower part, as particularly shown in Figs. 2 and 3. This cutting-iron 5 is mounted in grooves between the adjacent faces of the stock 1 and the sliding section 4. The sliding section is caused to move toward the stock portion 1 and to hold the iron 5 securely in place by means of the thumb-nut 40, which operates on the screw-bolt 41, as seen in Figs. 1 and 2. The stock portion 1 is formed at the lower edge of the outer part, as seen particularly in Fig. 3, with a limiting-surface 11. Similarly the sliding section 4 is provided with a limiting-surface 42, which is, however, oppositely positioned. The fence 3 is provided with a guide-surface 31, which is convenient for use with the plane when it is used as a beading-plane, as will hereinafter be described in connection with the details shown in Figs. 6 and 7.

When the plane is being used to cut with the tonguing-iron 5 in position, the shavings which are cut will be deflected upward by means of the construction which I have provided. The shaving which is formed by the outer right-hand portion of the blade of the tonguing-iron will be deflected inwardly and upwardly by means of the deflector 6, one form of the construction of which is shown in detail in Fig. 4. The shaving as it is being taken is moved forwardly and is caught by the concaved inner surface 60 of the deflector, and thus thrown inwardly to the inside edge of the stock portion 1 and upwardly. This will be seen particularly in Fig. 5. The other shaving, taken by the left-hand portion of the blade 5, will be deflected backward and upward by means of the upper surface of the blade 5 and the concaved upper surface of the sliding section 4 and pass out freely through the curved open space 43. This deflector 6 is situated beyond the outer guide-surface 11 of the stock portion 1 and in this form is mounted in the lug 12. For this purpose the deflector is provided with the shank 61, which may be tightly gripped by means of the thumb-nut 62. The surface of the deflector at 63 is made to coincide approximately with the outer guide-surface of the stock 1 at the point of attachment. At 64 the deflector is formed to coincide with the outer edge of the cutting-blade. The dimensions are such, preferably, that there is but little opportunity for shavings to pass outward from the cutting edge at any other point than that prepared by means of the convexedly-curved surface 60.

It is obvious that some of the same advantages would be had if the deflector 6 were made integral with the stock portion 1. By reason of its being separable therefrom, however, it is possible to employ cutting-irons of various widths with the same main plane structure, using a larger or smaller deflector, as required. There is also another advantage inherent in this structure by reason of the deflector being thus separable from the other parts. By means of this I am able to make this plane interchangeable as a matching-plane which will form a tongue and to use it also as a beading-plane.

Fig. 7 shows the beading-iron 7, which is employed for cutting beads. This beading-iron 7 may be fitted into the guide-slots in the main stock portion and the sliding section 4 adjusted to hold it there by means of the adjusting-screw 40. At such a time the two guiding-surfaces 11 and 42 are in line with the edges of the beading-iron 7, and there is no necessity for the deflector 6. In its place isinserted the gage 8, (shown in Fig. 6,) which has the shank portion 81, adapted to fit in the lug 12 and be engaged by the thumb-nut 62. The edge 82 of this gage is adjusted opposite the outer guide-surface 11 of the stock portion 1, while the lower surface of the gage provides a limiting or guide portion, by means of which the depth of the bead can be made as desired.

The fence 3 may be adjusted upon the rods 2 2 at any suitable distance from the cutting-blade to provide a guide by means of which the cutting edge may be operated at the proper distance from the edge of the board.

It will thus be seen that this construction herein shown and described is adapted to be used efficiently as a matching or tonguing plane and that the shavings caused by the operation of the plane will not clog it or in any other way interfere with its operation.

The plane, moreover, may be used as a beading-plane, thus combining the functions of both and enabling a person to perform both operations with one plane by the simple interchange of parts, which may be readily adjusted to suit different sizes of iron and the addition of which is of but slight expense.

What I claim is —

1. In a plane, the combination of a handle member and a relatively movable member, a plane-iron clamped between the same and protruding beyond the outer surface of the handle member, and means situated on the outer surface of said handle member for deflecting shavings consisting of a body portion having a curved deflecting-surface, a surface fitting close to the plane-handle member and a surface fitting close to the protruding edge of the plane-iron.

2. In a plane the combination of a handle member and a relatively movable member, a plane-iron clamped between the same and protruding beyond the outer surface of the handle part, and a shaving-deflector removably carried by said handle portion, consisting of a body portion and a shank portion said shank fitting into a recess in said handle member.

3. A tonguing-plane having a stock or handle portion, a pair of guide-bars carried thereby, a sliding section mounted on said guide-bars, a cutting-iron secured between the adjacent surfaces of said stock portion and said sliding section, said stock portion having a guiding-surface on the outer side, said cutting-iron projecting a considerable distance outside of said surface, and means for deflecting shavings upward and backward from the cutting edge of said iron.

4. A tonguing-plane including a handle member, guide-rods carried by said member, a member slidably mounted upon said rods and adapted to move relatively to said handle member, a tonguing-iron carried between the said members, a shaving-defiector consisting of a body portion and a shank removably carried by the said handle member and a thumb-screw for securing the shank in a recess in said handle member.

Signed at New Britain, Connecticut, this 13th day of November, 1902.

CHAS. H. FOX.

Witnesses:
H. S. WALTER,
W. J. WORAM.

No. 719,062 – Plane (Justus A. Traut) (1903)

[paiddownloads id=”581″]719062

UNITED STATES PATENT OFFICE.

_________________

JUSTUS A. TRAUT, OF NEW BRITAIN, CONNECTICUT, ASSIGNOR TO
THE STANLEY RULE & LEVEL COMPANY, OF NEW BRITAIN, CONNECTICUT,
A CORPORATION OF CONNECTICUT.

PLANE.

_________________

SPECIFICATION forming part of Letters Patent No. 719,062, dated January 27, 1903.
Application filed October 29, 1902. Serial No. 129,227. (No model.)

_________________

To all whom it may concern:

Be it known that I, JUSTUS A. TRAUT, a citizen of the United States, residing at New Britain, in the county of Hartford, State of Connecticut, have invented certain new and useful Improvements in Planes, of which the following is a full, clear, and exact description.

This invention relates to planes, and particularly to plane-handles.

The object of this invention is to provide a detachable handle which is adjustable and which may be applied to a plane at the side thereof in any desired position, so that when the plane is used upon its side the operator may have a convenient and effective means to hold the plane and apply to it power suficient to cause it to operate efficiently and in the intended manner. Heretofore in using a plane in this manner with the edge of the knife placed vertically it has been not only extremely awkward for the operator, but very difficult to keep the plane in the proper position to get true and effective work. Frequently the thing to be planed is of such shape or is so located that it cannot be placed upright to permit the plane to be used in the ordinary way with the fixed handle upright, and it is because on occasions it is necessary to use the plane on its side that a detachable side handle is found to be a feature of great convenience and utility. Inasmuch as planes vary substantially in size, I have devised a simple and effective mechanism the purpose of which is to render the handle adjustable, so that it may be attached to planes within a wide range of sizes.

In the drawings, Figure 1 is a side elevation of a plane with the detachable handle applied thereto. Fig. 2 is a plan view thereof. Fig. 3 is a cross-section of the plane-stock and detachable handle as shown in Fig. 1. Fig. 4 is a view of the inside of the detachable handle.

A represents the stock of an iron plane. B is a handle permanently attached to the rear end thereof.

C is a front knob or handle, also usually permanently attached to the stock A.

In ordinary use the operator grasps the two handles B C.

The other details of the plane proper, such as the knife and the adjusting devices, it is unnecessary to describe in detail herein, because they constitute no part of this invention.

D is the body of a detachable handle, preferably in the form of a shell, since it provides a strong and light construction.

E is a lip on one side of the body D, the same being by preference of sufficient length to give a long flat bearing. Obviously the number of these lips E is immaterial. Two short lips spaced apart would give the same results. The lip E will for convenience of expression be termed herein the “flat” lip. F’ is a hooked lip at the opposite side of the body D, the said hook facing the flat lip E.

Ordinarily the stock A of a metal plane is provided with cheek-pieces, one on each side, and these cheek-pieces are generally shaped as shown in Fig. 1, in which they incline upwardly from each end to a high point or crown.

In attaching the haudle-body D the flat lip E is placed against the bottom of the plane-stock, and the handle is then pushed forward toward the highest part of the cheek-piece until the hooked lip F’ engages with it and may be wedged thereon, the hook F’ overstanding the upper edge of the cheek-piece and securing the handle in place on the side of the plane. The operator may then use the plane with one or both hands. In case one hand is used the palm is placed against the rear side of the body D and the fingers are placed over the top of the plane, giving a secure grip. The position of the plane will then be on its side, and the same may be pushed along the side or edge of the thing to be planed and the work done with ease and accuracy. In case the operator desires to use two hands he may grasp the solid handle B with one hand and the detachable handle D with the other, the latter taking the place of the knob-handle C. When the work is completed, the handle D may be easily removed by sliding the same backward and freeing the hook F’ from the cheek-piece of the stock.

Inasmuch as planes vary substantially in size, I have provided a simple and effective means whereby a single detachable handle may be used upon any plane within a wide range of sizes. As will be seen from the drawings, the book F’ is provided with a shank portion F2 in its preferred form, the end of which is bent or offset and through which end passes an adjusting-screw G.

D’ D’ are guide-flanges upon the body D, which are undercut to receive the shank F2, which is preferably dovetaiied, so as to be held between the flanges D’ D’. The fit of the shank F2 in said flanges D’ D’ is sufficiently free to permit said shank to slide longitudinally. Hence by turning the adjusting-screw G the shank F2 may be moved in the guide-flanges D’ D’ and the position of the hook F’ varied relatively to the flat lip E. For convenience of adjustment one end of the adjusting-screw may have a screw-driver slot, while the other end may be provided with a head G’ to prevent the screw from moving longitudinally. In the form shown inasmuch as the screw cannot move longitudinally the rotation of the screw will transmit longitudinal movement to the offset portion of the shank F2 and a corresponding movement in the lip F’, as described. While the handle D may be jammed into engagement with the cheek-piece of the plane-stock A, it may be still further tightened by turning up the screw G after it has been jammed as tightly as possible by sliding the handle forward. Another advantage of this construction resides in the fact that by shifting the hook F’ the operative position of the handle D may be varied on a plane of any given size. For example, the hook F’ may be drawn so near to the lip E that the handle D will stand well toward the rear end of the plane, or the hook F’ may be moved so far away from the lip E that the handle D will lie closely adjacent to the highest part of the cheek-piece and well forward on the side of the plane.

Obviously the construction herein shown may be modified in a variety of ways, such as will be apparent to the mechanic skilled in the art, without departing from the spirit of this invention.

What I claim is —

1. A side handle for a plane comprising, a body portion and means projecting from said body for detachably and adjustably engaging the same at the side of a plane-stock.

2. A side handle for a plane comprising, a body portion and adjustable means for frictionally and detachably engaging the same with the cheek-piece of the plane-stock.

3. A side handle for a plane comprising, a body portion D, a flat lip on one side, and an adjustable lip on the opposite side, said lips being adapted to engage with the plane-stock.

4. A side handle for a plane, comprising, a body portion, lips on opposite sides thereof, one of said lips being adjustable and one of said lips being hooked.

Signed at New Britain, Connecticut, this 24th day of October, 1902.

JUSTUS A. TRAUT.

Witnesses:
H. S. WALTER,
W. A. BLAKELY.

No. 718,679 – Plane (Justus A. Traut) (1903)

[paiddownloads id=”578″]718679

UNITED STATES PATENT OFFICE.

_________________

JUSTUS A. TRAUT, OF NEW BRITAIN, CONNECTICUT.

PLANE.

_________________

SPECIFICATION forming part of Letters Patent No. 718,679, dated January 20, 1903.
Application filed August 16, 1902. Serial No. 119,845. (No model.)

_________________

To all whom it may concern:

Be it known that I, JUSTUS A. TRAUT, a citizen of the United States, residing in New Britain, in the county of Hartford and State of Connecticut, have invented certain new and useful Improvements in Planes, of which the following is a specification.

This invention relates to the class of planes, especially those used for forming grooves and tongues to match; and one of the principal objects thereof is to provide in a single structure means for forming a groove and means for forming a corresponding tongue, thereby accomplishing the same result as is usually attained by the use of a pair of match-planes.

In the accompanying drawings, Figure 1 is a side elevation of a duplex plane made in accordance with my present improvements. Fig. 2 is a plan view, partly in section, of the plane. Fig. 3 is a vertical cross-section taken on line x x of Fig. 2 and looking in the direction of the arrow. Fig. 4 is a perspective, taken partly in section, of the middle portion of the plane-stock; and Fig. 5 is a cross-section taken on the line y y of Fig. 2 looking in the direction of the arrow.

In the several views similar parts are designated by similar characters of reference.

The stock 1 of the plane is of extra width, so as to accomrnodate two cutting-irons 2 and 3, the former being formed for cutting a tongue upon the edge of a board and the latter being formed for cutting a groove to match said tongue. These cutting- knives are set reversely one to the other upon upwardly and rearwardly inclined beds 4 and 5, which are integral with the stock, and the latter is provided upon one side with a throat or mouth 6 for the cutting-iron 2 and upon the other side with a throat 7 for the cutting-iron 3. The stock is also formed with a sole 8 to match the tongue-cutter 2 and a sole 9 to match the groove-cutter 3, said soles being separated by a guiding-flange 10, depending from the stock. It will be observed each of the throats 6 and 7 is open at its outer side, thereby affording clearance in use and also facilitating the construction of the plane, and that each throat is formed opposite the body portion 1a of the other sole. At the front of each throat is formed an upwardly and forwardly extending integral apron 11, and these aprons are joined to a high rib 12, integral with the stock and rising therefrom between the cutting-irons 2 and 3. Said rib extends at each end beyond the throats, whereby the stock is effectually stiffened, thereby adapting the plane, although of light construction, to meet all the requirements of the art. It will be seen also that each of the inclined beds 4 and 5 is joined at its inner side to the rib 12, thereby giving an extra stiffness to the rib and stock, and, further, that each of the throats is surrounded on three sides by a continuous integral rib or box-like structure, which minimizes the liability of chattering of the plane. It will also be seen, as at Fig. 4, that the rib 12 preferably forms a substantial continuation of the pendent guiding-flange 10. The stock is provided at its ends with handles 13 and 14, arranged one reversely to the other, so that either may be used in connection with its associated cutting-iron and so that, if desired, the operator may use both hands in holding the plane, which is often a great convenience. Preferably each handle is in line longitudinally of the stock with its associated cutting-iron, as illustrated at Figs. 2, 3, and 5, although they may be otherwise arranged within the scope of my improvements. The illustrated construction affords ample clearance for the hand of the operator. The cutting-irons may be held upon their beds or sides by clamping irons or bows 15 and 16, each of which may be provided upon its inner side with an ear 17, which is attached by a screw 18 to the vertical side of the stiffening-rib 12, said ear 17 being formed between the ends of the clamping-iron, and the latter having at its upper end a clamping-screw 19, threaded into the clamping-iron and bearing against the cutting-iron, so that by driving said screw pressure is brought upon the cutting-iron both near the cutting-point thereof and also at the upper portion thereof, thereby obtaining steadiness ofthe cutting-iron in operation.

It will be observed that one of the principal features of the stock illustrated relates to the combination between that portion of the stock which carries one of the cutters with the other portion of the stock which carries the other of the cutters. It will be seen that owing to the provision of two diverse soles, with corresponding cutters, a broader and stiffer stock is formed than would be required for a single cutter. It will also be noted that since the two soles are built or formed upon a single member the central vertical rib 12, which constitutes a truss or stiffening member for the stock, constitutes such stiffening member in respect of each of the two soles or planing devices which are comprised in the complete implement. Furthermore, the same double construction and double utility obtains with respect to the guiding-flange 10, which depends from the stock.

A further important advantage obtained by the described construction pertains to the manner in which the plane-body is strengthened at the points where the mouths are located. Since these months are each open on one side, each sole, considered by itself, is correspondingly weakened; but by reversing the arrangement of the cutters not only is the single guide-plate 10 brought into proper position for use with both of the cutters, but the two mouths are also located at different points in the length of the stock, so as not to come adjacent one to the other. This organization brings a solid or uncut portion of one side of the stock adjacent to the plane-mouth that is formed in the other side of the stock, considering the stock as a whole. Thus at points 1a in Fig. 2 portions of the soles constitute lateral reinforcing-ribs which join the main vertical member or web 10 12 of the stock, and so reinforce the same and produce a very rigid construction even when the stock is made so thin as to produce a plane of relative light weight. In Figs. 3 and 5 these two portions of the stock are clearly illustrated and indicate the exceptional advantages obtained in an implement of this general class by combining a pair of planes into a single structure. It will further be perceived that the finishing of the bottom of the plane, including all of the surfaces of the soles and of the gage-plate or filange 10, may be accomplished at one milling operation. Moreover, the increased strength obtained by the invention greatly facilitates the milling operation, since the casting has great rigidity, notwithstanding the open plane-mouths. Thus the plane is inexpensive to produce, as well as having advantages for the user. By combining the two planes into one implement a much less total weight is required for the complete outfit than in the case of two separate implements usually furnished for this class of work. The advantage is obtained of additional strength due to the presence in whichever of the two planing devices may be for the moment employed of the stability and rigidity due to the reinforcement thereof by the companion part not then in direct use.

It is convenient to have a plane with two handles, since it may by this means be more reliably guided in the hands of the workman. The reversed mounting of the two handles is a convenience for this purpose.

It will be observed that the plane is duplex in that it has two cutting-irons, that the single stock is provided with two independent soles each having a cutting-iron, that the cutting-irons are independently attachable and diverse or formed for making different cuts one from the other, that said irons are mounted at different points in the stock — that is, so that their cutting points or portions do not coincide one with the other — that the guiding flange or plate 10 is between the cutting edges of the irons 2 and 3 and extends substantially the entire length of the sole to stiffen the same and is provided upon both sides with guiding-surfaces, as at 10a and 10b, that the rib 12 is disposed between the cutting-irons 2 and 3, forms a substantial continuation of the guiding-flange 10, is integral with the stock 1, and extends at each end beyond the months or throats 6 and 7, and that the aprons 11 form angular continuations of said rib.

Variations may be resorted to within the scope of my invention, and portions of my improvements may be used without others in various kinds of planes.

Having described my invention, I claim —

1. A duplex plane having a single cast-metal stock which is provided with two diverse plane-irons, one thereof at each side of the stock, and an integral guiding-flange projecting below the sole of the stock and between said cutting-irons; said stock being in the form of a thin flat plate at right angles to said flange, so that a cross-section of the sole and flange resembles a T.

2. A duplex plane having a single cast-metal stock which is provided with two diverse plane-irons, one thereof at each side of the stock, and an integral guiding-flange projecting below the sole of the stock and between said cutting-irons, said flange extend-ing substantially the entire length of the sole, to stiffen the same; said stock being in the forrn of a thin flat plate at right angles to said flange, so that a cross-section of the sole and flange resembles a T.

3. A duplex plane having a single cast-metal stock which is provided with two diverse cutting-irons, one at each side of the stock, and one reverse to the other, and an integral guiding-flange projecting below the sole of the stock and between said cutting-irons, said stock consisting of a thin fiat plate, and having throats at widely-separated points in its length.

4. A duplex plane having a single cast-metal stock which is provided with two diverse cutting-irons, one at each side of the stock, said stock consisting of a thin sole and an integral guiding-flange projecting below the sole and between said cutting-irons; an integral trussing-rib also rising from the stock and extending longitudinally thereof.

5. A duplex plane having a single cast-metal stock which is provided with two diverse cutting-irons, one at each side of the stock, said stock consisting of a thin sole and an integral guiding-flange projecting below the sole, and also having an integral guiding-rib which rises from the stock and extends longitudinally thereof, and forms a substantial continuation of said guiding-flange, said flange and rib being between said cutting-irons.

6. A duplex plane having a stock of cast metal upon which are formed two diverse soles, cutting-irons to match said soles, and an integral stiffening-rib rising from said stock between said irons.

7. A duplex plane having a single stock of cast metal which is provided with two diverse cutting-irons one mounted reversely to the other, and a rib integral with said stock and rising therefrom between said plane-irons and extending at each end beyond the throats in the stock.

8. A duplex plane having a single stock of cast metal which is provided with two diverse cutting-irons mounted one reverse to the other at different points along said stock, a rib integral with said stock and rising therefrom between said irons and extending at each end beyond the throats in the stock, and an integral guiding-flange depending from the sole of the stock.

9. A duplex plane having a single stock of cast metal which is provided with two diverse cutting-irons one reverse to the other and mounted at different points along said stock, a rib integral with said stock and rising therefrom between said cutting-irons and extending at each end beyond the throats in the stock, and an integral guiding-flange depending from the sole of the stock; each of said throats being open at its outer side.

10. A duplex plane having a single stock of cast metal which is provided with two diverse cutting-irons one reverse to the other and mounted at diderent points along said stock, a rib integral with said stock and rising therefrom between said irons and extending at each end beyond the throats in the stock, and an integral apron rising from the stock at the front of each throat, said aprons forming angular continuations of said rib.

11. A duplex plane having a single stock of cast metal which is provided with two diverse cutting-irons one reverse to the other and mounted at different points along said stock, a rib integral with said stock and rising therefrom between said irons and extending at each end beyond the throats in the stock, an integral apron rising from the stock at the front of each throat, said aprons forming angular continuations of said rib, and an integral guiding-flange depending from the sole of the stock and extending substantially the entire length thereof, and forming a substantial continuation of said rib.

12. A duplex plane having a single stock of cast metal which is provided with two diverse cutting-irons one reverse to the other and mounted at different points along said stock, a rib integral with said stock and rising therefrom between said irons and extending at each end beyond the throats in the stock, and a bed-plate extending backward and upward from each throat, said bed-plates being integral with the stock and being joined to said rib at their inner sides.

13. A duplex plane having a single stock of cast metal which is provided with two diverse cutting-irons one reverse to the other and mounted at different points along said stock, a rib integral with said stock and rising therefrom between said irons and extending at each end beyond the throats in the stock, a bed-plate extending backward and upward from each throat, said bed-plates being integral with the stock and being joined to said rib at their inner sides, and an integral guiding-flange depending from the sole between said plane-irons.

14. A duplex plane having a single stock of cast metal which is provided with two diverse cutting-irons, one reverse to the other and mounted at different points along said stock, a rib integral with said stock and rising therefrom between said irons and extending at each end beyond the throats in the stock, a bed-plate extending backward and upward from each throat, said bed-plates being integral with the stock and being joined to said rib at their inner sides, and an integral apron rising from the stock at the front of each throat, said aprons forming angular continuations of said rib.

15. A duplex plane having a single stock of cast metal which is provided with two diverse cutting-irons one reverse to the other and mounted at different points along said stock, a rib integral with said stock and rising therefrom between said irons and extending at each end beyond the throats in the stock, a bed-plate extending backward and upward from each throat, said bed-plates being integral with the stock and being joined to said rib at their inner sides, an integral apron rising from the stock at the front of each throat, said aprons forming angular continuations of said rib, and an integral guiding-flange depending from the sole of the stock between said irons and extending for substantially the entire length of the sole and forming a substantial continuation of said rib.

16. A duplex plane having a stock of cast metal which is provided with diverse cutting-irons and corresponding soles, the throat in each sole being opposite to the body of the other sole.

17. A duplex plane having a stock of cast metal which is provided with diverse cutting-irons and corresponding soles, the throat in each sole being opposite to the body of the other sole, and continuous integral rib portions rising from the sole between the plane-irons and extending along the front and back and inner side of each throat.

18. A duplex plane having a stock of cast metal which is provided with diverse cutting-irons and corresponding soles, the throat in each sole being opposite to the body of the other sole, and continuous integral rib portions rising from the sole between the plane-irons and extending along the front and back and inner side of each throat, said throats being open at their outer sides.

19. A plane having a cast-metal stock which is provided with a cutting-iron, and also having an integral rib rising from the stock and extending longitudinally thereof, beyond the throat of the stock, said throat being open on the side opposite said rib, an integral part projecting laterally from said rib and a clamping-iron having a bearing upon said projecting part.

20. A duplex plane having a stock of cast metal upon which are formed two diverse soles, cutting-irons to match said soles, an integral stiffening-rib rising from said stock between said irons, and clamping-irons having bearings on said rib.

21. A duplex plane having a single stock of cast metal which is provided with two diverse cutting-irons, a rib integral with said stock and rising therefrom between said plane-irons and extending at each end beyond the throats in the stock, clamping-irons having ears whereby they are pivoted to said rib, and clamping-screws for said clamping-irons.

22. A duplex plane having a single stock of cast metal which is provided with two diverse cutting-irons mounted one reversely to the other, a rib integral with said stock and rising therefrom between said plane-irons and extending at each end beyond the throats in the stock, clamping-irons having between their ends ears which have bearings upon said rib, and clamping-screws at the upper ends of said clamping-irons.

23. A duplex plane having a single stock of cast metal which is provided with two diverse cutting-irons mounted one reversely to the other, a rib integral with said stock and rising therefrom between said plane-irons and extending at each end beyond the throats in the stock, clamping-irons having between their ends ears which have hearings upon said rib, clamping-screws at the upper ends of said clamping-irons, and an integral guiding-rib depending from the sole of the stock.

JUSTUS A. TRAUT.

Witnesses:
EBEN STRONG,
FRANK L. TRAUT.

No. 710,678 – Plane (Charles H. Fox) (1902)

[paiddownloads id=”574″]710678

UNITED STATES PATENT OFFICE.

_________________

CHARLES H. FOX, OF NEW BRITAIN, CONNECTICUT, ASSIGNOR TO
THE STANLEY RULE & LEVEL COMPANY, OF NEW BRITAIN, CONNECTICUT,
A CORPORATION OF CONNECTICUT.

PLANE.

_________________

SPECIFICATION forming part of Letters Patent No. 710,678, dated October 7, 1902.
Application filed December 31, 1901. Serial No. 87,942. (No model.)

_________________

To all whom it may concern:

Be it known that I, CHARLES H. FOX, a citizen of the United States, residing in New Britain, in the county of Hartford and State of Connecticut, have invented certain new and useful Improvements in Planes, of which the following is a specification.

This invention relates to bench-planes; and it consists, substantially, in the improvements hereinafter more particularly described.

Without attempting to enumerate the advantages of the present invention by comparison with other planes hitherto devised it may be stated that the present invention has for its object to provide a plane of simple and effective construction and organization and one in which the plane mechanism is economically and compactly seated in place upon the stock in such manner as to overcome or prevent any tendency to chattering ot the operative portion of the plane-iron, and also to provide an extended bearing for the rear or under side of the supporting-frame of the plane mechanism, and to greatly strengthen the fastening for such frame without materially adding to the weight of the plane.

A further object is to provide means for preventing dislodgment or disorganization of the plane mechanism either in part or in entirety due to any tendency thereof to rise from its seat upon the stock, from drag upon the plane-iron, or from other causes.

A still further object of the invention is to provide means for fastening the supporting-frame to the stock in the most. rigid and secure manner, while readily permitting vertical or up and down adjustments of such frame for the purpose of effecting changes in the position of a wearing-sole in conformity with the needs thereof, and also to provide means whereby the up and down adjusting devices for the plane-iron are housed in part and protected against accidental displacement in the use of the plane.

The above and additional objects are attained by means substantially such as are illustrated in the accompanying drawings, wherein —

Figure 1 is a longitudinal sectional elevation of a plane embodying my improvements, said view being taken just to one side of the median line of the width of the stock, several of the parts being shown in elevation. Fig. 2 is a top or plan view thereof with the plane mechanism removed. Fig. 3 is a central longitudinal sectional view of the top iron of the plane. Fig. 4 is an enlarged view similar to Fig. 1 to more clearly indicate the construction and organization of parts or elements comprising or constituting the plane mechanism, the stock or body of the plane being broken off at each end. Fig. 5 is also a similar view taken to one side of the median line of the width of the stock and just to the outer side of one of the fastening-screws for the frame of the plane mechanism, so as to clearly show the construction and organization. Fig. 6 is a view looking at the rear or under side of the supporting-frame for the plane mechanism, said plate being minus any of such mechanism as well as the adjusting elements for the plane-iron; and Fig. 7 is a view looking at the front or upper side of the supporting-frame, the stock and top iron being shown in vertical section and the laterally-adjusting lever for the plane-iron being partly broken off.

Before proceeding with a more detailed description it may be stated that in the practice of my invention I provide the body or stock of the plane of any suitable wood, and I form therein from top to bottom an opening the surface of the rear wall of which is inclined to provide a seat of proper angle or inclination for the plane-iron mechanism and the surface of the front wall of which is specially constructed at the bottom of the stock to cooperate with the lower end of the frame of the plane mechanism, as and for the purpose hereinafter specifically explained. To provide an extended and continuous bearing-surface for the supporting-frame of the plane mechanism, I extend the rearwardly and upwardly inclined surface of the rear wall of the opening in the stock some distance above the top of the stock, and preferably such extension is in duplicate with the parts thereof on opposite sides of the median line of the width of the stock. The supporting-frame is provided separately with some suitable laterally and vertically adjusting devices for the plane-iron, and the said plane-stock and supporting-frame are so constructed that the principal parts of the said vertically-adjusting devices are snugly and conveniently housed in such manner as not to become broken or disarranged accidentally while the plane is in use, yet readily accessible for adjusting or changing the position of the plane-iron. Preferably the upward extensions of the surface of the rear wall of the opening in the stock are of metal, constituting integral parts of the plane-iron, and the supporting-frame of the plane mechanism is provided with a sole or wear plate receiving the wear of the plane and havinga throat for the play of the operative end of the plane-iron. The supporting-frame is also otherwise specially constructed at its lower end to cooperate with the said specially-constructed part of the surface of the front wall of the plane-opening to prevent uprising or dislodgment of said frame and the other parts of the plane mechanism supported or carried thereby, and preferably, also, the fastenings for the frame are introduced into the said duplicate metal extensions of the rear surface of the opening of the stock rather than in the stock itself. The construction enables use to be made of plane stocks or bodies of comparatively limited height and is otherwise especially advantageous, both from a commercial and practical point of view.

Specific reference being had to the accompanying drawings, wherein an embodiment of my invention is shown and which maybe the preferred embodiment, A represents the stock or body of the plane, constructed of any suitable wood for the purpose and formed therein at the proper point of its length with an opening a, the surface b of the rear wall of which is rearwardly and upwardly inclined at an angle of about forty-five degrees (45°) to the base of the plane, so as to give to the plane mechanism seated upon such surface the proper inclination within such opening. The lower corner of the front wall c of said opening a is also cut off or beveled to produce a similarly-inclined shorter surface d, which is preferably parallel with the said surface b, for the purpose hereinafter understood. In the top surface thereof the said plane stock or body is cut out or recessed a short distance centrally thereof, so as to provide a cavity e, leading rearwardly from the opening a and designed to partially receive the operating element of the up and down adjusting devices for the plane-iron in the manner shown and as hereinafter specifically set forth. Secured in place upon the upper portion of the stock or body by means of screws or similar fastenings f is the top iron B, which is constructed with parallel and slightly raised or elevated side portions g g, the inner surfaces of which may be practically flush or even with the corresponding surfaces of the sides of the opening a, already referred to. Said side portions g g are united by an integral rib h, connecting the same at about the upper forward edge of said opening a, and forwardly of said rib the said top iron is formed with a short longitudinal extension i, on which is seated the knob or forward handle j of the plane, said knob being held in place by a screw k, entering the stock through a suitable opening therefor in said forward extension. The rearward ends of the side portions g g of the top iron gradually decrease in height and slightly converge at l l, whence they terminate in parallel elevated flanges m m, formed on a rearward longitudinal extension n, and upon which latter, between said flanges, is seated the base o of the main or rear handle C of the plane, said handle being securely fastened in place by a screw-rod p, passing through the same and secured at its lower end in a threaded opening in the said extension n therefor. The forward part of said rearward extension it of the top iron is cut out or notched at n’, so as to bring the inner edges e’ thereof about even with the side and rearward edges of the recess or cavity e of the plane-stock, and thus are formed the integral flanges s s of the top iron, which are seated upon the upper surface of said stock on opposite sides of the said recess or cavity therein. Said flanges are each provided with a hole or opening for the passage of a screw t, which enters the stock on opposite sides of the median line of the width of the same, and thus is an extremely rigid and compact structure derived. Said side flanges s s of the top iron are each widened somewhat at s’, and they also constitute bases for preferably duplicate integral supports u u for the frame D of the plane mechanism E, said supports of course being also on opposite sides of the median line of the width of the plane and being integral at the outer sides thereof with the adjacent inner surfaces of the rear ends of the side portions g g of the top iron. In this way increased width or thickness of each of the said supports it is obtained for the formation therein of a threaded opening v for the reception of a screw w for securing the supporting-frame D in place and which construction does not materially add to the weight of the plane. The forward edges or faces x x of said supports u u are faced off in the same plane and at an upward and rearward inclination corresponding to the angle of inclination of the surface b of the rear wall of opening a in the stock, and thus said faces of the said supports constitute practical upward continuations or extensions of said surface b. In this way an increased, even, and continuous bearing-surface is obtained for the under side of the supporting-frame D of the plane mechanism, as is obvious. The frame D is substantially a rectangular plate the upper part d’ of which is comparatively thin, while the remaining lower portion thereof is of increased thickness, for the purpose hereinafter understood, although recessed or hollowed out, as at y y, on its upper surface, so as to lessen the weight thereof as much as possible without any less of strength. At its lower end the said supporting-frame is formed or provided with a sole d2, in which is formed transversely a throat d3 for the player working of the lower and operative end of the plane-iron F in a manner well known. Also formed with said frame and preferably on the upper part of said sole-plate forwardly of the throat therein is a wedge G, the forward surface of which is at a corresponding angle to the undercut or beveled portion d of the surface of the front wall of the said opening a in the stock. Formed on the under side of the frame D, about centrally thereof, is a pendent or hanging portion d5, having in its rear face a threaded opening in which works the inner end of an adjusting-screw d4, having thereon an operating-button d5, provided with collars 1 1, forming between them a circumferential groove 2, in which are received on opposite sides of said screw the ends of the furcated arm 3 of a swinging lever 4, having its bearing on a rod or pin 5 between short flanges 6 6, also formed on the under side of said frame, the end or nose of the shorter arm 7 of such lever protruding forwardly through an adjacent opening or slot 8 in the said frame, all as shown. The said elements constitute the usual or well-known vertical or up-and-down adjusting devices for the plane-iron F, and it will be seen that the same are brought to a comparatively low position with reference to the plane-stock, the operating-button d5 thereof extending partly into the cavity e of the stock, thus economizing greatly in the space consumed or occupied by said devices as a whole. Moreover, in virtue of the lower part of the frame D being of an increased thickness downwardly, beginning at a point somewhat below the point of suspension of the lever 4 thereon, said adjusting devices are thus carried forwardly a distance about equaling the difference of thickness between the two parts of said frame, and are thereby caused to be snugly housed in the space between the inclined extended bearings or supports u u. In this way the operation of the adjusting devices in question may be effected without difficulty, while at the same time they are prevented in large measure from breakage or disarrangement by contact with external objects in the handling of the plane. Above the opening or slot 8 in the upper part of frame D is a recess 9, in which works a button 10, carried on the end of the well-known form of laterally-adjusting lever 11 for the plane-iron pivoted at 12 on the frame, the said button engaging, as usual, the sides or edges of a longitudinal slot or opening 13 in said plane-iron. Screwing in to the said supporting frame or plate D ofthe frame mechanism, about centrally of the width thereof and at a point about corresponding to the upper surface of the plane-stock, is an upwardly and forwardly projecting screw 15, over which is fitted the plane-iron F, having secured thereto by means of screw 16 the ordinary top plate F2, and above the top plate and also fitting ever the screw by means of an opening or slot 17 therein is the usual clamping device or lever 18, with the edges of the said slot therein engaging under the head of said screw, the parts all being held together within the opening a of the stock by the clamping action of said clamping-lever 18 caused by the cam 19 when turned down against the top plate by means of its operating-lever 20, the said cam bearing directly upon a spring 21, secured on the under side of said clamping-lever and all operating in an obvious manner. Formed in the said supporting frame or plate D, on either side of the median line of the width thereof, are the slots er openings 25, the lower edge of each of which is substantially in the plane of the longer axis of screw 15, and the length of each of which is only suflicient for maximum vertical or up-and-down adjustments of the frame, whereby the sole d2 at the lower end thereof may be carried to any extent of protrusion beyond the under or wearing surface of the stock by which to practically receive and sustain the greater part of the wear of the plane in use. Said slots or openings 25 are also in direct line with the screw-holes v v in the extensions or supports u u, the original position of such openings prior to any adjustment of the frame being about midway the length of the slots, substantially as shown in Figs. 4 and 5, and the frame is chamfered or countersunk at 27 around the edges of said slots, so as to bring the heads of the fastening-screws w for the frame at least flush with or below the upper surface of the latter, and thereby enabling an even seating of the plane-iron upon said frame. From the construction and organization shown and described it will be seen that the fastening-screws w for the frame D are brought into the nearest practical proximity or relationship with the said forwardly-projecting screw 15, and thus is there partially established a counterbalance between the opposing forces acting separately on said screw 15 and the screws w, the one force tending to pull the frame outwardly or upwardly and the other tending to hold the frame (and consequently the entire frame mechanism) down upon its seat or bearing upon the stock within the opening a therein. Inasmuch, however, as the pressure or force exerted by cam 19 as well as that exerted by screws w are both on the same side of and above screw 15, which latter it will be understood is a fulcrum for the clamping bow or lever 18, there is a slight tendency to uprising of the lower end of the frame D, which tendency is successfully or effectually resisted by the forward inclined face of the wedge G firmly abutting or engaging the opposing inclined surface d of the lower part of the front wall of the said opening a, in the stock. In this way there is established a most perfect counterbalance or equilibrium of the forces acting upon the parts of the planes in different or opposing directions, thereby overcoming or preventing any tendency to vibration or chattering of the plane-iron irrespective of the degree of hardness of the wood upon which the plane is used.

It will be seen from the foregoing description, taken in connection with the accompanying illustrations, that I have provided a bench-plane possessing compactness and stability and one in which adjustments may be made readily and accurately without loss of time. The plane is strong and capable of withstanding all the handling incident to the conditions under which the same may be used, and the general commercial as well as practical advantages thereof will be apparent without further mention. It will be understood, of course, that I do not limit myself to the precise details of construction and organization of the elements of the plane, since changes may be made therein without departing from the spirit and scope of my invention.

Having described my invention, I claim —

l. A plane-stock with an opening therein having duplicate upward extensions of the surface of the rear wall thereof, such surface being of the same alinement throughout and the extensions thereof directly continuous therewith, a supporting-plate for a plane-iron seated within the opening, and fastenings for said plate entering said surface extensions.

2. A plane-stock with an opening therein the surface of the rear wall of which is rearwardly and upwardly inclined and provided with duplicate upward extensions thereof, such surface being of the same alinement throughout and the extensions thereof directly continuous therewith, a supporting-plate for a plane-iron seated within the opening, and fastenings for said plate entering said surface extensions.

3. A plane-stock with an opening therein the surface of the rear wall of which is rearwardly and upwardly inclined and provided on opposite sides of the median line of the width of the stock with duplicate upward extensions thereof, such surface being of the same alinement throughout and the extensions thereof directly continuous therewith, a supporting-plate for a plane-iron seated within the opening, and fastenings for said plate entering said surface extensions.

4. A plane-stock with an opening therein the surface of the rear wall of which is rearwardly and upwardly inclined and of the same alinement throughout, and a top iron secured to the stock and formed with duplicate directly-continuous extensions of such surface, a supporting-plate for a plane-iron seated within the opening, and fastenings for said plate entering said surface extensions.

5. A plane-stock having therein an opening the surface of the rear wall of which is rearwardly and upwardly-inclined and of the same alinement throughout, and the lower part of the front wall of which is undercut in parallelism therewith, said stock being provided with a top iron having duplicate directly-continuous extensions of such rear-wall surface, a supporting-plate for a plane-iron seated within the opening, and fastenings for said plate entering said surface extensions.

6. A plane comprising a stock having an opening therein the surface of the rear wall of which is rearwardly and upwardly inclined and of the same alinement throughout, a top iron having directly-continuous duplicate extensions of such surface located on opposite sides of the median line of the width of the plane, a plane mechanism having vertically-adjusting devices for the plane-iron housed between the extensions, and means securing the supporting member of said plane mechanism to the faces of said extensions, said means entering said extensions at the said faces thereof.

7. A plane comprising a stock having an opening therein the surface of the rear wall of which is rearwardly and upwardly inclined and of the same alinement throughout, said stock being also formed in the top thereof with a cavity extending rearwardly of said opening, a top iron having directly-continuous duplicate extensions of the rear-wall surface of the stock-opening on opposite sides of the median line of the width of the plane, a plane mechanism comprising a supporting-frame provided on the under side of the upper portion thereof with vertically-adjusting devices for the plane-iron, said supporting-frame resting upon such rear-wall surface and its extensions, and secured to the latter, and also being of increased thickness below the point of suspension of the adjusting devices thereon, whereby such devices are brought to a housed position between the duplicate extensions and partially received in the cavity in the stock.

8. A plane comprising a stock having an opening therein the surface of the rear wall of which is rearwardly and upwardly-inclined and of the same alinement throughout, said stock being also formed in the top thereof with a cavity extending rearwardly of said opening, a top iron having directly-continuous duplicate extensions of the rear-wall surface of the stock-opening on opposite sides of the median line of the width of the plane, a plane mechanism comprising a supporting-frame having duplicate slots and provided on the under side of the upper portion thereof with vertically-adjusting devices for the plane-iron, said supporting-frame resting upon such rear-wall surface and its extensions, and also being of greatest thickness below the point of suspension of the adjusting devices thereon whereby such devices are brought to a housed position between the duplicate extensions and partially received in the cavity of the stock, and screws passing through the slots of said frame and entering the openings therefor in the said extensions.

9. A plane comprising a stock having an opening therein the surface of the rear wall of which is rearwardly and upwardly inclined and of the same alinement throughout, and the lower part of the surface of the front wall of which is undercut in parallelism with such inclined surface, said stock being also formed in the top thereof with a cavity extending rearwardly of said opening, a top iron having directly-continuous duplicate extensions of the rear-wall surface of the stock-opening on opposite sides of the median line of the width of the plane, a plane mechanism comprising a supporting-frame having duplicate slots and provided on the under side of the upper portion thereof with vertically-adjusting devices for a plane-iron, said supporting-frame resting upon such rear-wall surface and its extensions and provided with a sole formed with a throat and having a wedge engaging such undercut surface, and also being of increased thickness below the point of suspension of the adjusting devices thereon, whereby such devices are brought to a housed position between the duplicate extensions and partially I received in the cavity in the stock, and screws passing through said slots and engaging the extensions.

10. A plane comprising a stock with an opening therein the surface of the rear wall of which is rearwardly and upwardly-inclined and provided with duplicate extensions beyond the top of the stock on opposite sides of the median line of the width thereof, the surface of the front wall of which opening is undercut all the way across the stock at the bottom in parallelism with such inclined surface, and a vertically-adjustable plane mechanism including a supporting-frame seated within the opening and slotted on opposite sides of the median line of the width thereof, and screws passing through the slots of the frame and entering said extensions, said frame being provided at its lower end with a sole formed with a throat for the plane-iron and having a wedge engaging such undercut surface, such rear-wall surface being of the same alinement throughout and the extensions thereof directly continuous therewith.

CHARLES H. FOX.

Witnesses:
H. S. WALTER,
W. J. WORAM.

No. 710,542 – Bench-Plane (Justus A. Traut) (1902)

[paiddownloads id=”573″]710542

UNITED STATES PATENT OFFICE.

_________________

JUSTUS A. TRAUT, OF NEW BRITAIN, CONNECTICUT, ASSIGNOR TO
THE STANLEY RULE & LEVEL COMPANY, OF NEW BRITAIN, CONNECTICUT,
A CORPORATION OF CONNECTICUT.

BENCH-PLANE.

_________________

SPECIFICATION forming part of Letters Patent No. 710,542, dated October 7, 1902.
Application filed December 28, 1901. Serial No. 87,532. (No model.)

_________________

To all whom it may concern:

Be it known that I, JUSTUS A. TRAUT, a citizen of the United States, residing in New Britain, in the county of Hartford and State of Connecticut, have invented certain new and useful Improvements in Bench-Planes, of which the following is a specification.

This invention relates to bench-planes; and it consists, substantially, in the improvements hereinafter more particularly described.

Considerable attention has been given in recent years to the construction and operation of bench-planes (both metal planes and wooden planes) with a view to increasing the general effectiveness and range of efficiency thereof, and more especially to the construction and organization of the elements or parts constituting the operative mechanism of the plane, as well as to the manner of seating and securing such mechanism within or upon the plane stock or body. Principal among the difficulties encountered in planes usually is the undue vibration or chattering of the edge or operative portion of the plane-iron, due largely to the drag or upward resistance offered by the surface of the wood operated upon, particularly in the case of hard woods. To overcome such chattering in a metal plane, it has been suggested to provide the upper surface of the sole of the plane with two steps, one raised or elevated above the other and the two constituting remotely-situated step-bearings for a so-called “frog” firmly held upon said bearings and flexed to thereby steady the same, and thus prevent chattering of the plane, while still permitting of adjustments of the plane-iron for varying the width of the throat of the plane. As is obvious, a construction or organization of the kind mentioned is not practicable with a plane having a wooden body; but, as hereinafter specifically explained, practically the same resuits are attained in a wooden plane by means of substantially the construction and organization of devices herein employed. Other difficulties and disadvantages have also been frequently met with in the construction and operation of the adjusting elements of the operative mechanisms of planes generally, I (both metal and wooden planes,) since in many embodiments hitherto devised or employed it is always diflicult and often practically impossible to effect the adjustment of one of such parts or elements without disarranging or dislocating the whole or some other part or parts of the mechanism and which is a decided objection for several reasons. Still further, in many instances hitherto the so-called “wooden planes” are both heavy for convenient use and comparatively expensive to manufacture on account of the considerable arnount of material employed in the construction of the essentially metallic portions thereof, and for which and other reasons the commercial advantages of the plane are greatly lessened as well as its utility.

The present invention has for its object to overcome all of the above-mentioned difficulties and disadvantages and to provide a bench-plane possessing the greatest stability between the several elements or parts thereof and also in which each part or element combines maximum strength with extreme lightness and delicacy of structure.

A further object is to greatly improve this class of tools generally, both from a commercial as well as from a practical standpoint, whereby the cost of the plane is reduced and the effectiveness and efficiency of the same enhanced over and above many planes hitherto devised with similar ends in view.

A further object of the present invention is to provide simple and effective means for preventing chattering of the operative portion of the plane-iron and also to provide a plane mechanism of great stability and compactness and one in which the up and down adjusting devices for the plane-iron may be set to any position desired irrespective of whether the said mechanism is in place within or upon the plane body or stock.

A still further object is to provide a plane mechanism adapted for use with plane stocks or bodies of dilferent standard sizes without requiring any change either in the adjustment or fastening of any of the elements thereof, all as will more fully hereinafter appear.

The above and additional objects are attained by means substantially such as are illustrated in the accompanying drawings, wherein —

Figure 1 represents a longitudinal vertical sectional elevation of a bench-plane embodying my several improvements, said view being taken substantially on the median line of the plane. Fig. 2 is a top plan view of my improved bench-plane with the operative mechanism thereof detached or removed to more clearly indicate the construction of the plane-stock, as well as the inclined seats or supports which receive and cooperate with the uppermost projections or raised bearing-surfaces on the rear or under side of the adjustable supporting-frame of said operative mechanism. Fig. 3 is a longitudinal sectional view of the top iron of the plane, taken about centrally. Fig. 4 is an enlarged sectional view of my improved bench-plane, taken about on the same line as in Fig. 1, the stock or body of the plane being broken off at the ends. Fig. 5 is a view looking from the rear or under side of the adjustable supporting-frame for the operative mechanism of the plane (appurtenances being removed) to more clearly indicate the arrangement and location of the projections or raised bearing-surfaces on said frame. Fig. 6 is a sectional view on the line X X of Fig. 7 to indicate more clearly one of the slots and screws or similar fastenings by which the adjustable frame of the plane mechanism is confined in place upon the seats therefor, said view being minus the plane-iron and its adjusting devices, as well as the top plate and clamping bow or lever shown in Figs. 1 and 4. Fig. 7 is a vertical transverse sectional view looking toward the right of Fig. 1 and being partly broken away at one side to indicate one of the screw-holes in the plane-stock and also being minus the forwardly-adjusting device for the plane-iron, as well as said latter element and the top plate and clamping bow or lever shown in Figs. 1 and ft. Fig. 8 is a diagrammatic view illustrative of the adaptation of my improved plane mechanism to plane bodies or stocks of different sizes or dimensions.

Before proceeding with a more detailed description it may be stated that in carrying my invention into effect I provide the body or stock of the plane of any suitable wood adapted to the purpose, and I form therein an opening extending from top to bottom thereof for the reception of the operative mechanism of the plane, which mechanism comprises suitable ordinary adjusting devices for the plane-iron both in vertical and lateral directions. The said operative mechanism also includes an adjustable supporting-frame constructed with a sole-plate in which is formed the throat for the proper working of the cutting edge of the bit or plane-iron, and said sup porting-frame is otherwise constructed in the manner and for the purpose hereinafter specifically explained. When the elements of the operative mechanism of the plane ar properly adjusted relatively to each other and the supporting-frame thereof also adjusted and secured in place within the stock, opposing forces or strains are set up or established between the said frame and stock at different points, as vvell as between the frame and clamping-bow at substantially corresponding points, the tendency of such strains or forces in one direction being to firmly hold or press the remote bearing-surfaces of the frame to their supporting-seats and those in the other direction to dislodge or pull the frame therefrom, whereas in virtue of the peculiar construction and organization of the different cooperating parts the said forces tend to slightly bend or flex the frame between its bearings on the stock, and the resultant effect is to establish equilibrium and-perfect stability between the several elements ofthe plane mechanism, and thereby prevent vibrating action of the supporting-frame, and consequently effectually preventing or overcoming any tendency of the operative portion of the bit or plane-iron to chatter or vibrate in the use of the plane either upon hard or soft woods.

Through the vertical adjustments of the said supporting-plane for the plane mechanism the amount of protuberance or projection of the wearing-sole from the under or operating surface of the plane-stock may be varied or altered so as to receive practically much the greater part of the wear of the plane, and it will be apparent that in any of such adjustments the vertical position of the operative edge of the plane-iron will be correspondingly altered or changed. The lateral as well as the vertical adjustments of the plane-iron, however, are effected independently of the adjustments of said frame, and, as will be seen hereinafter, the devices for effecting the latter adjustments may be set before introducing or seating the plane mechanism within the stock. Moreover, the organization is such that even after the said plane mechanism is seated within the stock either one or all of the adjustments mentioned may be made without dislocation of any one or more of the elements or parts. My improved plane mechanism is complete in itself and constitutes a compact and stable structure adaptable to planes of different heights or dimensions within certain limits, and thus said mechanism may be kept “in stock” in large quantities and sold to the trade separately from the bodies of the planes, if desired. This also is a great advantage in that said mechanism may be applied to plane-bodies of one size or another either at the time of sale or when the planes are sent to market or else when substituting either a plane-body or one set of mechanism for another, as in instances of renewals and repairs.

Specific reference being had to the accompanying drawings, A represents an ordinary plane stock or body constructed of any suitable wood and formed at a suitable point in the length thereof with an opening a, extending from the upper surface b to the lower and operating surface, said opening being for the accommodation and working of the parts or elements of which the plane mechanism is made up or constituted. The surface of the front wall of the opening a may be straight at d for its full height, if desired, whereas at a suitable distance from the under side of the stock said wall is preferably undercut, so as to form a downwardly and forwardly inclined beveled surface e, as shown. The surface of the rear wall of said opening is inclined upwardly and rearwardly at f substantially at an angle of forty-five degrees (more or less) from the point g of the stock, thus decreasing the length of the opening toward the bottom of the stock, as shown, the width of said opening between the sides of the stock being of equal extent throughout. The beveled or inclined surfaces e and f are parallel with each other, the said surface f being longer or higher than the surface e and serving not only to position the plane mechanism within the stock, but also in part as a seat and resistance for the lower end of the adjustable supporting-frame of the plane mechanism, to be hereinafter described.

Secured to the upper surface of the stock or body of the plane in any suitable manner, and preferably by means of screws, such as h, is the top iron C, constructed of a single piece and formed with the slightly-elevated centrally-disposed side portions i i, connected together at the upper edge of the forward wall of opening a of the stock by means of a slightly-raised rib j, said side portions having their inner surfaces substantially even or flush with the inner surfaces of the two sides of said opening, while the outer surfaces thereof are preferably somewhat within the side or corresponding surfaces of the plane-stock, this construction tending to greater strength and more equal distribution of weight and strain throughout the plane structure. The said side portions i i of the plane-iron extend rearwardly a suitable distance beyond the upper edge of the rearwardly-inclined surface of the rear wall of said opening a of the stock, and they are turned or inclined inwardly at k k, whence they merge or terminate in parallel strengthening-flanges l l, between which is snugly seated the elongated base in of the rear handle n of the plane. The said handle n is securely fastened in place by means of a rod o passing down through the same, and the lower-threaded end of which is received in a projection o’ on the top iron, having a similarly-threaded opening to receive it, said rod being provided with a screw-cap o” at its upper end fitting a countersink at the upper surface fn’ of the handle. From this construction it will be seen that the said handle is securely braced against lateral strains in the manipulation of the plane and that the fastening therefor is also largely relieved of such strains, thereby tending to greater effectiveness and security of fastening. Seated upon the forward flanged portion i2 of the top iron is the forward knob or handle i3, secured in place by one of the screws h, entering the stock or body A, as shown.

Situated upon the upper surface of the plane stock or body A, intermediate or between the raised side portions of the top iron C, are preferably two seats or supports s s, which are each substantially pyramidal in side view, with the upwardly and rearwardly inclined edges or faces s’ s’ thereof preferably flush with and constituting practical extensions or continuations of the said upwardly and rearwardly inclined surface f of the opening of of the stock, said seats also cooperating with the supporting-frame of the plane mechanism, as already suggested and to be presently explained. These seats s s may be mounted in position in various different ways; but preferably I provide bases s2 s2 therefor, joined together by an integral connecting base portion s3, and said bases are also in turn preferably integral with the corresponding side portions i i of the top iron, as indicated at s4 s4. The bases are firmly held in position upon the upper surface of the plane-stock, (as are the remaining portions of the top iron C,) and from the construction and organization herein shown it will be seen that an eminently strong and stable structure is had or obtained. Said inclined seats by being thus widely separated from each other enable a great saving to be had in the amount of metal employed in their construction, and an additional saving of metal is also derived in dispensing with any connection between the outer sides of the seats and the opposing inner sides of the top iron, excepting at the bases s2 s2, as already described. In this way also the structure is rendered considerably lighter without loss of strength, while the space between the said inclined seats is utilized to partially receive and accommodate the working of the vertically-adjusting devices for the plane-iron, as will hereinafter appear.

Formed in the rearwardly and upwardly inclined wall f of the opening a of the stock or body A and at predetermined points on opposite sides of the median line of the width of the plane are suitable openings f2 f2, (see Fig. 2,) which extend into said body or stock substantially at right angles to such inclined surface, said openings each being for the reception of means, such as a screw u, for securing the supporting-frame D of the plane mechanism B firmly in place. Said supporting-frame comprises, essentially, a substantially rectangular plate having therein suitable oblong slots or openings v v, (see Fig. 5,) through which pass the fastening-screws u, (but one being shown,) the said slots or openings being for the purpose of enabling the said supporting-frame to be moved or adjusted on the screws with respect to the plane-stock. The entrances to the openings f2 f2 in the stock are at the highest available point of the stock by which to bring the heads of the screws as close as practicable to and yet below the axis of the forwardly-projecting screw E, which fits in said plate in line with the transverse center thereof. The purpose of this organization will be fully understood hereinafter, and it may be stated at this point that the base portion s3 of the top iron, as well as the upper surface of the plane-stock, are each preferably correspondingly notched or out out at y y’, by which to accommodate the inner end of said screw E in the event of any inward adjustments thereof being made at any time, though in most instances said notches may be dispensed with. It may also be here added that the upper surface of frame D is sunken or recessed at v’ v’, so as to bring the outer surface of the heads of said screws it in a plane at least flush with or slightly below the highest parts of the frame-surface to thus enable the proper seating in place of the plane-iron D2, hereinafter referred to. The said supporting-frame D is made very thin and strong, as will be observed, and to further reduce the weight thereof it is preferably channeled out on the upper surface, as shown at z, for instance, thereby leaving slightly-raised surfaces ,z’ z2 z3, and z4, and upon which rests the under surface of said plane-iron, this latter element having an opening for the passage of screw E, and leading from which opening is the usual slot 2, between the sides of which extend the effective portions of the usual lateral and vertical adjusting devices for the plane-iron. The said frame D is also sunken in its upper surface just above screw E to form a recess 3 for the accommodation of the head 4 of the screw which secures the top plate 4a to the plane-iron, and said plane-iron and said top plate each has the usual slot or opening 5 5a in which works the end of the upper arm 6 of the swinging yoke-lever 8, the ends of the furcated arm 9 of which are engaged by collars 10 11 on a sleeve working on a screw 12, fitted in a threaded opening in a bearing 13 on the under side of frame D and having a head 14 for manipulation thereof. These elements constitute well-known vertical adjusting devices for the plane-iron; but attention is called to the compact organization herein shown and provided whereby said bearing for the adjusting-screw is accommodated between the elevated inclined seats 5 3 on the upper surface of the plane-stock. Pivoted at 15 upon the upper surface of frame D is the usual laterally-adjusting lever 16 for the plane-iron, said lever having the button 17, engaging the sides of slot 2 of said iron, while secured in place upon the said top plate 4a is the usual clamping-bow 18, having therein a slot 19, the edges of which are engaged by the head of screw E, the said bow having on its under side a spring 20, which is forced against the upper surface of the top plate 4a by means of a cam 21 on a lever 22, working in the upper end of the bow in a well-known way, the action of said cam at the same time being to throw the upper end of the bow upwardly or outwardly from said top plate. By turning said cam-lever upwardly or outwardly the parts are loosened sufficiently to enable any desired adjustments of the plane-iron to be made, or the elements above the frame D may then be temporarily removed for the purpose of adjusting the said frame upon its fastening-screws.

The supporting-frame D for the plane mechanism is formed with a wearing-sole 25, having therein the throat 26 for the cutting or operative end of the plane-iron, and immediately in front of the throat said sole is constructed with a wedge 27, extending the full width of the opening a in the stock, the forward inclined face 28 of which wedge snugly fits against the undercut or bevel e of said stock. Said wedge is united or connected with the forward or upper surface of the frame mechanism, at the edges thereof, by means of integral side plates 30, as shown, and it will be seen that one of the principal reasons for the adjustability of the said supporting-frame D is to enable the sole to be so adjusted with reference to the under or working face of the plane as to practically receive all the wear of the plane. As the sole itself wears it can be readily adjusted in compensation therefor, as is evident. Said supporting-frame D is formed on its under surface, at the lower end thereof, with a slightly-projected bearing-surface 31, extending all the way across the frame and which has its seat upon the lower part of the inclined surface f of the rear wall of opening a in the stock, it being understood, of course, that said bearing-surface is planed or dressed off parallel with said beveled or inclined surfaces e and f, and the supporting-frame itself being also parallel therewith, so as to occupy the necessary inclined position upon the plane. Also formed on the under side of said frame D at points substantially opposite the forward inclined edges or faces of the inclined seats or supports s s of the top iron are similarly-projected bearing-surfaces 32 32, (see Fig. 5,) which rest and have a firm bearing upon said seats or supports s s, the median line of the width of such surfaces being somewhat outside median lines passing between the vertical edges of each of said slots v v, this construction aiding in the flenure or bending of the frame intermediate its supports or bearings, as is evident.

To assemble the parts of the plane, the frame D is placed within the opening a of the stock, with the bearing-surfaces 31 and 32 32 thereof resting upon the several seats therefor already described, and the screws u are screwed down very tightly upon the frame after the latter has been adjusted to bring the sole-plate thereof to the desired position relatively to the bottom surface of the stock. The top iron and its plate may now be placed in position by slipping the same over the screw E, after which the clamping lever or bow is also applied in similar manner, and the cam-lever 22 is then turned downward, so as to throw the upperend of said clamping-lever outward or upward, while the spring on the under side thereof is forced against the top plate by the cam, thus holding the elements of the plane mechanism together very rigidly. In virtue of the construction of my improved supporting-frame D and cooperation between the remote bearing-surfaces thereof and the corresponding seats therefor upon the plane-stock the said frame is firmly and securely held down by means of its screws in a manner quite evident. At the same time the cam 21 is exerting a downward pressure upon the upper part of the plane-iron and its top plate, which pressure is of course communicated to and thrown upon the frame above its uppermost bearings, and simultaneously with this action the lower end of the clamping-lever is thrown downward upon the lower part of the top plate by the cam, thus exerting a counterbalancing downward pressure on this end of the supporting-frame, the head of screw E obviously operating all the while as a fulcrum for the clamping bow or lever to work on. Due to the upward and downward positions to which the ends of the clamping-bow are thrown and held by the cam 21 considerable of an outward strain is placed upon said screw E and which exerts an outward pull upon the frame D, tending to lift the latter from the remotely-situated seats therefor and which is counter to the downward pressure exerted by the screws it and the bow and cam-lever to hold the plane in place. The opposing forces thus set up tend to the establishment of perfect equilibrium between the parts and result in a bench-plane possessing the greatest stability and practicability and one in which chattering of the plane-iron is practically destroyed or overcome, due to the inherent tension at which the frame D is always held.

In some instances the present construction may be modified, to form the bearing-surfaces 31 32 32 on the stock itself and raised or elevated with reference to and parallel with the inclined surface f of the opening a in the said stock, in which case the entire lower or under surface of frame D would be formed, preferably, even or flat. A further modified construction also would be to form the inclined seats s s for the frame integral with the plane-stock rather than with the top iron; but thc construction or embodiment herein shown, however, is the one preferred in practice.

As already explained, the plane mechanism of my present invention is compactly organized and is removable in entirety from the stock and adapted to be sold to the trade separately from the stock, being also adapted to plane-stocks or bodies of different sizes, as is clearly shown in the diagrammatic view, Fig. 8. As is well known, there is but slight variation in the heights of the plane-stocks of different standard sizes per series, even though the length thereof may vary considerably, and thus, as will be clearly seen, one or the other of the stocks may be employed with the same mechanism. As is equally apparent, my improved plane-stock may also be supplied to the trade separately from the plane mechanism, but preferably provided with the top iron.

My invention thus comprises a construction and organization of elements cooperating in the production of a bench-plane supplying in ample measure practically all the present-day requirements of such a structure, both as regards its utility as well as the operational, practical, and commercial advantages thereof.

Having described my invention, I claim —

1. A plane comprising a stock having a bit and an opening for said bit, a bit-seating frame in said opening having projected bearing-supports, means for securing said frame to the stock and engaging the former between said projected supports, thus tending to flex the same, and a bit-clamping means tending to flex said frame in the opposite direction.

2. A plane comprising a stock having therein an opening the surface of the rear wall of which is continuous and of the same alinement throughout, a bit in the opening, a bit-seating frame also in said opening having remotely-situated bearings on such rear wall surface, means for securing said frame to the stock and engaging the former between such bearings, thus tending to flex the same, and a bit-clamping means tending to flex said frame in the opposite direction.

3. A plane comprising a stock having therein an opening the surface of the rear wall of which is continuous and of the same alinement throughout, a bit in the opening, a bit-seating frame also in said opening formed with slots and having remotely-situated projected bearings on such rear wall surface, screws passing through said slots for securing said frame to the stock and engaging the frame between such bearings and thereby tending to flex the same, and a bit-clamping means tending to flex said frame in the opposite direction.

4. A plane comprising a stock having therein an opening the surface of the rear wall of which is continuous and of the same alinement throughout, a bit in the opening, a bit-seating frame also in said opening formed with vertical slots on opposite sides of the median line of the width of the stock and having remotely-situated projected hearings on such rear wall surface above and below the slots, screws passing through said slots for securing said frame to the stock and engaging the frame between such bearings, and thereby tending to flex the same, and a bit-clamping means tending to flex said frame in the opposite direction.

5. A plane comprising a stock having a bit and an opening therefor, a bit-seating frame in said opening having on the under side thereof a lower broad projected surface portion bearing on the lower part of the surface of the rear wall of such opening, and also having on its under side similar projected surface portions situated on opposite sides of the median line of the width of the stock and similarly bearing on the upper part of such rear wall surface, means for securing said frame to the stock and engaging the former between said lower and upper bearings and thus tending to flex the frame, and a bit-clamping means tending to flex said frame in the opposite direction.

6. A plane comprising a stock with an opening having an upward extension of the surface of the rear wall thereof, a detachable bit-seating frame having on the under side thereof remotely-situated projected surface portions bearing on such rear wall surface and its extension, said frame being provided with an upwardly and forwardly projecting screw located intermediate said surface portion, a bit and its top-plate, a clamping-bow having a cam-lever for securing the latter elements in place, said clamping-bow having a slot the edges of which engage beneath the head of said screw, thus tending to flex the frame outwardly, and means engaging said frame between said bearing-surfaces and tending to flex the frame inwardly.

7. A plane comprising a stock with an opening the surface of the rear wall of which is rearwardly and upwardly inclined and provided with duplicate extensions beyond the top of the stock on opposite sides of the median line of the width thereof; a plane mechanism including a member having remote bearings on such inclined surfaces and extensions thereof and provided with a sole formed with a throat for the plane-iron, and adjusting means securing such member in place tending to flex the same between its supports.

8. A seating-frame for a plane-bit having on the under side thereof a lower projected surface portion, and similarly-projected surface portions remotely situated therefrom on opposite sides of the median line of the width of the frame, said frame having slots also on opposite sides of the median line of the width thereof, the median lines of the width of said slots being within the median lines of the width of said remotely-situated projected surface portions.

9. A seating-frame for a plane-bit having on the under side thereof a projected surface portion extending across the frame at the lower end, and similarly-projected surface portions remotely situated therefrom on opposite sides of the median line of the width of the frame, said frame having intermediate slots also on opposite sides of the median line of the width thereof.

10. A seating-frame for a plane~bit having a projected bearing-surface across the rear or under side thereof at the lower end and similar surfaces remotely situated therefrom on opposite sides of the median line of the width of the plane, said frame being also provided with a sole formed with a throat for the bit.

11. A seating-frame for a plane-bit having a projected bearing-surface across the rear or under side thereof at the lower end, and similar surfaces remotely situated therefrom on opposite sides of the median line of the width of the frame, said frame having intermediate slots also on opposite sides of the median line of the frame, and being provided with a plate having a throat for the lower end of the bit.

12. A seating-frame for a plane-bit having a projected bearing-surface across the rear or under side thereof at the lower end, and similar surfaces remotely situated therefrom on opposite sides of the median line of the width of the frame, said frame having intermediate slots also on opposite sides of the median line of the width of the frame, the median lines of which slots are within the corresponding lines of said remote surfaces, and the frame being further provided with a sole having a throat for the lower end of the bit.

13. A plane comprising a stock with an opening the surface of the rear wall of which is upwardly and rearwardly inclined, a bit-seating frame located on said surface having slots on opposite sides of the median line of the width of the plane, and screws entering the stock through said slots, said frame having a projected bearing across said inclined surface below the screws, and similarly-projected bearings above said screws, and also provided with a sole-plate having a throat for the lower end of the bit.

14. A plane comprising a stock having an opening therein, a bit-seating frame, having remotely-situated bearings on the surface of the rear wall of such opening, fastening means for said frame tending to flex the same in one direction between its bearings, and means having a similar tendency in the opposite direction.

15. A plane comprising a stock having an opening therein, a bit-seating frame having remotely-situated bearings on the surface of the rear wall of such opening, fastening means intermediate said bearings tending to flex the frame in one direction, and means having a similar tendency in the opposite direction.

16. A plane comprising a stock having an opening therein, a bit-supporting frame having remotely-situated bearings on the surface of the rear wall of such opening, fastening means intermediate said bearings on opposite sides of the median line of the width of the stock tending to flex the frame in one direction, and means having a similar tendency in the opposite direction.

17. A plane comprising a stock having an opening therein, a bit-supporting frame having remotely-situated bearings on the surface of the rear wall of such opening, fastening means intermediate said bearings on opposite sides of the median line of the width of the stock tending to flex the frame in one direction, and means intermediate and directly above such fastening means having a similar tendency on the frame in the opposite direction.

18. A plane comprising a stock having an opening therein, a bit-supporting frame having remotely-situated bearings on the surface of the rear wall of such opening, and formed with substantially centrally located vertical slots on opposite sides of the median line of the width of the frame, screws entering the stock through such slots and exerting an inward or downward pressure upon the frame, and means on the frame having a similar tendency thereon in the opposite direction.

JUSTUS A. TRAUT.

Witnesses:
H. S. WALTER,
CHAS. B. STANLEY.

No. 707,368 – Plane-Iron Cap (Justus A. Traut And Henry S. Walter) (1902)

[paiddownloads id=”571″]707368

UNITED STATES PATENT OFFICE.

_________________

JUSTUS A. TRAUT AND HENRY S. WALTER, OF NEW BRITAIN, CONNECTICUT, ASSIGNORS TO
STANLEY RULE AND LEVEL COMPANY, OF NEW BRITAIN, CONNECTICUT, A CORPORATION OF CONNECTICUT.

PLANE-IRON CAP.

_________________

SPECIFICATION forming part of Letters Patent No. 707,368, dated August 19, 1902.
Application filed April 26, 1902. Serial No. 104,811. (No model.)

_________________

To all whom it may concern:

Be it known that we, JUSTUS A. TRAUT and HENRY S. WALTER, citizens of the United States, residing at New Britain, in the county of Hartford, State of Connecticut, have invented certain new and useful Improvements in Plane-Iron Caps, of which the following is a full, clear, and exact description.

Our invention relates to improvements in planes, and particularly to plane-iron caps.

It consists, mainly, in the improvement of what is termed the “cap-iron” or “cap-piece” in that class of planes in which the plane-iron is clamped to a frog by means of a screw or cam. By this invention we are able to construct a plane-iron cap much cheaper than heretofore and more efficient and durable, as well as more adaptable to the uses to which it may be put.

In the drawings, Figure l is a side elevation of a plane embodying our invention. Fig. 2 is a plan view of that part of the plane to which our invention relates. Fig. 3 is a longitudinal section on the center line of Fig. 2. Fig. 4 is a cross-section on the line X X of Fig. 2 looking in the direction of the arrows.

1 is a plane-stock.

2 is a plane-iron.

3 is a forward handle.

4 is a rear handle.

5 is what is commonly termed a “cap-screw, secured to a frog or support 6 for the plane-iron. The cap-iron 9 is so shaped and constructed as to be engaged at an intermediate point by the head of the screw 5 and at each end to bear upon the plane-iron or a plate, such as commonly associated therewith. In the drawings, Fig. 1, the cap is shown as engaging the forward or lower edge of the plane-iron and engaging the upper portion by means of a cam-pressed spring 7, 8 being the cam employed for clamping the parts. Thus far described the construction and operation of the parts are well known, and hence need not be described in detail.

In practice it is essential that the cap-iron shall be very strong and desirable that it be light in weight, and to that end I construct it, preferably, of wrought or sheet metal. The cap-iron includes a broad blade-like portion 91 and a narrower shank 10. The lower edge of the portion 91 engages with the plane-iron or a part thereof near the cutting edge, while the cam 8 is carried on the shank portion 10. The cap then is subjected to strains in a manner similar to a beam supported at the ends and loaded in the middle. For this reason in order to provide sufficient strength the edges of the shank 10 and a portion of the broader part 9 of the plane-iron are bent down at an angle to provide side bars or flanges 101 integral with the body portion of the plane-iron, and hence contributing to the plane-iron great rigidity and strength. Furthermore, the flanges provide a recess in which to receive the pivot-bearing 81 for the cam 8. In addition to this feature of construction, which contributes substantially to the strength of the cap-iron, we provide a corrugation 11, which preferably commences in the shank portion 10 of the cap-iron and extends downwardly toward the broader portion on opposite lines. In addition to these corrugations shorter corrugations 12 12 may be provided in the broader portion of the cap-iron, contributing vastly to the rigidity and strength of the device, which is preferably curved, as shown best in the side views numbered 1 and 3. The particular construction preserves the curved outline of the cap-iron and permits the employment of comparatively light wrought or sheet metal. The flanges 101 form a pocket in which to receive one end of the spring 7, which is preferably fixedly secured to the cap-iron, as well as a pocket for the bearing end of the cam 8 adjacent to the pivot or pin 81, upon which said cam turns. All of the ribs or corrugations extend generally in a longitudinal direction relatively to the cap-piece, and consequently give greater rigidity to it in a lengthwise direction than transversely.

It is advantageous to have the greater strength extend in longitudinal lines. Should the gage of the metal employed in shaping the cap-piece be so light as to permit any flexibility, it would be in a transverse direction at the lower edge only, and hence advantageous in permitting the lower edge of said cap-piece to yield and bear uniformly against the plane-iron or the plane-iron plate, which is usually employed therewith in planes of the class to which our invention is particularly applicable. In Fig. 4 it will be seen that the ribs are preferably hollowed on the under side, the said view showing the under side of said cap-piece uppermost.

What we claim, and desire to secure by Letters Patent, is —

1. In a plane, a cap-iron having flanges on opposite sides at its upper end, and ribs extending longitudinally of said iron.

2. A plane-iron cap for a plane having corrugations or ribs extending longitudinally thereof, substantially as described.

3. A plane-iron cap for a plane having corrugations or ribs 12 and 12 in the body and extending longitudinally thereof, as described.

4. A plane-iron cap for a plane having corrugations or ribs 11 extending up the shank and 12, 12 in the body extending longitudinally thereof, substantially as described.

Signed at New Britain, Connecticut, this 24th day of April, 1902.

JUSTUS A. TRAUT.
HENRY S. WALTER.

Witnesses:
W. J. WORUM,
EVERETT G. HOFFMAN.

No. 707,365 – Plane (Alix W. Stanley) (1902)

[paiddownloads id=”570″]707365

UNITED STATES PATENT OFFICE.

_________________

ALIX W. STANLEY, OF NEW BRITAIN, CONNECTICUT, ASSIGNOR TO THE STANLEY RULE
& LEVEL COMPANY, OF NEW BRITAIN, CONNECTICUT, A CORPORATION OF CONNECTICUT.

PLANE.

_________________

SPECIFICATION forming part of Letters Patent No. 707,365, dated August 19, 1902.
Application filed March 5, 1902. Serial No. 96,773. (No model.)

_________________

To all whom it may concern:

Be it known that I, ALIX W. STANLEY, a citizen of the United States, residing at New Britain, in the county of Hartford, State of Connecticut, have invented certain new and useful Improvements in Planes, of which the following is a full, clear, and exact description.

This invention relates to planes.

The object of this invention is to provide a construction by which the support for the cutting-iron shall be such that the chattering of said iron in use is entirely prevented. In planes of this character the support for the cutting tool or iron is termed a “frog,” and the frog is commonly made in a piece separate from the body or stock of the plane. The reasons for this are several, among which is that an adjustability is permitted whereby the effective size of the opening or throat in the stock or base of the plane through which the cutting-iron works may be narrowed or widened, as desired, according to the character of the work. Another is that the frogs are provided with the adjusting device, and it is more convenient to equip said frogs with said adjusting devices when they are separate from the stocks than would be the case if they were integral with the same.

The accompanying drawings show the preferred form of the invention.

In said drawings, Figure 1 is a side elevation, partly in section, of a plane embodying my invention. Fig. 2 is a plan view of the base or stock portion of the plane with the frog, cutting-iron, and the associated parts removed. Fig. 3 is a similar view of a modification. Fig. 4 is a perspective view of a frog such as is adapted for use in connection with the stock shown in Figs. 1 and 2. Fig. 5 is a perspective view of a modified form of frog adapted for use in connection with the stock or frame shown in Fig. 3.

In the particular form shown, 1 is the floor or sole of the stock portion.

2 2 are side walls or flanges.

3 is a throat or slot in the bottom or floor 1 of the stock.

4 is a frog which is supported, preferably, on two seats or bearings. These seats may comprise an elevated chair 5 and a bearing 6 upon the floor 1. The bearing 6 is formed by thinning down the floor 1 directly to the rear of the throat 3. This thinning down may be effected in casting the stock, (for it is by the casting process that stocks are ordinarily made,) or it may be formed by machine-work after the casting is produced. The purpose of making the bearing 6 thin will hereinafter be explained.

7 7 are screw-passages in the frog, preferably elongated so as to permit the frog to be adjusted forward or back, thereby changing the position of the cutting edge of the plane-iron in the throat 3.

8 8 are clamp-screws (two are preferably used) by which the frog 4 is secured to the stock. The clamp-screws 8 are located between the elevated bearing 5 and the bearing 6 for the frog, so that when the screws are set down they will firmly clamp said frog against both of said bearings 5 and 6. In consequence of the fact that these bearings are spaced apart considerably when the parts are assembled it is impossible for the frog to chatter upon the stock. By loosening the screws 8 the frog may be moved backward or forward, as desired, to place the cutting edge of the plane-iron correctly relatively to the throat 3.

9 is the plane-iron, the lower edge of which is sharpened in the usual manner and is caused to project through the throat as desired. It is preferred that separate adjusting devices be provided to facilitate the longitudinal positioning of the plane-iron.

10 is a cap of the ordinary form carrying the cam 11, also of the ordinary form, and 12 is a cap-screw carried by the frog 4., which projects through a slot in the plane-iron 9 and engages the cap 10 in the usual manner, so that when the parts are assembled the plane-iron is clamped in proper position.

Manifestly the method of clamping the plane-iron to the frog may be varied as desired, since the particular device for accomplishing this end constitutes no part of this invention, excepting as it is obvious that the clamping means should take a long bearing upon the plane-iron to hold it in proper engagement throughout substantially the full bearing-surface of the frog 4.

Inasmuch as the frog is independent of the stock and inasmuch as the clamping effect of the screw 8 is considerable and inasmuch as the bottom 1 directly to the rear of the throat 3 is thin, the clamping effect of the screw 8 might tend to slightly bulge the said thin portion of the door, since this portion preferably affords one of the bearings for the frog. In order to prevent this bulging, I provide a supporting and stiffening rib 13, which in its preferred form is cast integral with the stock of the plane and preferably so as to extend from said thin portion to a heavier portion of the stock. Any desired number of these strengthening-ribs maybe provided. In Fig. 2 one of these ribs 13 is shown. In Fig. 3 two ribs 13 13 are provided; otherwise the construction is identical. I mention this, because it is obvious that the number of stiffening-ribs employed is immaterial. In order to permit the frog to take a proper bearing, I channel out the under side of the frog directly above the strengthening-ribs 13, so that the frog will not encounter the rib when the parts are assembled, but will take its proper bearing upon the seat 6. Manifestly this construction may be modified in a variety of ways.

In operation it is obvious that unless an efficient bearing is provided for the member or members which support the cutting-iron the passing of the plane over the material to be smoothed or cut might cause a vibration and a chattering of the parts. It is therefore desirable to have the forward bearing or point of contact which the plane-iron takes with the stock or parts associate therewith as close to the cutting edge as possible. Heretofore no special attention has been paid to thinning the metal of the stock directly to the rear of the throat. By thinning the metal at this point as I have done the frog supports the plane-iron almost down to its lower edge. In fact, when the best effect is produced the only unsupported portion is the beveled portion formed in shaping the edge. This will be seen in the section Fig. I. While this is of advantage generally, it is of particular advantage in that type of planes wherein the frog is adjustable longitudinally of the plane, so as to widen or narrow the throat, or rather that portion of the throat forward of the cutting edge of the plane-iron. By this invention in its preferred form a greater range of adjustability is rendered possible, since the frog may be moved to the rear of the throat to a considerable extent before the knife or cutting-iron will touch the metal of the stock. This is due to the fact that the metal of the stock may be made so thin at this point that the cutting-iron will not engage it, excepting at a point very close to its cutting edge. As a direct consequence the plane-iron may be adjusted forward or backward substantially the full width of the throat and still have an unimpaired and effective bearing directly upon the frog.

While I have shown and described a preferred form for the door of the stock to the rear of the throat, it is obvious that this may be modified in a variety of ways without departing from the spirit and scope of my invention, which in this respect relates to the provision of a suitable strengthening means adapted to reinforce the door immediately to the rear of the throat, so that that portion may be made thin, while the portion farther to the rear is of sufficient thickness to be self-supporting.

What I claim is —

1. In a plane, the combination with the stock, a frog, a plurality of bearings on said stock for said frog, and a clamping device located between said bearings, a slot or throat in the bottom or door of said stock portion, the bottom or door of said stock portion to the rear of said throat being thinned out up to the edge thereof, and means for strengthening said thinned-out floor.

2. In a plane, the combination with a stock having a plurality of seats for a detachable frog of a throat extending transversely of the stock and in the bottom thereof, the door of said stock directly to the rear of said throat being of thin metal, and strengthening-ribs extending from the heavy part of said stock to said thinned-out portion, substantially as described.

3. A stock for a plane having a transverse slot therein forming a throat for the passage of the plane-iron, the door to the rear of said throat being thin, the stock to the rear of said thin portion of the door being heavy, and a rib extending from said heavy portion to said thin portion, and strengthening and supporting the latter.

4. In a plane, a stock, a transverse slot therein forming a throat for the passage of the plane-iron, the door to the rear of said throat being thin, the stock to the rear of said thin portion of the door being heavy, and a plurality of ribs extending from said heavy portion to said thin portion, and strengthening and supporting the latter.

5. A plane having a stock portion provided with a throat, a frog, said stock portion being provided with two bearings for said frog, a rib connecting said two bearings, said frog being correspondingly grooved.

6. A plane having a stock portion provided with a throat, a frog, said stock portion being provided with an upper and a lower bearing for said frog, a rib connecting said two bearings, said frog being correspondingly grooved.

7. A plane having a stock portion provided with a throat, a frog, said stock portion being provided with an upper and a lower bearing for said frog, a screw having a seat between said bearings for securing said frog to said stock, a rib connecting said two bearings, said frog being correspondingly grooved.

Signed at New York, N. Y., this 15th day of February, 1902.

ALIX W. STANLEY.

Witnesses:
ROBT. S. ALLYN,
L. VREELAND.

No. 707,356 – Plane-Lift (Charles E. Riecker And Henry S. Walter) (1902)

[paiddownloads id=”569″]707356

UNITED STATES PATENT OFFICE.

_________________

CHARLES E. RIECKER AND HENRY S. WALTER, OF NEW BRITAIN, CONNECTICUT, ASSIGNORS TO
STANLEY RULE AND LEVEL COMPANY, OF NEW BRITAIN, CONNECTICUT, A CORPORATION OF CONNECTICUT.

PLANE-LIFT.

_________________

SPECIFICATION forming part of Letters Patent No. 707,356, dated August 19, 1902.
Application filed April 26, 1902. Serial No. 104,808. (No model.)

_________________

To all whom it may concern:

Be it known that we, CHARLES E. RIECKER and HENRY S. WALTER, citizens of the United States, residing at New Britain, in the county of Hartford, State of Connecticut, have invented certain new and useful Improvements in Plane-Lifts, of which the following is a full, clear, and exact description.

Our invention relates to planes, and particularly to improvements in carpenters’ or bench planes.

The purpose of the invention is to provide a simple and effective device to mechanically elevate or assist in lifting the plane on the return stroke, so that the cutting edge of the plane iron or knife will not become dulled by rubbing backward against the wood. The device, moreover, is so constructed as to be readily applied to a plane and to operate without chattering.

In the drawings, Figure 1 is a side elevation of a plane embodying our invention when on the return stroke. Fig. 2 is a similar view, partly in section, showing the position of the parts on the forward or cutting stroke. Fig. 3 is a plan view of the front end of a plane as shown in Fig. 1, the front handle or knob being removed. Fig. 4 is a perspective view of a device adapted to be attached to a plane for effecting the results herein desired.

The particular construction of the plane proper is immaterial and will not, therefore, be described in detail, since this invention is applicable to planes in general.

A represents the body or stock of a plane, and in the particular construction shown B is a front handle, and C a rear handle. The operator usually grasps both handles of the plane in using the same. On the forward stroke of the plane the cutting is edected by means of a plane iron or knife D, which projects through a throat or passage in the stock A and slightly below the sole thereof. On the rearward or return stroke, if the plane-iron bears against the wood the cutting edge is rubbed backward and rendered dull. To avoid this, I provide a mechanical elevator in the form of a spring-pressed nose E, which is preferably carried at one end of the stock A in such a manner as to normally project slightly below the sole of the stock, and thus lift the stock a sufficient distance to free the cutting edge of the plane-iron D from the wood on the return stroke. In the particular form shown in the drawings the lifting device or nose E is shaped to the forward end of the sole and is carried by blade-springs F F, secured to a washer-like carrier G, which surrounds the stem or post upon which the forward handle B is mounted. When the handle is screwed down into place, it clamps the carrier G firmly in the position indicated in the drawings, Figs. 1 and 2. The lower edge of the nose of the lifting device E is preferably rounded or suitably fashioned so as not to scratch or injure the woodwork with which it comes in contact and to insure a smooth and noiseless action. In use the operator presses down upon the front knob of the plane in such manner as to overcome the lifting tendency of the elevator E and so as to bring the knife D into proper contact with the wood. As the plane is advanced the knife cleaves the wood and cuts of a shaving of the desired thickness. Upon the return stroke the natural tendency of the user is to relieve the pressure upon the plane and, in fact, to apply a slight lifting tendency. As this lifting tendency is not usually sufficient to elevate the plane from the wood, so as to relieve the engagement of the knife therewith, it is supplemented by a mechanical appliance, herein described, to a sufficient extent to cause the sole of the plane to be elevated to the desired degree, thus prolonging the effective life of the cutting edge of the plane-iron. The method of attaching the elevating device E is preferentially shown; but it is manifest that it may be modified in a variety of ways. As shown, the elevating device takes a long bearing upon the wood substantially the full width of the sole, and hence prevents the tilting of the plane on its rearward movement and effectively elevates the entire cutting edge of the plane, so as to substantially relieve the pressure of the knife-edge against the woodwork upon the return stroke of the plane.

It is obvious that this invention may be applied to any plane of this general type without any alteration to the plane whatsoever. The plane-lift maybe manufactured and sold separately to be attached to any plane. The construction is such that chattering is prevented when the device is in use. This partially results from the fact that the nose is carried at the end of the plane-body, and its supporting or carrying blades F F project rearwardly, so that when the plane is drawn backward, at which time the pressure on the same is very slight, the friction occurs in a direction away from the point of support, so that the action is smooth and uninterrupted. When, on the other hand, the plane is pushed forward, the pressure on the handles is considerable, so that although the friction upon the nose does occur in the opposite direction the force applied is such as to prevent chattering.

What we claim, and desire to secure by Letters Patent, is —

1. In a plane, an elevating device projecting beyond the front end of the plane and means of connection between said elevating device and a portion of the plane, and means to normally cause said elevating device to project below the sole of the plane.

2. In a plane, an elevating device projecting beyond the end of the plane and means of connection between said elevating device and a portion of the plane, and a spring to normally cause said elevating device to project below the sole of the plane.

3. A plane having a front and a rear handle, an elevating device secured to the plane by the front handle said connection includiing a yielding spring-blade.

4. In a plane, a yielding elevating device comprising a nose mounted on the plane in front of the forward end thereof, and a spring for normally causing said elevating device to project below the sole of the plane, the operative edge of said elevating device being rounded.

5. An elevating device for a plane comprising a carrier, blades projecting forwardly therefrom and carrying a nose portion projecting downward therefrom, substantially as described.

6. An elevating device fora plane comprising a carrier portion G, a downwardly-projecting nose portion E, and means for connecting said carrier and said nose portion.

7. An elevating device for a plane comprising a downwardly-projecting nose portion, adapted to project beyond the end of a plane, a spring-blade attached thereto and means carried by said blade portion whereby said elevating device may be attached to a plane on top of its sole portion.

Signed at New Britain, Connecticut, this 24th day of April, 1902.

CHARLES E. RIECKER.
HENRY S. WALTER.

Witnesses:
ALBERT L. WIARD,
W. J. WORAM.

No. 707,281 – Grooving-Plane (Justus A. Traut) (1902)

[paiddownloads id=”568″]707281

UNITED STATES PATENT OFFICE.

_________________

JUSTUS A. TRAUT, OF NEW BRITAIN, CONNECTICUT.

GROOVING-PLANE.

_________________

SPECIFICATION forming part of Letters Patent No. 707,281, dated August 19, 1902.
Application filed April 28, 1902. Serial No. 104,972. (No model.)

_________________

To all whom it may concern:

Be it known that I, JUSTUS A. TRAUT, a citizen of the United States, residing in New Britain, in the county of Hartford and State of Connecticut, have invented certain new and useful Improvements in Grooving-Planes, of which the following is a specification.

This invention relates to planes; and it consists substantially in the improvements hereinafter particularly described.

The invention has reference more especially to planes such as are employed for cutting or forming grooves in the surfaces of wood and other materials; and the principal object of the invention is to provide a plane of this character with means for effecting the cutting or formation in the surface of the work operated upon of grooves having sides or walls which are curved from end to end, and also to provide means for insuring the evenness of cut or formation of the angular edges of the grooves, as well as the bases and sides thereof.

A further object is to provide a grooving-plane of this special character with means for maintaining or preserving the true curviinear path of the cutting devices of the plane throughout the full extent of the grooves formed thereby, and also to provide means whereby the plane may be readily adapted to the cutting or formation of grooves having sides or walls of different or varying degrees of curvature.

A still further object of the invention is to provide a plane of this character which is exceedingly simple and easily handled in the performance of the work required of it, and also to provide means for meeting all requirements of use of the plane.

The above and additional objects are attained by means substantially such as are illustrated in the accompanying drawings, in which —

Figure 1 is a view in perspective of a grooving-plane structure embodying the essential features of my improvements, the said plane being shown as applied for use in the cutting or formation of curved grooves in the surface of a block of wood or other piece of work operated upon; and Fig. 2 is a bottom plan view of the plane structure, showing an element of my improvements which is omitted from Fig. 1 for the purpose of clearness. Fig. 3 is an enlarged bottom plan view in detail of the cutting devices to more clearly indicate the organization thereof for effecting their respective functions. Fig. 4 is a view in perspective of a part of the gage of the plane, showing a modification thereof for enabling the formation in the work operated upon of grooves having sides or walls of less than a predetermined curvature from end to end.

Before proceeding with a more detailed description it may be stated that while I have herein provided an ordinary grooving-plane with special means for the cutting of grooves having sides or walls which are curved from end to end it will be understood that the adaptability or capacity of the plane for cutting grooves having straight sides or walls from end to end is not altered in the slightest respect. Hence the greater advantage of my improvements. With some kinds of planes for cutting or forming straight-sided grooves in the work operated upon it is usual to employ a suitable gage having a straight edge or face for moving upon or against a corresponding straight edge or face formed on the adjacent part of the work, the said gage serving to guide the cutting devices evenly and being adjustable, by which to vary the distance of the grooves from the edges of the work as well as from each other.

In constructing a grooving-plane according to my present improvements I may employ a well-known form of plane having at one side thereof an adjustable gage formed with a straight edge extending substantially parallel with the sides of the plane-stock, and to said straight edge I apply one or more specially-constructed lateral bearings for the plane structure, said bearings being designed to work upon or against one side or edge of the work in the formation of grooves having either straight or curved sides or walls. For the cutting or formation of straight-sided grooves the adjacent side or edge of the work is made straight, while for the cutting or formation of grooves having curved sides the adjacent side or edge of the work operated upon is constructed in correspondence with the desired degree of curvature of the sides of the grooves to be formed, and it may be stated that the plane structure is equally operative whether the lateral bearings referred to are applied to a concave surface or to a convex surface. In either case the plane structure is constantly deflected to one side in a manner to cause the cutting edge of the bit or plane-iron to follow the desired curvilinear path, and it may be stated that such constant deflection causes the effective edge of the said bit or plane-iron to operate upon the work with a glancing or shearing cut, which is much more effective in removing the necessary quantities of material for the production of the grooves. It may also be stated that in order to insure the evenness of cut of the angular edges of the curved grooves I provide suitable scorers or cutting devices in advance of and slightly beyond the ends of the cutting edge of the plane-iron or bit, said devices operating in a manner and for the purpose hereinafter more fully understood.

Specific reference being had to the accompanying drawings, A represents a grooving-plane embodying my improvements, the same comprising a stock a, having a suitable grip or handle b and provided with the usual bit or plane-iron c, the effective or cutting edge of which is indicated at d. Attached or secured to one side of said stock a is a bracket B, which is provided at points in advance and to the rear of the said cutting edge d with bearings e e, which receive the inner end portions of parallel bars or rods f f, on which are slidably fitted the sleeve portions g g of a guide or gage C, said gage being of ordinary form and constructed with a straight edge or surface h adjacent the said plane-stock a, said sleeve portions being each provided with a set-screw i, working in the side thereof, the said screws being forthe purpose of tightening the gage in diiferent positions of adjustment on said bars or rods f f. To the said straight edge or surface of the said gage I detachably secure one or more lateral bearings or blocks D, having curved faces m, which are designed to bear upon a curved side or edge l of the work operated upon in the application of the plane structure to cut or form curved grooves in the surface of such work, substantially as is indicated at Fig. 1. The said bearings or blocks D may be constructed of wood, metal, or othersuitable material, as is apparent, and they may also be attached or secured to the gage in any suitable manner, screws o o being employed for that purpose in the present instance. Preferably I employ one of such bearings or blocks D at a point to one side of and in advance of the cutting edge d of the bit or plane-iron c and another at a point to the rear of such edge, and thus I may effectually operate the plane structure in the cutting or formation of grooves having either straight or curved sides or walls. It may be stated also that by continuing the curved side or edge l of the work in the formation of a complete circle the plane structure may be operated to cut or form circular grooves in the surface of such work, as is apparent, and it will be understood that by reversing the said plane structure and applying the curved bearings or blocks D to the opposite concave side or edge p of the work similar curved grooves may also be formed in the surface of the work in a like manner. In the use of this described embodiment of my invention for forming curved grooves from end to end of a piece of work, however, the foremost one of the said curved blocks or bearings D of the gage leaves the foremost end of the work before the cutting edge of the bit or plane-iron c has been carried forward far enough to complete the groove, and in the absence of the bearing afforded by said block against the work the entire plane structure is apt to twist or turn to one side or the other from the moving force applied thereto, and thus divert the cutting edge of the plane-iron from the true curvilinear path it is intended to follow. To obviate any such tendency, however, I prefer in most instances to employ substantially a similar block or bearing D2 intermediate the other two and at the same side of the plane-stock substantially coincident with the cutting edge d of the plane-iron, or slightly in advance thereof, and thus it will be seen that the true curvilinear path of the said cutting edge of the plane-iron is always maintained throughout the full extent of the grooves formed thereby. The said intermediate hearing or block D2 may not be constructed the same as the bearings or curved blocks D D; but preferably I construct the same in the present instance of a simple screw r, having a curved or rounded head S to bear against the curved side or edge of the work, said screw being adjustably inserted in a threaded opening therefor extending through the connecting member f2 between said blocks D D and the guide or gage C, as shown. On the outer end of said screw is a suitable jam-nut u for securing the same to the positions to which it may be adjusted. It will be understood that in some instances I may employ the said intermediate bearing D2 alone and dispense vrith the outer bearings or blocks D D for certain kinds of work — as, for instance, when cutting or forming curved grooves of exceedingly limited extent or dimensions from end to end. In most cases, however, I prefer the use or employment of said outer bearings or blocks on account of the stability afforded thereby in the operation of the plane structure, including, as the latter does, the gage and its appurtenances. I may also add that while I have herein illustrated my improvements as applied to a certain form of grooving plane and gage I am not limited to the use of these particular embodiments in the practice of my invention, as is apparent.

In virtue of the curved formation of the surfaces of the bearings or blocks D D when the plane structure is applied in a manner to have such blocks cobperate with the concaved side or edge of the work operated upon the whole plane structure is deflected inwardly in such manner as to keep the cutting edge of the plane-iron in the desired curvilinear path, all as hereinbefore mentioned, and it may also be said that substantially the same effect is had when the said bearings or blocks D D are applied to the convex side or edge of the work.

It should be explained at this point that if the cutting edge of the plane-iron should be made as wide as the predetermined width of groove to be formed in the work, then as a result of the deflection of the plane structure already explained the said cutting edge would tend to ride over the edges of the grooves, and thus mutilate said edges or destroy the angular symmetry thereof. To guard against any such destructive tendency, I construct the cutting edge of the plane-iron a little less in width than the intended width of the groove and I locate in advance of said cutting edge what I term “scoring” devices 2 2, which are arranged slightly to one side of or beyond the ends of the cutting edge d or at a distance apart substantially equal to the width of the groove to be formed. In this way the said scoring devices form parallel grooves in the work in advance of the main groove formed by the said cutting edge d, and thus is the latter enabled to properly conform to the predetermined curvilinear path therefor without in any manner injuring the edges of the grooves. As the plane structure is operated over the surface of the work, the bed of material remaining between the narrow parallel grooves formed by said scoring devices is successfully removed in an even manner by the slight shearing effect given to the cutting edge of the said plane-iron, as already mentioned.

I am not limited to the specific construction or organization of elements herein illustrated and described, and it is evident that it is immaterial at which side of the plane-stock the adjustable gage and its appurtenances are supported. It should be added as another reason therefor that the cutting edge d of the bit or plane-iron c is made less in length than the predetermined width of the curved groove to be formed in the work to enable the same to partake of the deflection of the plane structure without upturning or tearing away the edges of the groove, and it is also added that the scoring devices 2 2 in advance of said cutting edge d are each held to one side of the plane-stock by means of a screw 6, so as to enable said devices to be detached at any time for sharpening purposes or to be replaced by others.

In order to enable the cutting or formation of short curved grooves to be edected by the use of my improvements, more especially when the lateral bearing-blocks are made to ride a concaved or inner curved side or surface of the work operated upon, I make said bearing-blocks adjustable to be moved toward each other and secured in position, and while any suitable means may be employed for this purpose I have herein indicated a simple construction therefor at Fig. 4. Thus in said Fig. 4 I construct the straight portion or surface h2 of the gage C with two oblong openings or slots 8 8, passing through which are tightening or fastening screws 9 9, which enter the lateral bearings or blocks D3 D3. It is evident that by loosening said screws they and the said bearings or blocks may be adjusted along said straight portion or surface h2, after which the screws may be again tightened to secure the blocks in place.

Having described my invention, I claim —

1. A grooving-plane structure comprising a stock having a bit, and means supported substantially in line with the cutting edge of said bit for engaging a curved surface of the work operated upon, said means consisting of a screw having a curved head.

2. A grooving-plane structure comprising a stock having a bit, a gage lateral to the stock, and means on the gage substantially in line with the cutting edge of said bit for engaging a curved surface of the work operated upon, said means including a screw working in an opening in the gage and having a curved head.

3. A grooving-plane structure comprising a stock having a bit, means lateral to the stock both in advance of and to the rear of the cutting edge of said bit for engaging a curved surface of the work operated upon, and a screw supported substantially in line with said cutting edge and having a curved head also engaging the curved surface of the work.

4. A grooving-plane structure comprising a stock having a bit, a gage lateral to the stock, means on the gage both in advance of and to the rear of the cutting edge of said bit for engaging a curved surface of the work operated upon, and a screw supported by the gage substantially in line with the said cutting edge and having a curved head also engaging the curved surface of the work.

5. A grooving-plane structure comprising a stock having a bit, means lateral to the stock both in advance of and to the rear of the cutting edge of said bit for engaging a curved surface of the work operated upon, and a screw supported in line with said cutting edge and having a curved head also engaging the curved surface of the work, said means each being adjustable toward the other.

6. A grooving-plane structure comprising a stock having a bit, a gage lateral to the stock, means on the gage both in advance of and to the rear of the cutting edge of said bit for engaging a curved surface of the work operated upon, and a screw supported by the gage substantially in line with the cutting edge and having a curved head also engaging the curved surface of the work, said means each being adjustable toward the other.

7. A grooving-plane structure comprising a stock having a bit, a gage lateral to the stock, means on the gage both in advance of and to the rear of the cutting edge of said bit for engaging a curved surface of the work operated upon, and a screw supported by the gage substantially in line with said cutting edge and having a curved head also engaging the curved surface of the work, said gage being adjustable toward and from the stock.

8. A grooving-plane structure comprising a stock having a bit, a gage lateral to the stock, means on the gage both in advance of and to the rear of the cutting edge of said bit for engaging a curved surface of the work operated upon, and a screw supported by the gage substantially in line with said cutting edge and having a curved head also engaging the curved surface of the work, said gage being adjustable toward and from the stock, and said means each being adjustable toward the other.

9. A grooving-plane structure comprising a stock having a bit, means lateral to the stock both in advance of and to the rear of the cutting edge of said bit for engaging a curved surface of the work operated upon, a screw supported substantially in line with the cutting edge and having a curved head also engaging the curved surface of the work, and scoring devices located beyond the ends and in advance of the said cutting edge.

10. A grooving-plane structure comprising a stock having a bit, a gage lateral to the stock, means on the gage both in advance of and to the rear of the cutting edge of said bit for engaging a curved surface of the work operated upon, a screw supported by the gage substantially in line with the cutting edge and having a curved head also engaging the curved surface of the work, and scoring devices located beyond the ends and in advance of the said cutting edge.

11. A grooving-plane structure comprising a stock having a bit, a gage lateral to the stock, a block on the gage both in advance of and to the rear of the cutting edge of said bit and having acurved surface for engaging a curved surface of the work operated upon, and a screw supported by the gage intermediate of said blocks and having a curved head also engaging the curved surface of the work.

12. A grooving-plane structure comprising a stock having a bit, a gage lateral to the stock, a block on the gage both in advance of and to the rear of the cutting edge of said bit and having a curved surface for engaging a curved surface of the work operated upon, and a screw supported by the gage intermediate of said blocks and having a curved head also engaging the curved surface of the work, said blocks being adjustable toward each other longitudinally of the gage, and said screw being adjustable toward and from the stock.

13. A grooving-plane structure comprising a stock having a bit, a gage parallel with and lateral to the stock, means on the gage both in advance of and to the rear of the cutting edge of said bit for engaging a curved surface of the work operated upon and adapted to deflect the structure laterally in the planing movements thereof to cause said cutting edge to follow a path parallel with such curved surface, and similar means substantially in line with said cutting edge, said gage being adjustable toward and from the stock, and each of the means specified being adjustable on the gage and consisting of a lateral bearing or block having a curved surface.

14. A grooving-plane structure comprising a stock having a bit, a gage parallel with and lateral to the stock, means on the gage both in advance of and to the rear of the cutting edge of said bit for engaging a curved surface of the work operated upon and adapted to deflect the structure laterally in the planing movements thereof to cause said cutting edge to follow a path parallel with such curved surface, and a screw supported by the gage substantially in line with said cutting edge and having a curved head also for engaging the curved surface of the work, said gage being adjustable toward and away from the stock, and said means each being adjustable on the gage and consisting of a lateral bearing or block having a curved surface.

15. A grooving-plane structure comprising a stock having a bit, a gage parallel with and lateral to the stock, means on the gage both in advance of and to the rear of the cutting edge of said bit for engaging a curved surface of the work operated upon and adapted to deflect the structure laterally in the planing movements thereof to cause said cutting edge to follow a path parallel with such curved surface, sirnilar means substantially in line with said cutting edge, and scoring devices located beyond the ends and in advance of the cutting edge, said gage being adjustable toward and from the stock, and each of the means specified being adjustable on the gage and consisting of a lateral bearing having a curved surface.

16. A grooving-plane structure comprising a stock having a bit, a gage parallel with and lateral to the stock, means on the gage both in advance of and to the rear of the cutting edge of said bit for engaging a curved surface of the work operated upon and adapted to deflect the structure laterally in the planing movements thereof to cause said cutting edge to follow a path parallel with such curved surface, a screw supported by the gage substantially in line with said cutting edge and having a curved head also for engaging the curved surface of the work, and scoring devices located beyond the ends and in advance of the cutting edge, said gage being adjustable toward and from the stock, and said means each being adjustable on the gage and consisting of a lateral bearing or block having a curved surface.

JUSTUS A. TRAUT.

Witnesses:
EBEN STRONG,
FRANK S. TRAUT.

No. 706,704 – Plane (Justus A. Traut) (1902)

[paiddownloads id=”566″]706704

UNITED STATES PATENT OFFICE.

_________________

JUSTUS A. TRAUT, OF NEW BRITAIN, CONNECTICUT.

PLANE.

_________________

SPECIFICATION forming part of Letters Patent No. 703,704, dated August 12, 1902.
Application filed May 20, 1901. Serial No. 60,992. (No model.)

_________________

To all whom it may concern:

Be it known that I, JUSTUS A. TRAUT, a citizen of the United States, residing in New Britain, in the county of Hartford and State of Connecticut, have invented certain new and useful Improvements in Planes, of which the following is a specification.

This invention relates to improvements in planes, and more particularly to that style of plane known as a “dado-plane,” and has for its object to provide adjustable means for limiting the depth to which the cutting of the plane may proceed.

A further object is to provide a plane of this character with a supplemental sole cooperative with the sole and which is easily and quickly adjustable and which can be securely maintained in its adjusted position.

A further object of my invention is to provide adjusting means which will also cooperate with the securing means for the purpose of maintaining the sole in its adjusted position.

In the drawings accompanying and forming part of this specincation is shown my invention applied to a form of dado-plane, which may be the preferred form, if desired.

Figure 1 is an elevation of a plane having my invention applied thereto. Fig. 2 is a plan view of the forward end of the plane, showing the same on a somewhat larger scale. Fig. 3 is a cross-section on the line 3 3, Fig. 2. Fig. 4 is a form of adjusting-screw, and Fig. 5 is a form of supplemental sole or guide.

Like characters of reference designate the same parts in the various figures, wherein a plane-stock is represented generally by 6, having a sole 7, through which works a suitable plane-iron 8 and in connection with which are adjustable guide-knives 9 9. To the plane-stock is iitted a supplemental sole 10, having a projecting slotted arm 11, ways or guides 12 and 13, and a tapped boss 14. The supplemental sole is adapted to be secured to the plane-stock, generally at one side of the stock and forward of the mouth, by means of a set-screw 15 traversing the slotted arm and tapped hole in the plane-stock. The way 13 is shown as being of greater projection than the way 12, and it is adapted to enter and slide in a groove or guide 16 in the plane-stock; to prevent lateral movement or oscillation of the supplemental sole, the other way 12 being adapted to slide upon a face provided for it on the side wall of the plane-stock. The way 13 is shown in the drawings as having square corners and a fiat face, although any other or convenient form of way may be employed. The plane-stock is provided with a tapped boss located above the tapped boss in the supplemental sole. These bosses are adapted to be traversed by an adjusting-screw 17, preferably made with right and left threads of differential pitch. This screw is adapted for raising and lowering the supplemental sole, and it cooperates with the set-screw for maintaining the supplemental sole in its adjusted position.

It will be readily seen that by loosening the set-screw the supplemental sole may be raised and lowered at will by means of the screw 17. If the adjusting-screw is made with the portion traversing the boss in the stock of a greater number of threads to the inch than the part of the screw which traverses the boss in the supplemental sole, the head of the adjusting-screw will not have to be raised as great a distance as if both screw-threads were provided with the same number of threads, and hence I preferably employ such an embodiment herein. With such an organization increased range of adjustments of the supplemental sole may be affected by a very slight turn imparted to said screw. It will be observed that the said right and left hand differential adjusting-screw 17 is also of different diameters in its length, the portion thereof having the least number of threads being less in thickness or diameter than the portion having the greatest number of threads thereon, such construction permitting the insertion or passage of the said adjusting-screw through the tapped opening in the boss of the stock, it being evident that if the screw was of the same diameter throughout it could not be passed through such opening on account of its differential character and the right and left hand directions of its threads, the said tapped opening in the boss referred to being only adapted to receive that portion of the screw of the greatest diameter and greatest number of threads per inch ratio.

By the organization of the parts that is contemplated in my invention a screw of the general construction described, after adjustment of the supplemental sole, will not be readily jarred out of place, and it will cooperate with the ways and the set-screws for maintaining the parts in their adjusted position, so that although the supplemental sole has but one adjusting device and but one retaining device per se it has two maintaining devices aside from the ways, rendering all pivotal action impossible, so that the greatest accuracy of adjustment is possible with this plane, which in fine work it is essential should be had. Otherwise the tool would not do neat and accurate work.

It will thus be seen that the differential thumb-screw 17 may be assembled by passing its small-diameter coarsely-threaded tip end through the large hole in the stock and then engaging said tip with the small threaded hole in the lug 14 upon the supplemental sole and also engaging the finely-threaded large-diameter upper end of the screw with the hole in the stock. Then the transverse clamping-screw 15 is inserted through the vertical slot in the supplemental sole, the shank of said clamping-screw thereupon serving to limit the vertical adjustment of the supplemental sole, so that the thumb-screw 17 cannot be withdrawn from the latter, this being a desideratum, since it is required in this class of tools that when once assembled for use no operation such as is necessary for its adjustment shall be capable of taking the tool apart. In practice the upper end of the screw 17 is provided with right-hand thread and the lower end with left-hand thread, as illustrated.

It will be observed that I avoid slotting or forking, and hence weakening the stock, as is usual where adjusting-screws are used having double collars, and I also avoid the expense of applying a collar to a screw after the insertion thereof in the stock, as well as the consequent additional complexity of construction and looseness of parts, such small pieces becoming loosened quickly and seriously impairing the usefulness of the plane, rendering the same of a ramshackle character. By my invention an ease and accuracy of adjustment are secured which are not found in planes having ordinary screws and collars and other loose parts. The integrality of construction of the screw and the absence of small accessories thereto gives firmness of feeling to the action of the slide, so that the workman can tell exactly what he is doing. All this is accomplished without a single piece of any kind being added to the mechanism, thus securing a minimum of both weight and expense. The adjustment is reduced absolutely to the fewest elements. No smaller number of elements can be employed, and, moreover, no greater advantages can be obtained from the use of a greater number of parts. Thus is satisfied the imperative requirements in this art — of lightness, rigidity, simplicity, inexpensiveness, durability, and delicacy of action.

Although I have shown a set-screw and a right and left differential screw, yet any other or convenient mechanical devices which in practice may be found desirable may be employed without departing from the spirit of my invention.

Having described my invention, I claim —

1. In a plane, the combination with a stock having a sole, of a supplemental sole, a threaded hole in the stock, a differently-threaded hole of different diameter in the sole, and a single thumb-screw having correspondingly-threaded shanks of large and small diameters working in both of said holes.

2. In a plane, the combination with a stock having a sole, of a supplemental sole, a hole in said stock, a hole in said supplemental sole, one of said holes being of larger diameter than the other and one of said holes having a right-hand thread and the other having a left-hand thread, and a screw having shanks of corresponding sizes and threads and working in both of said holes.

3. In a plane, the combination with a stock having a sole, of a supplemental sole, a hole in said stock having a right-hand thread, a hole of smaller diameter in said supplemental sole, and having a left-hand thread, and a screw having shanks of corresponding sizes and threads and working in said holes.

4. In a plane, the combination with a stock having a sole, of a supplemental sole, a hole in said stock having a right-hand thread, a hole of smaller diameter in said supplemental sole and havinga left-hand thread of coarser pitch, and a screw having portions of corresponding sizes and threads and working in said holes.

5. In a plane, the combination with a stock having a sole, of a supplemental sole; a threaded hole in the stock; a differently-threaded hole of smaller diameter in the sole; a single thumb-screw having differently-threaded shanks of large and small diameters working in said holes; and means for limiting the movement of said supplemental sole so as to prevent the withdrawal of said screw from said sole.

6. In a plane, the combination with a stock having a sole, of a supplemental sole; a hole in said stock; a hole in said supplemental sole; one of said holes being of larger diameter than the other, and one of said holes having a right-hand thread and the other having a left-hand thread; a screw having portions of corresponding sizes and threads and working in both of said holes, and detachable means for clamping said supplemental sole to the stock; said clamping means including a part which limits the movement of said supplemental sole so as to prevent the withdrawal of said screw therefrom.

7. In a plane, the combination with a stock having a sole, of a supplemental sole; a hole in said stock having a right-hand thread 5 a hole of smaller diameter in said supplemental sole having a left-hand thread; a screw having portions of corresponding sizes and threads and working in said holes; a slot in said supplemental sole, and a transverse clamping-screw passing through said slot and engaging said stock; the play of said slotted sole upon the shank of said clamping-screw being insufficient to permit the withdrawal of said adjusting-screw from the supplemental sole.

8. In a plane, the combination of a stock, a supplemental sole, and a screw having near its head a finely-threaded shank portion which is threaded into a hole in said stock, and also having at its tip a coarsely-threaded shank portion of smaller diameter which is threaded into a hole in the supplemental sole.

9. In a plane, the combination with a stock and a supplemental sole adjustable up and down thereon, of an up-and-down thumb-screw having at its upper end a threaded portion of fine pitch which works in a corresponding hole formed in the upper portion of the stock, and also having at its lower end a coarsely-threaded portion of smaller diameter which works in a corresponding hole in the supplemental sole.

10. In a plane, the combination with a stock; and a supplemental sole adjustable up and down thereon, of an up-and-down thumb-screw having at its upper end a right-hand-threaded portion of line pitch which works in a corresponding hole in the stock, and also having at its lower end a left-hand-threaded portion of smaller diameter and of coarse pitch which works in a corresponding hole in the supplemental sole.

JUSTUS A. TRAUT.

Witnesses:
H. C. HINE,
F. L. TRAUT.

No. 703,158 – Plane (Alix W. Stanley And Henry S. Walter) (1902)

[paiddownloads id=”564″]703158

UNITED STATES PATENT OFFICE.

_________________

ALIX W. STANLEY AND HENRY S. WALTER, OF NEW BRITAIN, CONNECTICUT, ASSIGNORS TO
STANLEY RULE & LEVEL COMPANY OF NEW BRITAIN CONNECTICUT, A CORPORATION OF CONNECTICUT.

PLANE.

_________________

SPECIFICATION forming part of Letters Patent No. 703,158, dated June 24, 1902.
Application filed December 27, 1901. Serial No. 87,500. (No model.)

_________________

To all whom it may concern:

Be it known that we, ALIX NV. STANLEY and HENRY S.WALTER, citizens of the United States, residing at New Britain, county of Hartford, State of Connecticut, have invented certain new and useful Improvements in Planes, of which the following is a full, clear, and exact description.

Our invention relates to improvements in the construction of planes.

The object of our invention is to provide a simple, inexpensive, and effective means for securing in place the means whereby the position of the cap of the plane is determined, as will he understood from the following description, taken in connection with the accompanying drawing.

In the illustration we have shown a side elevation of a plane fitted with an embodiment of our improved construction, parts of the plane being seen in section.

The plane which we have chosen to here describe is an iron plane, in which A is the bottom.

B is what is commonly termed the “frog” of the plane. This frog B is secured to the base and presents an inclined upper surface leading down to the slot in the base A, through which the plane-iron C projects. In this type C’ is a plane-iron cap, the two parts thus forming a double plane-iron. The iron C furnishes the cutting edge.

D is what is termed the “cap.” In the particular construction shown this cap is provided with a cam D’.

E is what is termed the “cap-screw” or “holder.” This part E is ordinarily in the form of a headed screw, which takes into a tapped hole in the frog B. This holder E is seldom if ever adjusted after it has been secured in its proper position, and it is desirable to have it snugly retained in that position, so that it will not work loose and disturb the adjustment or allow chattering of the parts when in use. At the same time it is desirable not to have a permanent connection in order that in the event of an emergency a new holder can be inserted. In case the cap should become broken or lost a new cap must be inserted, and if it should vary slightly in dimensions from the original cap the holder must be adjusted. It will therefore be seen that an adjustable cap-screw that will not become loose or accidentally disturbed from its proper position is the end which we seek to attain.

F is a lever or Y adjustment pivoted to the frog B, one end of which is adapted to engage with the plane-iron C, the other end being engaged by an adjusting-nut G. This nut or thumb-nut G is movable on a screw or post H, also carried by the frog B. The plane-iron may be advanced or retracted relatively to the bottom of the plane by means of the adjusting-nut G, which operates the lever F, engaging with the plane-iron, regulating the depth of the cutting edge in the usual manner.

Our invention will be found to consist in so arranging the screw-threaded or tapped passages in the frog B for the cap-screw E and the post H that the said passages intersect for the purpose of permitting the post H to be set up against the holder or cap-screw E when the latter is in its proper position.

We thus securely lock the parts in place to prevent their becoming accidentally displaced or loosened. The screw or post H therefore performs a double function. Not only is it a means for supporting the thumb-nut G for the adjustment of the plane-iron, but it also forms the locking means for the cap-screw or holder. In our preferred construction the thread of the screw E, adjacent the point where the end of the screw H is to engage and lock the same, is turned down, so as to remove the screw-threads. Consequently the end of the screw H will not batter the screw E and render it difficult or impossible to operate it when desired. Furthermore, by so doing a better bearing-face is afforded for the end of the locking screw or post H. Heretofore the frictional engagement of the screw-threads of the cap-screw E has been solely relied upon as the means for holding the screw in position.

By our improvement a simple, inexpensive, and effective means is provided whereby if the frictional engagement of the screw-threads is insufficient the movement of the cap~screw is nevertheless prevented.

The assembling of the plane is accomplished in the well-known manner, there being nothing to require special instructions in regard thereto. The plane-iron is inserted in the usual way, and the cap D is placed thereon, a keyhole-opening D2 in the cap allowing the cap to be slipped on over the holder E. It is then slid down into place, so that the head of the screw or holder E will stand over and engage the cap D. The cam D’ is then swung down into the position shown, and thus securely clamps the parts together. Should the cap-screw E become loose, the plane-iron or parts associated therewith will be likely to chatter, producing unevenness and other undesirable results in the work performed. This is entirely avoided by the employment of our invention.

It should be obvious that the improvements in the construction herein set forth are applicable to many different styles of planes, wood as well as iron, and that the bearing for the plane-iron instead of being a separate frog might be made an integral part of the plane itself, also that the particular form and arrangement are not material so long as the combination of cap-screw and post H is such that the latter element performs the double function of supporting the thumb-nut G and securing the cap-screw effectively in place.

What we claim, and desire to secure by Letters Patent, is —

1. In a plane, a plane-iron, a bearing therefor, a cap-screw for holding said plane-iron in engagement with said bearing, an adjusting-screw for regulating the position of said plane-iron, said adjusting-screw also engaging said cap-screw to lock it, substantially as described.

2. In a plane, a plane-iron, a cap-screw for holding said plane-iron in position, an adjusting-nut, a screw therefor, said screw engaging said cap-screw, substantially as described.

3. In a plane, a plane-iron, a cap-screw for holding said plane-iron in position, a portion of the thread on said cap-screw being turned down, a separate screw engaging the turned-down portion of said cap-screw, and an adjusting-nut mounted upon said separate screw, and means coacting with said adjusting-nut for shifting the position of the plane-iron without disturbing the adjustment of the cap-screw.

4. In a plane, a holding-screw E set into the frog B, an adjusting-nut working on a screw H, said screw engaging said holder to lock it in position, substantially as described.

Signed at New Britain, Connecticut, this 5th day of December, 1901.

ALIX W. STANLEY.
HENRY S. WALTER.

Witnesses:
CHAS. B. STANLEY,
ROBT. N. PECK.

No. 685,411 – Carpenter’s Router (Albert F. Schade) (1901)

[paiddownloads id=”558″]685411

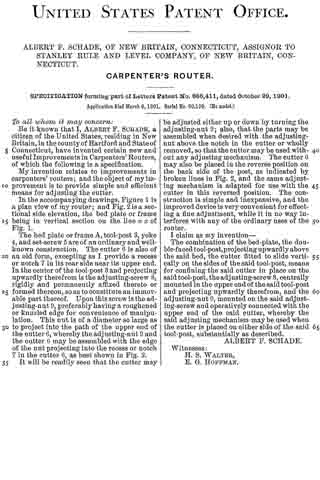

UNITED STATES PATENT OFFICE.

_________________

ALBERT F. SCHADE, OF NEW BRITAIN, CONNECTICUT, ASSIGNOR TO
STANLEY RULE AND LEVEL COMPANY, OF NEW BRITAIN, CONNECTICUT.

CARPENTER’S ROUTER.

_________________

SPECIFICATION forming part of Letters Patent No. 685,411, dated October 29, 1901.
Application filed March 6, 1901. Serial No. 50,130. (No model.)

_________________

To all whom it may concern:

Be it known that I, ALBERT F. SCHADE, a citizen of the United States, residing in New Britain, in the county of Hartford and State of Connecticut, have invented certain new and useful Improvements in Carpenters’ Routers, of which the following is a specification.

My invention relates to improvements in carpenters’ routers; and the object of my improvement is to provide simple and efficient means for adjusting the cutter.

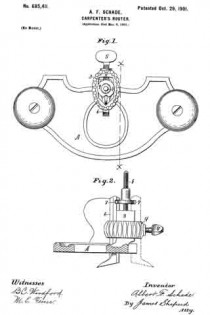

In the accompanying drawings, Figure 1 is a plan view of my router; and Fig. 2 is a sectional side elevation, the bed plate or frame being in vertical section on the line x x of Fig. 1.

The bed plate or frame A, tool-post 3, yoke 4, and set-screw 5 are of an ordinary and well-known construction. The cutter 6 is also of an old form, excepting as I provide a recess or notch 7 in its rear side near its upper end. In the center of the tool-post 3 and projecting upwardly therefrom is the adjusting-screw 8, rigidly and permanently affixed thereto or formed thereon, so as to constitute an immovable part thereof. Upon this screw is the adjusting-nut 9, preferably having a roughened or knurled edge for convenience of manipulation. This nut is of a diameter so large as to project into the path of the upper end of the cutter 6, whereby the adjusting-nut 9 and the cutter 6 may be assembled with the edge of the nut projecting into the recess or notch 7 in the cutter 6, as best shown in Fig. 2.

It will be readily seen that the cutter may be adjusted either up or down by turning the adjusting-nut 9; also, that the parts may be assembled when desired with the adjusting-nut above the notch in the cutter or wholly removed, so that the cutter may be used without any adjusting mechanism. The cutter 6 may also be placed in the reverse position on the back side of the post, as indicated by broken lines in Fig. 2, and the same adjusting mechanism is adapted for use with the cutter in this reversed position. The construction is simple and inexpensive, and the improved device is very convenient for effecting a fine adjustment, while it in no way interferes with any of the ordinary uses of the router.

I claim as my invention —

The combination of the bed-plate, the double-faced tool-post, projecting upwardly above the said bed, the cutter fitted to slide vertically cn the sides of the said tool-post, means for confining the said cutter in place on the said tool-post, the adjusting-screw 8, centrally mounted in the upper end of the said tool-post and projecting upwardly therefrom, and the adjusting-nut 9, mounted on the said adjusting-screw and operatively connected with the upper end of the said cutter, whereby the said adjusting mechanism may be used when the cutter is placed on either side of the said tool-post, substantially as described.

ALBERT F. SCHADE.

Witnesses:
H. S. WALTER,
E. G. HOFFMAN.

No. 678,309 – Fence-Support For Carpenters’ Plows (Justus A. Traut) (1901)

[paiddownloads id=”552″]678309

UNITED STATES PATENT OFFICE.

_________________

JUSTUS A. TRAUT, OF NEW BRITAIN, CONNECTICUT, ASSIGNOR TO
STANLEY RULE & LEVEL COMPANY, OF SAME PLACE.

FENCE-SUPPORT FOR CARPENTERS’ PLOWS, &c.

_________________

SPECIFICATION forming part of Letters Patent No. 678,309, dated July 9, 1901.
Application filed Mar 6, 1901. Serial No. 50,015. (No model.)

_________________

To all whom it may concern:

Be it known that I, JUSTUS A. TRAUT, a citizen of the United States, residing in New Britain, in the county of Hartford and State of Connecticut, have invented certain new and useful Improvements in Fence-Supports for Carpenters’ Plows, &c., of which the following is a specification.

My invention relates to improvements in fence-supports for carpenters’ plows, beading and molding tools, etc.; and the object of my improvement is to furnish a support for the fence to assist the user in holding the tool in proper position relatively to the surface of the work.

In the accompanying drawings, Figure 1 is a plan view of a combination beading and molding tool, plow, &c., with my fence-support applied thereto. Fig. 2 is an end view of the same; and Fig. 3 is a sectional side elevation of a portion of the same, the plane of section being indicated by the line x x, Fig. 1.

A designates the stock or main portion of the tool, having two laterally projecting fence-rods 4 4, upon which the fence 5 is supported and adjustably held in position thereon by means of the set-screws 6. The said stock also has secured therein the beading-tool 7. These parts are all old and well known, and therefore any further description thereof is deemed unnecessary. It is also apparent that the detail construction of the minor parts is immaterial to the present invention, and any other known tool-stock having laterally-extended fence-rods and a fence supported thereon may be substituted as a known equivalent for the said stock and its minor parts.

An expert workman by proper effort can and does keep the tool in such a position when working that the fence-rods will be parallel to the surface of the wood operated upon; but in order to enable him to do so with greater ease than heretofore and also to better enable one of less skill in use of the tool to hold the tool in proper level position I employ the fence-support 8. Although I have in accordance with the usual phrase entitled my invention as an “Improvement in fence-supports for plows, &c.,” I do not thereby wish to imply that a fence-support of any kind for such tools was ever before known or used.

The preferred form of my fence-support is that of a cam or snail-shaped device having a perforated hub or socket 9 of a size to fit one of the fence-rods 4, preferably the forward one, so that it may swing or partially turn thereon to vary the height of its under face relatively to the fence and also that it may slide on the said rod for changing its position laterally whenever the fence is adjusted laterally on the said rod. I provide the said hub or socket 9 with a set-screw 10 for holding the support in the desired adjusted position.

The operator may set the support at first so as to bring its lowest and gaging face as much above the lower end of the beading or cutting tool as the depth of the cut to be made, and thus insure the proper position of the tool at the nnish of the beading or other work, or he may first set the support with its lower edge at about the same height as the end of the tool and then change the support by adjusting its face downwardly as the work progresses. In case the support is not wanted it can readily be wholly removed, leaving the tool in its original position.

While the snail or cam form of support herein shown is the preferred one as the most convenient construction for perfecting the desired adjustments, this particular form is not always necessary, as it is only essential that the device, whatever it may be, shall be capable of lateral adjustment on the fence-rods and also of vertical adjustment of its supporting-face relatively to the said rod.

I claim as my invention —

The herein-described fence-support for carpenters’ tools of the class employing fence-rods and a fence, the said support consisting of a cam-shaped device having a socketed hub fitted to one of the fence-rods, substantially as described.

JUSTUS A. TRAUT.

Witnesses:
H. S. WALTER,
ROBT. N. PECK.

No. 668,299 – Spokeshave (Justus A. Traut) (1901)

[paiddownloads id=”551″]668299

UNITED STATES PATENT OFFICE.

_________________

JUSTUS A. TRAUT, OF NEW BRITAIN, CONNECTICUT.

SPOKESHAVE.

_________________

SPECIFICATION forming part of Letters Patent No. 668,299, dated February 19, 1901.
Application filed October 29, 1900. Serial No. 34,012. (No model.)

_________________

To all whom it may concern:

Be it known that I, JUSTUS A. TRAUT, a citizen of the United States, residing in New Britain, in the county of Hartford and State of Connecticut, have invented certain new and useful Improvements in Spokeshaves, of which the following is a specification.

This invention relates to spokeshaves, and has for one object the provision of an improved tool which may be employed on various varieties of wood with good results and one in which the knife and the guard or throat-gage are adjustable in planes at right angles to each other; the back of the guard being formed with a plane face constituting a wall of the throat for the reception of the shavings, whereby the straight edge of said guard opposed to the knife may when injured or blunted be readily renewed by simply grinding said face.

A further object of the invention is the provision within the stock of the spokeshave of a chamber for the reception of shavings, the upper wall of said chamber being curved outwardly to facilitate the discharge of said shavings.

A further object of the invention is the provision, in connection with a spokeshave, of a guard or throat-gage, the working surface of which is convex both transversely and longitudinally.

In the accompanying drawings, Figure 1 is a plan view of my improved spokeshave, part of one of the handles being broken away. Fig. 2 is a side elevation, partially in section. Figs. 3 and 3a are transverse sections on line into of Figs. 1 and 2, showing different adjustments of the guard or throat-gage. Fig. 4 is a perspective view of the knife or cutter. Fig. 5 is a perspective view of the guard, and Fig. 6 is a perspective view of one of the bolts for adjustably securing the knife in position.

Similar characters designate corresponding parts throughout the several views.

Referring to the drawings, the numeral 5 designates the stock of my improved spoke-shave, having the usual handles 5′ 52 and provided with a chamber 6 (the wall 6′ of which is curved outward for a purpose hereinafter described) and with a forward straight portion 62.

Formed in the stock at each end of the chamber 6 are grooves 7, having rabbeted portions 7′, constituting guideways for the reception of flanges 8 on the ends of a knife or cutter 9, which is preferably of the “razor-blade” type and is slightly curved longitudinally, and fitted in said grooves 7 are the flat oblong heads 10′ of bolts 10, the threaded shanks of which pass through perforations in the stock and carry thumb-nuts 12, by turning which the heads 10′ may either be forced tightly against the flanges 8 of the cutter or released therefrom to permit said cutter to be adjusted, as desired. Cooperating with this cutter is a guard or throat-gage 13, slotted at 13′ for the reception of screws 14, which enter the stock, in virtue of which construction the guard may be adjusted transversely of the cutter to vary the dimensions of the throat in which the shavings enter between said parts.
It will be observed by reference to Figs. 3 and 3a that this guard is provided with a plane back 132, which terminates in a straight edge 133, and when this straight edge is blunted or otherwise injured by wear, as frequently happens, it can readily be restored by removing the guard and grinding the flat face 132, after which it can be replaced with said face in engagement with the corresponding flat face 62 of the stock. On its lower or grinding surface the guard is made convex both longitudinally and transversely, as at 15, and can therefore much more readily be applied to rounded surfaces of the work. The face 15, which extends outward from the edge 133, is joined to the back 132 by the curved surface, which at its upper portion becomes nearly or quite parallel to the back, forming a body of convenient thickness in which to locate the slots 13′.

By reference to Figs. 3 and 3a it will be seen that the knife 9 and guard 13 may be so adjusted with relation to each other that the cutting edge of the knife will be brought into line with and almost touch the straight edge of the guard, whereby a very fine shaving may be removed from the work, if desired.
This is especially important when cutting hard wood or across the grain and obviates to a large extent the danger of splitting the wood or of tearing out a splinter therefrom — accidents of frequent occurrence with the old styles of spokeshaves, in which the knife overlaps a beveled edge on the guard.

As is well known, chips or shavings entering the mouth between the guard and knife tend to curl or assume a helical form, and to aid them in this action they are caused to impinge against the curved wall 6’ of the chamber 6 and are by said wall guided and defiected toward the exterior of the stock.

By my improved construction it will be seen that the guard may be so adjusted that the edge of the knife may be brought into line with the straight edge 133 or caused slightly to overlap the same, if desired, thereby enabling the tool to be employed on various kinds of woods, either hard or soft, at pleasure, for, as is obvious, the height of the knife above the guide-surface and also the position of the cutting edge may be regulated with nicety to obtain a throat of the desired width.

As will be observed, the flat oblong heads 10′ of the bolts 10 extend equally on each side of said bolts, and as said heads snugly fill the grooves 7 of the stock the bolts are thus interchangeable and reversible, so that the parts may be disassembled and reassembled regardless of their original positions. Furthermore, the top surfaces of the heads of these bolts and the bearing-surface of the guard or throat-gage are flush with each other, so as to form a smooth working face for the tool.

Preferably the stock and its handles are formed of metal in an integral casting, although the invention is not limited in this respect.

My invention is not limited to the precise details illustrated and described, and modifications may be made in the shape of the parts without departure therefrom.

Having thus described my invention, what I claim is —

1. In a spokeshave, the combination with a chambered stock of a cutter secured in said stock; and a guard or throat-gage cooperating with said cutter and having a working face curved in two directions and a plane back adjacent to the curved surface, said guard being adjustable to bring the working surface of said gage substantially to a position in line with the edge of the cutter.

2. In a spokeshave, the combination, with a stock and its handles, said stock having a chamber with an outwardly-curved wall and also having grooves and guideways at the ends of said chamber, of a longitudinally-curved cutter having flanges fitted in the ways of said stock; bolts having heads in engagement with said flanges; a guard or throat-gage having a straight back portion adjustably secured to the forward wall of the stock, the working surface of said guard or throat-gage projecting from said back portion and being curved both longitudinally and transversely, and said gage being adjustable on the stock to bring its working surface substantially into line with the edge of the cutter, substantially as and for the purpose specified.

JUSTUS A. TRAUT.

Witnesses:
ROBT. N. PECK,
M. G. PORTER.

No. 645,220 – Bench-Plane (Justus A. Traut) (1900)

[paiddownloads id=”545″]645220

UNITED STATES PATENT OFFICE.

_________________

JUSTUS A. TRAUT, OF NEW BRITAIN , CONNECTICUT.

BENCH-PLANE.

_________________

SPECIFICATION forming part of Letters Patent No. 645,220, dated March 13, 1900.
Application filed December 10, 1897. Serial No. 661,391. (No model.)

_________________

To all whom it may concern:

Be it known that I, JUSTUS A. TRAUT, a citizen of the United States, residing in New Britain, in the county of Hartford and State of Connecticut, have invented certain new and useful Improvements in Planes, of which the following is a specification.

This invention relates to planes, and especially to knife-adjusting means therefor; and it has for its main object the provision of an improved tool of this type in which the knife can be set quickly in an adjusted position and held firmly in place without the use of adjusting-levers, the construction being such that all of the parts can be separated and assembled with great rapidity and precision.

My present improvements are designed more particularly for use in connection with planes of that type in which the knife or plane-bit is disposed at a comparatively-small angle with respect to the sole of the plane, thereby leaving but a small space at the rear end or heel of the plane for the knife adjusting and holding devices, and it is of the utmost importance in tools of this kind to provide holding and adjusting means which may be assembled and disassembled readily and operated a minimum distance for the purpose of effecting the proper adjustment of the plane-knife. It is essential, of course, that all of these parts should be so organized that the knife will be held firmly in place when set in any adjusted position, or else the adjustment of the bit might be changed and the proper operation of the tool prevented.

In the plane illustrated in the drawings of this application I have illustrated devices for obtaining two different adjustments of the plane knife or bit — one a rough adjustment, by means of which the knife may be brought quickly approximately to its proper position, and a fine adjustment, which will be effected, preferably, by means of a suitable adjusting-screw.

The device which I employ for obtaining the fine adjustment of the plane-bit constitutes one of the main features of this invention, and I may employ for this purpose an adjusting-screw having two diderent threads thereon, one of which coacts with a suitable member of the plane-bit and the other with the knife or its carrier. In this instance the knife is supported on a slide which will have a supporting-face oblique to the sole of the plane and will be shifted toward and from such sole by means of an adjusting-screw of the kind just described. Preferably the adjusting-screw will have two similar threads of different pitch, one of which will engage a fixed member of the body of the plane and the other of which will engage the slide, the parts being so organized that when the screw is turned it will move in the same direction through both the slide and the supporting member of the plane-bit and will at the same time cause the slide to be shifted toward and from such supporting member in accordance with the direction of movement of the screw.

The screw which I employ will be of two diameters in order that the smaller diameter thereof, which is at the point, may admit of the insertion of the reduced part through a proper threaded opening or fixed nut in the plane-bit; but the threads of the portion of the screw which is of larger diameter engage the corresponding internal threads of the member or fixed nut on the body of the plane. Hence it will be evident that in assembling the parts the reduced end of the screw may be passed through the threaded member of the plane-body and the point of the screw then inserted in the proper threaded opening or fixed nut of the slide, whereupon the screw may be turned into the two parts simultaneously by the turning of two similar threads of different pitch in the same direction, and thus draw the slide toward the supporting member of the plane-body while the screw is advancing through the threaded member or fixed nut of the latter. It will be noticed that this movement of the slide toward the fixed member on the body is due to the fact that the thread at the forward end of the screw is of quicker pitch than that near the head of the screw.

For the purpose of effecting the coarse adjustment of the plane-knife said knife and its support will have coacting holding members, one of the parts having a single holding member and the other a series, although each of the members of said series is adapted to engage said single holding member, so as to lock the plane-knife roughly in any desired position with respect to the throat of the plane. Usually the knife-support, which in this case will be the slide, will have a stop or rib projecting therefrom and adapted to enter any one of a longitudinal series of recesses in the plane-bit, these recesses being preferably in the form of parallel transverse grooves in the under side of the knife. It will be clear that these coacting holding means will permit a rough adjustment of the knife approximately in the desired position and that the fine adjustment may be effected afterward by means of the screw. Moreover, when the knife has such a row of recesses or grooves therein as that just described it will be apparent that the knife may be used in connection with planes of several different sizes, which is a matter of considerable importance.

In the drawings accompanying and forming part of this specification, Figure 1 is a sectional side elevation of a plane constructed in accordance with my present improvements. Fig. 2 is a transverse section of the plane-body and the slide, the section being taken in the line 2 2, Fig. 1, looking toward the heel of the plane. Fig. 3 is a perspective view of the knife supporting and adjusting slide, and Fig. 4 is a perspective view of the rear end or heel of the plane-body and illustrates the supporting member or guide on which the knife-adjusting slide is mounted.

Similar characters designate like parts in all the figures of the drawings.

As to many of the features thereof the body of the plane illustrated herein is similar to plane-bodies as ordinarily constructed. In this case the plane-body (designated in a general way by B) embodies as its essential features a flat base or sole s, side walls 2 2, and a support or guide, such as g, on which the slide will be carried. This guide may be of any suitable construction and is substantially U-shaped in this case in horizontal section and has a pair of oblique supporting-faces 3 3, on which the slide may move. At the inner side of the two side walls 4 4 of the guide I have illustrated a pair of channels or grooves 5 5, forming, with the oblique faces 3 3,ways for locating and guiding the slide.

As before stated, the knife or plane bit is intended to be supported on a slide shiftable by means of a feed-screw in order to obtain the fine adjustment of the knife, and this slide is indicated by S. It may be of any suitable construction, but in this case will have a pair of channels or grooves 6 6 in the under side of the main or fiat portion 7 thereof, these grooves being parallel to each other and so disposed as to cooperate with the guide-faces 3 3 and the grooves 5 5, as will be evident by referring to Fig. 2. It will be clear that this slide moves on the ways of the guide g toward and from the sole of the plane in a path oblique to such sole, this method of mounting the slide being well understood.

For the purpose of shifting the slide in the manner described I have illustrated at f 2 feed-screw of the type which has been hereinbefore referred to, the body portion of this screw being of two diameters and one portion having right-hand threads of one pitch and the other having corresponding threads of a different pitch. In this case it will be clear that the threads 10 are of a relatively-slow pitch, while the threads 12 are of somewhat-quicker pitch, and hence will be capable of shifting the slide with which they codperate so as to move said slide toward and from the back wall 13 of the guide g, in which back wall the feed-screw is mounted so as to lie obliquely to the sole s. The wall 13 of the guide is bored and screw-threaded to correspond with the threads 10 and form a fixed nut, in which the larger portion of the screw may work, while the slide S will have in this case a fixed nut in the form of a depending lug 14, internally screw-threaded to cooperate with the threads 12 of the point of the screw f. When the parts are properly fitted, the slide S may be shifted longitudinally of the slide-supporting faces of the guide, but will be held down and will be prevented from rising by reason of its connection with the screw f, which is braced firmly, and will be supported by the guide in such a manner that it will have no movement except in the direction of its length.

In assembling the parts the feed-screw, which will usually have a milled head, such as 15, of relatively-large diameter for the purpose of turning the screw freely, will be inserted through the opening 13′ until the threads 10 come into engagement with the threads of such opening, and the point of the screw will then be inserted into the opening 14′ in the fixed nut of the slide from the rear side thereof when the slide is in its extreme forward position on the ways of the guide. When the screw is turned to the right, the threads 10 will turn forward and the feed-screw will gradually pass through the opening 13’ toward the throat of the plane, and at the same time the threads 12 will turn forward in the fixed lug 14 of the slide and by reason of their quicker pitch will cause the slide to shift toward the wall 13. It will be seen that by employing a feed-screw of this type the assembling of the slide, the feed-screw, and the plane-body will be effected with a minimum movement of the slide on the guide g, since the screw advances into both of the fixed nuts in the same direction and does not, as is the case with a right and left hand screw, have to be inserted into one side of one nut and into the other side of the other nut. Hence the slide can be put in place approximately in its proper position, and its screw then turned into both of the fixed nuts a relatively-slight distance to position properly the knife to be supported and adjusted by the slide. This form of feed-screw and cooperating fixed nuts and the manner of assembling the parts described are of distinct utility, especially in those planes of the type illustrated herein having their knives set at a very slight angle to the sole, leaving but a small amount of available space between the rear end of the knife and the heel of the plane. By employing the devices shown herein this space is utilized to the best advantage, and all of the parts are of ample size and strength to operate properly and hold the bit firmly.

The plane knife or bit is indicated by k and may be of any suitably type. This knife and the slide S are intended to have coacting holding members, such as those hereinbefore described, for effecting the coarse adjustment of the bit. The holding member of the slide is indicated at 16 and is in the form of a stop or rib rising from a central wall or larger rib 17 of the slide S, the face 17′ of this wall or rib constituting the supporting-face on which the upper or rear end of the knife is carried. The other holding members, which cooperate with the stop or rib 16, are carried by the knife k and in the construction shown are in the form of a series of recesses or parallel transverse grooves 18 in the under side of said knife, these grooves forming between them transverse stops or ribs substantially similar to the ribs 16, the groove 18 being just large enough to receive the rib 16 and leave no extra space.

It will be clear that after the slide and its feed-screw are in place on the plane-body a rough adjustment of the knife may be obtained by simply placing the proper groove 18 over the stop 16 and placing the knife down upon the supporting-face 17′ of the guide. After this coarse adjustment is obtained the knife should of course be clamped firmly to the slide S, after which the adjusting-screw f may be turned to effect the fine adjustment of the knife.

Any suitable clamping means may be employed for holding the knife in place. That shown herein is indicated in a general way only and will preferably be of the type fully shown and described in Letters Patent No. 591,663, dated October 12, 1897. This main clamping device is in the form of a cam-lever (indicated by 20) carried by a knife clamp or plate c of ordinary construction, this latter being mounted at its forward end on a fixed part, such as 22, of the plane-body by means of a screw-and-slot connection, such as 23, of the usual type. This screw 23 serves to prevent sidewise movement of the forward end of the knife, while the cam-lever by raising the rear end of the knife-clamp c wedges the rear end of the clamp and the knife together and also forces the forward end of the clamp against the knife near the throat of the plane to hold the parts firmly in place.

After the rough adjustment of the bit has been obtained and the latter has been clamped in place by the means just described the screw f will be turned to obtain the iine adjustment of the knife, and it will be noticed that during this last-mentioned adjustment the part which operates directly to effect such adjustment of the bit is not only movable, but supports the knife directly and guides it, thus rendering unnecessary the employment of other or separate means for such purpose.

Having described my invention, I claim —

1. In a plane, the combination, with a plane-body comprising a sole and a pair of side walls, said sole having rigid with the inner face thereof a U -shaped slide-supporting guide the side walls of which extend in parallelism with the body side walls and have their upper edges inclined and recessed to form ways, and connected at their outer ends by an end wall having an internally-threaded opening; a slide mounted on said guide and recessed at its edges to cooperate with said ways, and provided at its under side with an internally-threaded depending lug working intermediate said side walls and on its upper side with a longitudinally-extending centrally-located rib having a transversely-extending rib or projection; a knife adapted to be clamped on said rib and provided with a plurality of transversely-extending recesses for the reception of said transverse rib to locate the knife in position; an adjusting-screw of different diameters working in said guide and slide and having two sets of similar threads of different pitch; and means for clamping the knife in position on said slide.

2. In a plane, the combination, with a plane-body comprising a sole and a pair of side walls, said sole having rigid with the inner face thereof a slide-supporting guide the side walls of which extend in parallelism with the body side walls and have their upper edges inclined, and which walls support at their outer ends a member having an internally-threaded opening; a slide mounted on said guide and provided at its under side with an internally-threaded depending lug working intermediate said side walls and on its upper side with a longitudinally-extending centrally-located rib; a knife adapted to be clamped on said rib, said knife and rib having, one a projection, and the other recesses cooperating with said projection to locate said knife in position; an adjusting-screw of different diameters working in said guide and slide and having two sets of similar threads of diderent pitch; and means for clamping the knife in position on said slide.

JUSTUS A. TRAUT.

Witnesses:
H. S. WALTER,
W. J. WORAM.

No. 591,663 – Plane (Andrew Turnbull) (1897)

[paiddownloads id=”533″]591663

UNITED STATES PATENT OFFICE.

_________________

ANDREW TURNBULL, OF NEW BRITAIN, CONNECTICUT,
ASSIGNOR TO JUSTUS A. TRAUT, OF SAME PLACE.

PLANE.

_________________

SPECIFICATION forming part of Letters Patent No. 591,663, dated October 12, 1897.
Application filed June 30, 1897. Serial No. 642,947. (No model.)

_________________

To all whom it may concern:

Be it known that I, ANDREW TURNBULL, a citizen of the United States, residing in New Britain, in the county of Hartford and State of Connecticut, have invented certain new and useful Improvements in Planes, of which the following is a specification.

This invention relates to planes; and the object thereof is to provide a simple and efficient means for holding the cutter-clamp firmly in engagement with the cutter; and it consists, essentially, of a cam-lever supported by the clamp, a locker preferably separate from and actuated by the cam-lever, and means on the clamp to cause the lever to approach and to recede from the clamp when the lever is turned.

In the form of the invention illustrated the locker alluded to consists of a pivot for the cam-lever loosely extending through an opening in the clamp and headed at its lower end, the lever having a cam portion adapted to be engaged by means on the clamp when the lever is turned in one direction, so that the lever will be caused to approach the cutter and thereby force the head of the pivot tightly against the cutter to hold the same.

In the drawings accompanying and forming part of this specification, Figure 1 is a plan view of a plane embodying my present improvements. Fig. 2 is a longitudinal central section of the same. Fig. 3 is a longitudinal central section of the cutter-clamp. Fig. 4 is a transverse section taken in line x x, Fig. 3. Fig. 5 is a bottom view of a portion of the cutter-clamp. Fig. 6 is a plan of the cam-lever, and Fig. 7 is a side elevation of the same.

Similar characters designate like parts in all the figures of the drawings.

The body of the plane is designated in a general way by B, and it consists of the usual base or sole 2, having the transverse mouth 3, through which the cutting edge of the plane-iron can pass, and the longitudinal side walls 5.

The cutter or plane-iron C, which is supported in any usual manner, as shown in Fig. 2, and the clamp-lever D may be of ordinary construction. The cutter C is supported against the inclined face 7 on the inside of the sole 2, said cutter, also bearing intermediate its opposite ends against the obliquely-disposed slide 12, working in a slide-way 13 of the boss or projection 14 on the sole 2. The boss or projection 14 has a longitudinally-threaded opening 15 to receive the threaded end 16 of the screw or spindle 17 , having at its outer end the disk or wheel 13, by which the screw 17 can be turned into and out of its seat, said screw having a peripheral groove 19 to receive a projection 20 on the slide 12, the other end of the slide being furnished with an oppositely-extending projection 21, adapted to be seated in one of the parallel notches 22, transversely formed in the under side of the cutter or plane-iron C, so that by turning the screw or spindle 17, through the medium of the disk or wheel 18, the cutter C can be moved back and forth, as occasion demands.

The foregoing description relates to a common form of smooth-plane to which my present improvements are adapted, although it is obvious that they may be applied to various sorts of planes. The clamp-lever D is held in place longitudinally by a screw 23, seated in a threaded aperture in the boss 10, said screw extending through an elongated or keyhole slot 24; near the forward end of the clamp.

The clamp D carries or supports a cam-lever L, consisting of a disk portion 30, centrally through which is passed the pivot-pin 31, constituting a locker, and a forwardly-extending curved operating-arm 32, passing through the segmental or curved slot 33 in the clamp, said operating-arm having a thumb-piece 34, to which pressure can be applied to turn the cam-lever L, so that the disk or working portion 30 of the lever will be caused to approach or recede from the cutter or plane-iron C in accordance with the direction in which the arm 32 is moved.

The pivot-pin 31 of the cam-lever loosely passes transversely through the clamp, it extending through the opening 35 in the bridge-piece or arch 36, which is on and is located above the normal plane of said clamp. The pivot-pin, which constitutes a cutter-locker, is headed or shouldered at its lower end, as at 37, and the disk or cam portion of the lever L, when the latter approaches the cutter, will act against the head 37 of the pivot-pin to force the same firmly against the cutter. The upper end of the pivot-pin is headed, as at 37’, to prevent it from dropping on the removal of the clamp.

For the purpose of obtaining the necessary motion of the lever toward the cutter the clamp is preferably provided with means adapted to engage a cam portion on the lever, as will now appear. The bridge portion 36 is furnished with the rounded projections 38 and 39, extending oppositely from the pivot-opening 35, and adapted to cooperate with the cam portions on the disk 30 of the cam-lever L. The upper face of the disk 30 is intersected by the radial cam-recesses 40 and 41 of differential depth, thereby to form the cam-faces 42 and 43, cooperative, respectively, with the projections 38 and 39.

When the parts are to be assembled, the clamping-screw 23 is passed through the wide portion of the slot and the clamp slid forward until the screw is in the narrow part of the slot 24, as shown in Fig. 1, the operating-arm 32 of the cam-lever during this time being in a position substantially agreeing with that shown by the dotted lines in said figure, at which time the two projections 38 and 39 on the bridge-piece are in line with the deepest portion of the cam-recesses. When the operating-arm 32 is grasped and thrown to the position shown by the full lines in Fig. 1, the cam portions 42 and 43 will be caused to ride against the projections 38 and 39,respectively, so that the disk portion 30 of the lever will be lowered and acting against the head 37 of the pivot-pin 31 will cause said head to bind against the cutter to lock the same firmly in position, the operating-arm of the lever also tightly wedging against the clamp to thereby prevent the retraction of the lever by ordinary jars. It will be observed that the operating-arm 32 of the cam-lever L, which extends forward and passes through the longitudinal slot 33 in the clamp, bears against the plate portion 33′ of the clamp, as indicated in Fig. 2, so that the clamp or plate portion thereof acts as a support for said operating-arm and materially decreases its liability of breakage.

Having described my invention, I claim —

1. A plane embodying a cutter; a clamp therefor provided with a bridge-piece or arch located above the normal plane of the clamp, the bridge-piece having a pivot-opening and also having projections on its under face; a lever consisting of a disk portion and an operating-arm passing through a slot in the clamp, the disk portion of the lever having a pivot-opening and a plurality of cam-recesses; and a pivot- pin extending through said pivot-openings and headed at its lower end, the pin being disposed transversely to the cutter, whereby when the lever is turned in a direction to lock the cutter the under face of the disk portion will be carried against the head of the pin to move the latter into locking engagement with said cutter.

2. A plane embodying a cutter; a clamp therefor provided with a bridge-piece having a pivot-opening, the bridge-piece having on its under face oppositely-disposed projections at each side of the pivot-opening, said clamp being also slotted; a lever consisting of a disk portion and an operating-arm extending through the slot in the clamp, the disk portion of the lever having a pivot-opening and a plurality of cam-recesses; and a pivot-pin extending through said pivot-openings and headed at its lower end.

3. A plane embodying a cutter; a clamp therefor having a slot; a cam-lever supported by the clamp, the latter having means to cause the working end of the lever to approach and recede from the clamp on the manipulation of the lever, and the lever being provided with a forwardly-extending arm passing through the slot and bearing against and sustained by the clamp; and a locker for the cutter, operated by said lever.

ANDREW TURNBULL.

Witnesses:
H. C. HINE,
W. A. PRIMM.

No. 591,662 – Plane (Justus A. Traut) (1897)

[paiddownloads id=”532″]591662

UNITED STATES PATENT OFFICE.

_________________

JUSTUS A. TRAUT, OF NEW BRITAIN, CONNECTICUT.

PLANE.

_________________

SPECIFICATION forming part of Letters Patent No. 591,662, dated October 12, 1897.
Application filed July 6, 1897. Serial No. 643,617. (No model.)

_________________

To all whom it may concern:

Be it known that I, JUSTUS A. TRAUT, a citizen of the United States, residing in New Britain, in the county of Hartford and State of Connecticut, have invented certain new and useful Improvements in Planes, of which the following is a specification.

This invention relates to planes, and it comprehends, essentially, a stock or body portion and a mouthpiece bodily adjustable on the stock.

In the form of the invention herein described the stock or body portion of the plane is constructed of wood, and the mouthpiece or plate is made of metal and is bodily adjustable on the stock or body portion in a direction transverse to the line of working movement of the plane, so that the sole of the latter can be dressed down to remove any unevenness in its surface from constant use and so that the mouthpiece or plate can be adjusted to compensate for the variation until its working face is flush with the sole or under surface of the plane-body.

In the drawings accompanying and forming part of this specification, Figure 1 is a plan view of a smooth plane embodying my present improvements. Fig. 2 is a side elevation of the same. Fig. 3 is a plan view of the plane with the cutter and its holding and operating parts removed. Fig. 4 is a plan view of the adjustable mouthpiece. Fig. 5 is a side elevation of the same. Fig. 6 is a longitudinal central section of a fragment of the plane, showing the adjustable mouthpiece therein. Fig. 7 is a longitudinal central section of a plane, representing a modification of the mouthpiece; and Fig. 8 is a longitudinal central section of a fragment of the plane-body illustrated in Fig. 7.

Similar characters designate like parts in all the figures of the drawings.

The stock or body of the plane represented in the fhawings is designated by B, and it is constructed, preferably, of wood. A metallic frame for carrying the usual cutter or plane-iron is designated by F, and is fastened near its opposite ends to the upper face of the stock B. The cutter or plane-iron is designated by C, and its clamping-lever by C’, and the operating mechanism for the cutter is designated by M, and as these parts are mounted in the usual manner in the loop or open portion 2 of the frame and are of common construction a detailed description thereof is deemed unnecessary.

My improved plane comprehends a stock or body portion and a mouthpiece bodily adjustable thereon, said mouthpiece consisting in the present instance of a plate adjustable in a direction transverse to the line of working movement of the plane.

The mouthpiece of the plane is designated by P, and it is represented consisting of a rectangular metallic plate set within a mortise or cavity 3, formed in the bottom or sole of the stock or body portion B. The mouthpiece or plate P has near its rear end the elongated mouth or slot 4, through which the cutter or plane-iron C may extend. The front and rear ends of the mouthpiece are beveled or inclined and fit against the similarly beveled or inclined walls 7 and 8 of the mortise, the latter being of a depth exceeding that of the mouthpiece P, as represented, respectively, in Figs. 2 and 6.

By reason of the construction just described the mouthpiece P can be set farther into the mortise 3 and its under face maintained flush with the sole or bottom surface 9 of the plane-body.

On an inspection of Fig. 6 it will be observed that the bevels or inclinations 5 and 6 on the front and rear ends, respectively, of the mouthpiece P correspond substantially with the inclination of the cutter or plane-iron C, so that if said mouthpiece be set in to a greater or less depth in the plane body or stock it will be adjusted in the direction of the length of the plane-iron and also of the stock or body portion, so as to maintain the proper working relation between the lower or cutting end of the said plane-iron and the mouth-piece.

The mouthpiece P is preferably held to the body portion by a screw passing through the body or stock B, the lower threaded end of which engages the internal threads 13 on the boss or hub 14, near the forward end of the mouthpiece. The screw extends through the slot or hole 15 in the frame F and the opening or aperture 16 in the body or stock B, a washer 17, serving its usual purpose, being placed between the screw-head 18 and the frame F. The opening 16 in the body portion B, which communicates with the mortise 3, is of different sizes or diameters, the wider or larger portion 19 being adapted to receive the internally-threaded boss 14 of the mouthpiece and its diameter exceeding that of the boss, so that as the mouthpiece is moved up or down in its mortise or recess in the body portion the holding-screw 10 can be properly seated in the boss without affecting the proper relation of the several parts, as will be apparent. For this purpose also the diameters of the reduced or narrower portion 20 of the aperature 16 and of the slot 15 in the cutter-carrying frame exceed that of the screw, so that the latter can be moved forward or backward in accordance with the adjustment of the mouthpiece.

It will be remembered that the mortise or recess 3 is preferably made deeper than the mouthpiece or plate P, and the mouthpiece or plate is provided with adjusting means adapted to bear against the roof of the mortise, said adjusting means consisting of a plurality of screws, as 21, disposed on the upper face of the mouthpiece, as shown in Fig. 4. The upper or slotted ends of the screws are adapted to bear against the roof of the mortise 3, so that the mouthpiece can be nicely fitted in its seat with its lower face true or flush with the sole of the plane.

In Fig. 2 the mouthpiece and the several cooperating parts are shown assembled in the plane-body. Let it be assumed that it is necessary to dress off the sole of the plane-body. In this event the plate-holding screw 10 is removed, so that the mouthpiece or plate P can be taken from its mortise or recess 3. The sole of the plane is then resurfaced. The several adjusting-screws are then driven slightly farther in their seats in the mouthpiece and the latter inserted in the mortise. If the lower face of the mouthpiece is flush with the sole, the holding-screw 10 will be inserted in place; if not, said mouthpice will be removed and the adjusting-screws will be driven farther into their seats, and this manipulation of the adjusting-screws will continue until the under face of the mouthpiece is alined with the sole; but it will be evident that it is but the work of a moment to properly adjust the mouthpiece. When the same is adjusted, the holding-screw 10 is placed in position.

In Figs. 7 and 8 I have illustrated a modified form of the invention wherein the adjusting-screws are dispensed with, the construction otherwise being similar to the preferred form. When it is desired to adjust the mouthpiece shown in Figs. 7 and 8, it is simply necessary to cut away the upper surface or roof of the mortise to correspond with the dressing off of the sole.

It will be observed on an inspection of Figs. 2 and 7 that the mouthpiece P constitutes also a clamping or resistance plate for assisting in holding the cutter-carrying frame in place on the stock, and the holding-screw 10, which is seated in said mouthpiece, also constitutes a part of the frame-securing means, as has been described.

By means of my present improvements the plane or under surface thereof may be readily repaired from time to time by the user, so as to maintain the implement in perfect working order for a long period of time, hence materially prolonging its life and reducing the cost of the tool proportionately to the amount of work done. At the same time the mouthpiece of the wood body being adjustable, as hereinbefore set forth, said mouthpiece is maintained in proper form relatively to the stock and to the cutter regardless of the extent to which the bottom or the sole of the plane may be cut away in resurfacing.

Having described my invention, I claim —

1. A plane comprising a stock having a mortise in its under side, the front and rear walls of which are beveled, said stock also having an aperture extending therefrom and communicating with the mortise; a mouthpiece having its ends beveled to conform to the walls of the mortise; screws carried by the mouthpiece and bearing against the roof of the mortise; and a holding-screw pressing through and of less diameter than the aperture in the stock and having its lower end in threaded engagement with the mouthpiece.

2. A plane comprising a stock having a mortise the front and rear walls of which are beveled, and also having an aperture extending entirely through the stock and communicating with the mortise, said aperture being of different sizes; a mouthpiece bodily adjustable in, and of less depth than, the mortise and furnished with a threaded boss or stud of a less diameter than the wider portion of said aperture, said mouthpiece having its opposite ends beveled to correspond with the beveled surface of the front and rear walls of the mortise; a series of screws threaded in the mouthpiece, the heads of the screws bearing against the roof of the mortise; and a holding-screw passing through the aperture in the stock from the upper side, and having its lower threaded end in engagement with said boss, the screw being of a less diameter than the narrower portion of the aperture through which it passes.

JUSTUS A. TRAUT.

Witnesses:
H. S. WALTER,
W. J. WORAM.

No. 556,114 – Core-Box Plane (Justus A. Traut) (1896)

[paiddownloads id=”525″]556114

UNITED STATES PATENT OFFICE.

_________________

JUSTUS A. TRAUT, OF NEW BRITAIN, CONNECTICUT.

CORE-BOX PLANE.

_________________

SPECIFICATION forming part of Letters Patent No. 556,114, dated March 10, 1896.
Application filed September 18, 1895. Serial No. 562,829. (No model.)

_________________

To all whom it may concern:

Be it known that I, JUSTUS A. TRAUT, a citizen of the United States, residing at New Britain, in the county of Hartford and State of Connecticut, have invented certain new and useful Improvements in Core-Box Planes, of which the following is a specification.

This invention relates to planes adapted for planing concaved surfaces of different areas, and more particularly designated as a “core-box” plane; and the object of the invention is to provide a plane having supplemental side extension-plates, whereby each or both sides of the stock can be extended to different widths and whereby the plane is rendered serviceable for finishing and planing core-boxes of a wide range of sizes, and also for use in connection with other concaved surfaces.

A further object of the invention is to provide a fastening means whereby the supplemental side extension-plates can be reversed and interchanged, or whereby they can all be secured to one side of the stock, and which fastening means is simple and easily and quickly manipulated.

In the accompanying drawings, forming part of this specification, Figure 1 is a top view of a core-box plane constructed in accordance with this invention. Fig. 2 is an interior side view of one side of the plane, the other side thereof being removed and showing the juncture of the stock in section. Fig. 3 is a transverse sectional view in line a a, Fig. 1, looking toward the right hand thereof. Fig. 4 is an end view of the plane and shows same in position for planing one-half of a the core-box of comparatively-small size, and also shows the supplemental plates removed. Fig. 5 is a view similar to Fig. 4, illustrating the plane in use upon one-half of a core-box of larger size and having a supplemental side plate in position on each side of the stock; and Fig. 6 shows the plane in use on one-half of a core-box of comparatively-large size with the supplemental side plates in position on one side of the stock.

Similar characters of reference designate like parts in all the figures of the drawings.

The plane consists, in the preferred form thereof herein shown and described, of a suitable stock or relatively-thin plate 10, preferably constructed to form two diverging side plates 11 and 12, preferably extending at right angles to each other and joined at their inner edges. Adjacent to the juncture of the side plates, and preferably substantially midway of the length thereof, the stock is provided with a mouth or mortise 13, which is preferably shown forming an acute angle, and likewise preferably has its vertex at the point of juncture of the side plates. Adjacent to the mouth 13 on the interior of the side plates and adjacent to the juncture thereof the stock has the usual inclined bed 14 for the plane-iron, formed either integrally therewith or removably secured thereon in any suitable way as desired.

The plane-iron 15, which is shown herein having an acute-angled cutting-edge, is removably and adjustably seated on the bed 14; and secured thereto by the usual fastening and clamping means, which is shown consisting of the clamping plate or wedge 16 and the thumb-screw 17. The plane-iron 15, when in its normal operative position, has its cutting-edge projecting at the desired angle below the mouth of the stock, whereby each side plate of the stock will have one-half of the cutting-edge of the plane-iron extending therein.

Adjacent to the juncture of the diverging side plates 11 and 12 on the interior of the stock a suitable toat or handle 13 is secured in any suitable way and is shown herein clamped by means of a screw 20 to a bed 19, preferably formed integral with the side plates. Adjacent to the forward end of the stock, and likewise on the interior thereof and adjacent to the juncture of the side plates, a suitable knob or hand-rest 21 is likewise secured by means of a screw 22 and bed 23 in substantially a similar way to that of securing the toat 18.

The above-described plane is commonly known as the “core-box” plane and forms no part of my present invention, except in so far as the plane constitutes a basis for the same.

Heretofore in practice when necessary to plane or finish core-boxes of different sizes it has been the usual case to provide a plane sufficiently large to plane the largest size of core-box desired to be constructed, which plane, when used in connection with core-boxes having comparatively-small diameters, is extremely clumsy to use, and when desirable to obviate this disadvantage it has been the usual practice to construct core-box planes of different sizes for work on different sizes of core-boxes, which is not only expensive but a great disadvantage when it is desired to make a number of different sizes of such boxes. In order, therefore, to obviate these disadvantages I have provided, in connection with a core-box plane of any suitable and desired construction, a suitable attachment in the nature of a guide or rest and which guide or rest is adjustable and attachable to either or both sides of the stock, as desired, and in the preferred form thereof herein shown and described preferably consists of a supplemental extension plate or plates adapted to be secured to the stock with one of its edges in parallelism with the free edge of one of the side plates forming the stock by means of a suitable fastening device. In the construction shown two of these supplemental extension-plates are provided and designated in a general way by 25 and 35. These plates may be constructed of any desired thickness and width, but are preferably constructed of about the same width as the side plates forming the stock and of sufficient thickness to permit the outer side face thereof to be in alignment with the outer side face of the adjoining side plate of the stock when the supplemental plates are in position on the stock. These plates are likewise constructed of any suitable material, but preferably of the same material as the stock, which is usually of metal, and each plate is adapted to rest on the free edge of one of the respective stock-plates 11 and 12, with one of its edges in parallelism therewith, or on the free edge of a supplemental side plate 25 or 35. As a means for securing these supplemental extension side plates in position, the side plates 11 and 12 of the stock on the interior thereof are provided with any desired number of socketed brackets 26, preferably formed integral with such side plates, and in the construction shown each side plate of the stock is provided with two of these brackets 26, one near each end thereof. These brackets are provided with clamping devices projecting through the walls and intersecting the sockets thereof at right angles thereto, and in the form shown these clamping devices are in the nature of set-screws 27, working in threaded apertures in the walls of the brackets. Removably secured in each of these socketed brackets is a bolt or bar 23, having a part thereof projecting therefrom in a plane parallel with the plane of inclination of its adjacent stock side plate.

Each supplemental extension side plate has secured thereto by any suitable means, such as by rivets, or integrally formed therewith, if desired, suitable fastening means for the bolts 28, which fastening means is preferably shown herein consisting of brackets 36. These brackets 36 are in the nature of double-socketed brackets, and are provided with bolt openings or sockets 37 adapted to receive the bolts 28, and each extension-plate preferably has the same number of brackets 36 as each stock side plate. The brackets are so disposed, relatively to each supplemental side plate, that the two sockets 37 of each bracket are in alignment with each other and with the socket of the companion bracket 26 on the stock side plates when said supplemental extension-plates are in position relatively to the side plates of the stock, and each bracket has a socket 37 adjacent to each longitudinal edge of the plate and in parallelism with the side face thereof, whereby the plates are interchangeable and reversible. These brackets are provided with clamping devices 33, one adjacent to each socket thereof, substantially similar to the clamping devices of the stock side plates and secured therein in substantially the same way, whereby either edge of a supplemental plate can rest on the free edge of the stock side plate and be secured in such position by the clamping device 38 and bolt or stud 28.

In the use of this improved core-box plane when it is desired to plane or finish a core-box of comparatively-small size the supplemental side extension-plates 25 and 35 are removed and the plane used in the ordinary way. (See Fig. 4.) When, however, a core-box of larger size is to be planed, the supplemental side plates are secured in position, one to each side of the stock, by means of the bolts 28 and clamping devices 27 and adjacent clamping devices 38, (see Fig. 5, for instance,) whereby a concaved surface of comparatively-large area can be planed, the supplemental side entension-plates 25 and 35 forming a rest or guiding means for each side of the plane. When, however, a core-box of very large size is to be planed, one of the supplemental plates, as 25, together with its bolts 28, is removed from one side of the stock and the bolts slipped into the upper sockets 37 of the brackets 36 adjacent to the upper edge of the other side-plate 35, and the side plate 25 then secured in position by means of the clamping devices 38 adjacent to such upper sockets of the plate 35, whereby the supplemental side extension-plates of the plane form a rest or guiding means when the same is used to plane or finish the core-box concavity in a manner similar to that shown. in Fig. 6. Any number of these supplemental plates may be provided with each stock, whereby many different sizes of core-boxes can be finished or planed with one plane. By means of this improved construction of supplemental extension-plates the same are interchangeable with each other, whereby they can be used on either side of the stock and also reversible relatively to the stock-plates — that is to say, either longitudinal edge of each extension-plate can be secured in position contiguous to the longitudinal edges of the stock-plates — whereby one or both sides of the stock can be built up of any desired width in accordance with the number of plates used and the requirements of the plane. Moreover, if it is desired to increase the width of the sides of the plane, when one or more extension-plates are secured on the stock, without attaching an extra plate, the bolts can be made of such length that the supplemental plates can be adjusted relatively to the side plates of the stock or to their adjoining supplemental plates to leave a space between their adjoining edges, whereby the necessity of attaching an extra plate for a slight increase of width is obviated.

By means of my improved plane it will be obvious that when a small core-box is to be finished the plane can be used with the stock simply formed by the two side plates, which side plates, in the construction shown are comparatively light and of very much less width than in the ordinary construction of stock side plates, whereby in the use of the same upon comparatively-small core-boxes the plane is light and easy to handle.

Having thus described my invention, what I claim is —

l. In a plane of the class specified, the combination of a stock constructed of two diverging plates; each of said plates having a pair of socketed brackets; a plurality of removable, interchangeable, and reversible extension-plates, each of said extension-plates having a pair of double-socketed brackets fixed thereto, the two sockets of each bracket being in alignment with each other and with a socketed bracket of one of the stock-plates, and each bracket of an extension-plate having a socket adjacent to each of its edges, whereby the extension-plates are interchangeable with each other and reversible relatively to the stock-plates, and whereby either longitudinal edge of an extension-plate can be secured in position contiguous to a stock-plate; bars or bolts removable with and independently of said extension-plates for securing said plates in position relatively to each other and to one side of the stock, to thereby increase the width of that side of said stock independently of the other side thereof, or to secure one or more of said plates to, and thereby increase the width of, each side of said stock; and fastening devices for securing said bars or bolts in position.

2. In a plane of the class specified, the combination of a stock constructed of two diverging side plates disposed at right angles to each other, and having a mouth at the juncture of said plates; a plane-iron in position adjacent to said mouth, and having its cutting-edge adapted to extend therethrough; each of said stock-plates having a pair of single-socketed brackets; a pair of removable, interchangeable, and reversible extension-plates, each of said extension-plates having a pair of double-socketed brackets fixed thereto, the two sockets of each bracket being in alignment with each other and with a socketed bracket of one of the stock-plates, and each bracket of an extension-plate having a socket adjacent to each of its edges, whereby the plates are interchangeable with each other and reversible relatively to the stock-plates, and whereby either longitudinal edge of an extension-plate can be secured in position contiguous to a stock-plate; bars or bolts removable with and independently of said extension-plates for securing said plates in position relatively to each other and to one side of the stock, to thereby increase the width of that side of said stock independently of the other side thereof, or to secure one or more of said plates to, and thereby increase the width of, each side of said stock; and fastening devices for securing said bars or bolts in position.

JUSTUS A. TRAUT.

Witnesses:
F. N. STANLEY,
H. S. WALTER.
